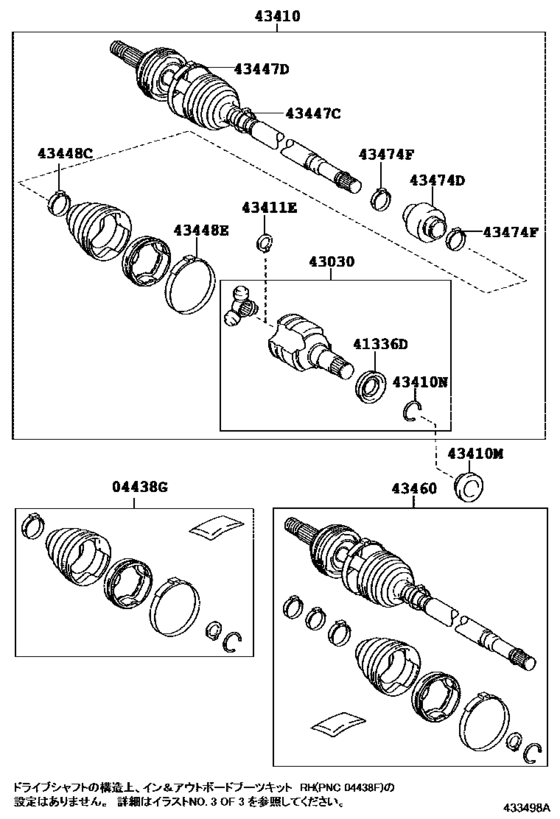

Front Drive Shaft ([07.2015 - ] ﾐｷﾞｶﾞﾜ (1507- )NHP170) Diagram Toyota SIENTA
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- NHP170
- grade
- G
- body
- WG
- ENGINE
- 1NZFXE
- TRANSMISSION
- CVT
- From
- 07.2015
- Seating Capacity
- 06S
- Vehicle Model
- SIENTA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438G
|
04438G
04438-12A00
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[07.2015 - 08.2015] NHP170 |
04438-12A00 |
— | ||
| replacement | |||||
|
04438G
|
04438G
04438-12A01 Boot Kit, Front Drive Shaft Inboard Joint, Rh[07.2015 - 08.2015] NHP170 |
04438-12A01 |
US $58.71 |
||
|
04438G
|
04438G
04438-12A01 Boot Kit, Front Drive Shaft Inboard Joint, Rh[09.2015 -] NHP170 |
04438-12A01 |
US $58.71 |
||
|
41336D
|
41336D
41336-12060 Cover, Front Drive Shaft Dust, Rh[07.2015 -] NHP170 |
41336-12060 |
US $3.20 |
||
|
43030
|
43030
43030-52080 Joint Assy, Front Drive Inboard, Rh[07.2015 -] NHP170 |
43030-52080 |
US $160.16 |
||
|
43410
|
43410
43410-52400 Shaft Assy, Front Drive, Rh[07.2015 -] NHP170 |
43410-52400 |
US $729.40 |
||
|
43410M
|
43410M
90311-35065 Oil Seal, Front Drive Shaft, Rh[07.2015 -] NHP170 |
90311-35065 |
from US $4.32 |
||
|
43410N
|
43410N
90521-27005 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[07.2015 -] NHP170 |
90521-27005 |
from US $1.76 |
||
|
43411E
|
43411E
43425-12070 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[06.2015 -] NCP175,NHP170,NSP17# |
43425-12070 |
US $0.64 |
||
|
43447C
|
43447C
42345-12230 Clamp (For Front Axle Outboard Joint Boot Rh)[06.2015 -] NCP175,NHP170,NSP17# |
42345-12230 |
US $3.52 |
||
|
43447D
|
43447D
42345-12240 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[06.2015 -] NCP175,NHP170,NSP17# |
42345-12240 |
US $5.44 |
||
|
43448C
|
43448C
42345-12230 Clamp (For Front Axle Outboard Joint Boot Rh)[06.2015 -] NCP175,NHP170,NSP17# |
42345-12230 |
US $3.52 |
||
|
43448E
|
43448E
42345-12180 Clamp (For Front Axle Outboard Joint Boot Lh)[06.2015 -] NCP175,NHP170,NSP17# |
42345-12180 |
US $5.28 |
||
|
43460
|
43460
43460-59616
Shaft Assy, Front Drive Outboard Joint, Rh
[07.2015 - 08.2015] NHP170 |
43460-59616 |
— | ||
|
43460
|
43460
43460-59617 Shaft Assy, Front Drive Outboard Joint, Rh[09.2015 -] NHP170 |
43460-59617 |
US $519.79 |
||
|
43474D
|
43474D
43474-12210 Damper, Drive Shaft[07.2015 -] NHP170 |
43474-12210 |
US $62.46 |
||
|
43474F
|
43474F
42345-14010 Clamp, Rear Drive Shaft Boot[06.2015 -] NCP175,NHP170 |
42345-14010 |
US $11.20 |
||
