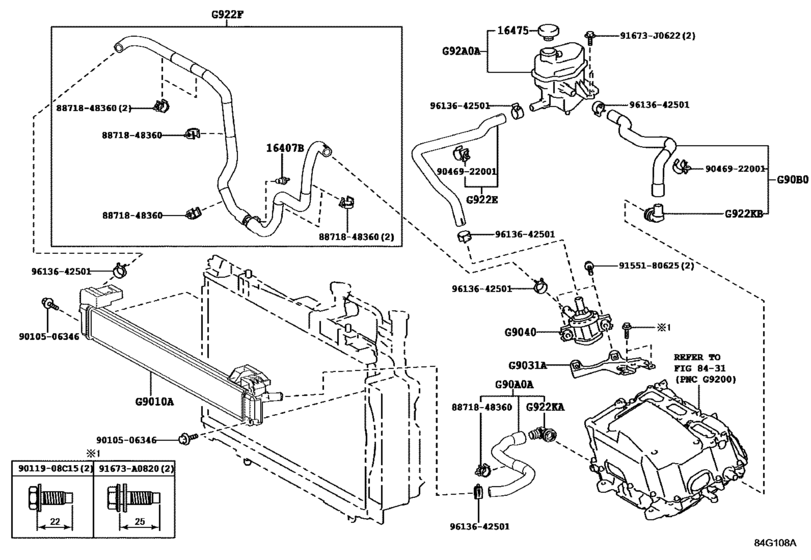

Inverter Cooling ([07.2015 - ] (1507- )NHP170) Diagram Toyota SIENTA
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- NHP170
- grade
- G
- body
- WG
- ENGINE
- 1NZFXE
- TRANSMISSION
- CVT
- From
- 07.2015
- Seating Capacity
- 06S
- Vehicle Model
- SIENTA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16407B
|
16407B
16407-64010 Cock Sub-Assy, Water Drain(For Water By-Pass Joint)[07.2015 -] 1NZFXE..NHP170 |
16407-64010 |
US $6.08 |
||
|
16475
|
16475
16475-28140 Cap Sub-Assy, Radiator Reserve Tank[01.2017 -] 1NZFXE..NHP170 |
16475-28140 |
from US $18.24 |
||
|
16475
|
16475
16475-51011 Cap, Reserve Tank[07.2015 - 12.2016] 1NZFXE..NHP170 |
16475-51011 |
US $16.02 |
||
|
91673A0820
|
91673A0820
91673-A0820 BOLT FLANGE |
91673-A0820 |
US $1.28 |
||
|
91673J0622
|
91673J0622
91673-J0622 New Genuine Part |
91673-J0622 |
US $0.73 |
||
|
9011908C15
|
9011908C15
90119-08C15 BOLT WWASHER |
90119-08C15 |
US $1.28 |
||
|
8871848360
|
8871848360
88718-48360
Clip Or Clamp (For Heater Water Hose)
|
88718-48360 |
— | ||
|
9010506346
|
9010506346
90105-06346
New Genuine Part
|
90105-06346 |
— | ||
|
9046922001
|
9046922001
90469-22001 Clamp, Piping |
90469-22001 |
US $2.88 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.74 |
||
|
9613642501
|
9613642501
96136-42501 Clip(For Ventilation Hose) |
96136-42501 |
from US $3.20 |
||
|
G90A0A
|
G90A0A
G90A0-52030 Hose Assy, Inverter Cooling, No.1[07.2015 -] NHP170 |
G90A0-52030 |
US $58.37 |
||
|
G90B0
|
G90B0
G90B0-52010 Hose Assy, Inverter Cooling, No.2[07.2015 -] NHP170 |
G90B0-52010 |
US $33.90 |
||
|
G92A0A
|
G92A0A
G92A0-52011 Tank Assy, Inverter Reserve[07.2015 -] NHP170 |
G92A0-52011 |
US $90.28 |
||
|
G922E
|
G922E
G922E-52020 Hose, Hybrid Water Pump Inlet[07.2015 -] NHP170 |
G922E-52020 |
US $31.31 |
||
|
G922F
|
G922F
G922F-52030 Hose, Hybrid Water Pump Outlet, No.1[07.2015 -] NHP170 |
G922F-52030 |
US $79.92 |
||
|
G922KA
|
G922KA
G922K-33030 Connector, Hybrid Water Hose, No.1[07.2015 -] NHP170 |
G922K-33030 |
US $10.32 |
||
|
G922KB
|
G922KB
G922K-52010 Connector, Hybrid Water Hose, No.2[07.2015 -] NHP170 |
G922K-52010 |
US $10.92 |
||
|
G9010A
|
G9010A
G9010-52010 Radiator Assy[07.2015 -] NHP170 |
G9010-52010 |
US $303.80 |
||
|
G9031A
|
G9031A
G9141-52020 Bracket Sub-Assy, Hv Water Pump[07.2015 -] NHP170 |
G9141-52020 |
US $12.16 |
||
|
G9040
|
G9040
G9040-52020 Inverter Water Pump Assy(W/motor)[07.2015 -] NHP170 |
G9040-52020 |
from US $326.20 |
