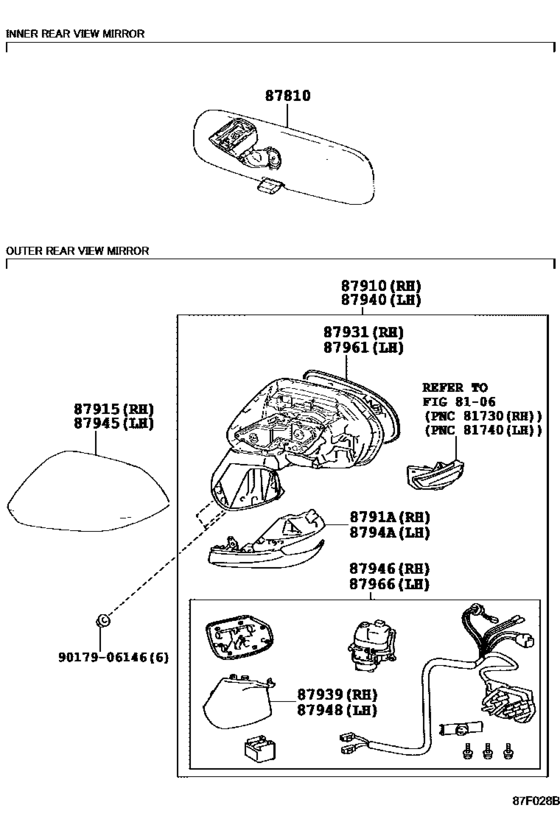

Mirror ([06.2015 - ] (1506- )) Diagram Toyota SIENTA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- NHP170
- body
- WG
- ENGINE
- 1NZFXE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- From
- 07.2015
- Seating Capacity
- 07S
- Vehicle Model
- SIENTA
- Model Mark
- Q
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8791A
|
8791A
8791A-52F30 Cover, Outer Mirror, Rh No.2[06.2015 -] NHP170,NSP170 |
8791A-52F30 |
US $21.28 |
||
|
8794A
|
8794A
8794A-52F20 Cover, Outer Mirror, Lh No.2[06.2015 -] NHP170,NSP170 |
8794A-52F20 |
US $21.28 |
||
|
87810
|
87810
87810-52041 Mirror Assy, Inner Rear View[06.2015 -] NHP170,NSP170 |
87810-52041 |
from US $84.36 |
||
|
87910
|
87910
87910-52F30 Mirror Assy, Outer Rear View, Rh[06.2015 -] NHP170,NSP170 |
87910-52F30 |
US $410.20 |
||
|
87915
|
87915
87915-52220-A1 Cover, Outer Mirror, Rh[06.2015 -] NHP170,NSP170 WHITE PEARL CS.,070 |
87915-52220-A1 |
US $45.14 |
||
|
87915
|
87915
87915-52220-B0 Cover, Outer Mirror, Rh[06.2015 -] NHP170,NSP170 SILVER ME.,1F7 |
87915-52220-B0 |
US $45.14 |
||
|
87915
|
87915
87915-52220-C0 Cover, Outer Mirror, Rh[06.2015 -] NHP170,NSP170 BLACK MC.,209 |
87915-52220-C0 |
US $45.14 |
||
|
87915
|
87915
87915-52220-D1 Cover, Outer Mirror, Rh[06.2015 -] NHP170,NSP170 RED M.M.,3T8 |
87915-52220-D1 |
US $54.26 |
||
|
87915
|
87915
87915-52220-E1 Cover, Outer Mirror, Rh[06.2015 -] NHP170,NSP170 VINTAGE BROWN PEARL CS.,4X4 |
87915-52220-E1 |
US $45.14 |
||
|
87915
|
87915
87915-52220-F1 Cover, Outer Mirror, Rh[06.2015 -] NHP170,NSP170 AIR YELLOW,5B6 |
87915-52220-F1 |
US $45.14 |
||
|
87915
|
87915
87915-52220-G1 Cover, Outer Mirror, Rh[06.2015 -] NHP170,NSP170 GREEN M.M.,6W8 |
87915-52220-G1 |
US $42.77 |
||
|
87915
|
87915
87915-52220-J0 Cover, Outer Mirror, Rh[06.2015 -] NHP170,NSP170 BLUE ME.,8T7 |
87915-52220-J0 |
US $54.26 |
||
|
87931
|
87931
87931-52F30 Outer Mirror, Rh[06.2015 -] NHP170,NSP170 |
87931-52F30 |
US $34.66 |
||
|
87939
|
87939
87939-52F30 Cover, Outer Mirror Hole, Rh[06.2015 -] NHP170,NSP170 |
87939-52F30 |
US $14.56 |
||
|
87940
|
87940
87940-52F20 Mirror Assy, Outer Rear View, Lh[06.2015 -] NHP170,NSP170 |
87940-52F20 |
US $410.20 |
||
|
87945
|
87945
87945-52220-A1 Cover, Outer Mirror, Lh[06.2015 -] NHP170,NSP170 WHITE PEARL CS.,070 |
87945-52220-A1 |
US $45.14 |
||
|
87945
|
87945
87945-52220-B0 Cover, Outer Mirror, Lh[06.2015 -] NHP170,NSP170 SILVER ME.,1F7 |
87945-52220-B0 |
US $45.14 |
||
|
87945
|
87945
87945-52220-C0 Cover, Outer Mirror, Lh[06.2015 -] NHP170,NSP170 BLACK MC.,209 |
87945-52220-C0 |
US $45.14 |
||
|
87945
|
87945
87945-52220-D1 Cover, Outer Mirror, Lh[06.2015 -] NHP170,NSP170 RED M.M.,3T8 |
87945-52220-D1 |
US $54.26 |
||
|
87945
|
87945
87945-52220-E1 Cover, Outer Mirror, Lh[06.2015 -] NHP170,NSP170 VINTAGE BROWN PEARL CS.,4X4 |
87945-52220-E1 |
US $45.14 |
||
|
87945
|
87945
87945-52220-F1 Cover, Outer Mirror, Lh[06.2015 -] NHP170,NSP170 AIR YELLOW,5B6 |
87945-52220-F1 |
US $45.14 |
||
|
87945
|
87945
87945-52220-G1 Cover, Outer Mirror, Lh[06.2015 -] NHP170,NSP170 GREEN M.M.,6W8 |
87945-52220-G1 |
US $54.26 |
||
|
87945
|
87945
87945-52220-J0 Cover, Outer Mirror, Lh[06.2015 -] NHP170,NSP170 BLUE ME.,8T7 |
87945-52220-J0 |
US $54.26 |
||
|
87946
|
87946
87946-52F30 Retractor, Outer Mirror, Rh[06.2015 -] NHP170,NSP170 |
87946-52F30 |
US $148.51 |
||
|
87948
|
87948
87948-52F20 Cover, Outer Mirror Hole, Lh[06.2015 -] NHP170,NSP170 |
87948-52F20 |
US $14.40 |
||
|
87961
|
87961
87961-52F20 Mirror Outer, Lh[06.2015 -] NHP170,NSP170 |
87961-52F20 |
US $34.66 |
||
|
87966
|
87966
87966-52F20 Retractor, Outer Mirror, Lh[06.2015 -] NHP170,NSP170 |
87966-52F20 |
US $148.51 |
||
|
9017906146
|
9017906146
90179-06146 Nut |
90179-06146 |
US $1.60 |
