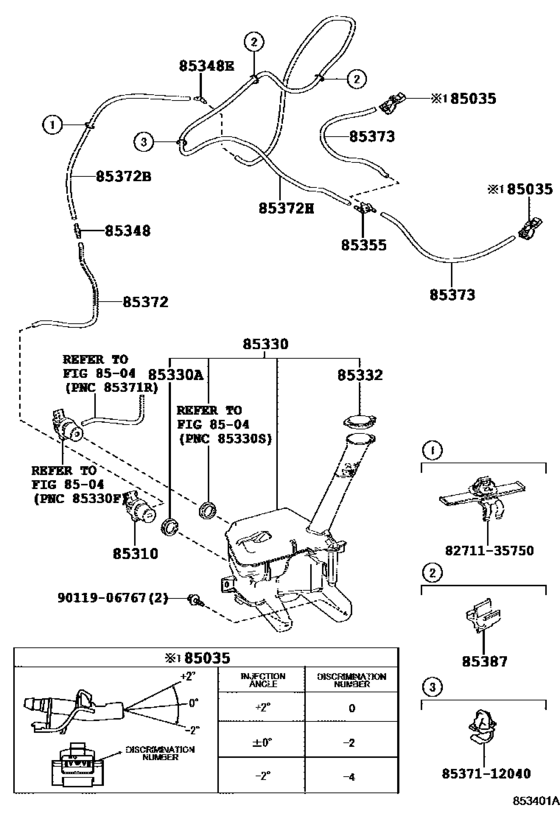

Windshield Washer ([06.2015 - ] (1506- )) Diagram Toyota SIENTA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- NHP170
- body
- WG
- ENGINE
- 1NZFXE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- From
- 07.2015
- Seating Capacity
- 07S
- Vehicle Model
- SIENTA
- Model Mark
- Q
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12400 Nozzle Sub-Assy, Washer[06.2015 -] NHP170,NSP170 ANGLE 0 |
85381-12400 |
from US $8.56 |
||
|
85035
|
85035
85381-12410 Nozzle Sub-Assy, Washer[06.2015 -] NHP170,NSP170 ANGLE -2 |
85381-12410 |
US $7.37 |
||
|
85035
|
85035
85381-12420 Nozzle Sub-Assy, Washer[06.2015 -] NHP170,NSP170 ANGLE +2 |
85381-12420 |
from US $7.37 |
||
|
85310
|
85310
85330-21010 Motor And Pump Assy, Windshield Washer[06.2015 -] NHP170,NSP170 |
85330-21010 |
from US $54.86 |
||
|
85330
|
85330
85315-52420 Jar Assy, Windshield Washer[06.2015 -] NHP170,NSP170 |
85315-52420 |
US $65.87 |
||
|
85330A
|
85330A
85336-60300 Bush, Windshield Washer Jar[06.2015 -] NHP170,NSP170 |
85336-60300 |
from US $1.92 |
||
|
85332
|
85332
85316-16070 Cap, Washer, Inlet[06.2015 -] NHP170,NSP170 |
85316-16070 |
from US $1.75 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[06.2015 -] NHP170,NSP170 |
85349-89122 |
from US $1.25 |
||
|
85348E
|
85348E
85355-20200 Joint, Windshield Washer Hose, No.1[06.2015 -] NHP170,NSP170 |
85355-20200 |
from US $1.03 |
||
|
85355
|
85355
85321-28020 Valve Sub-Assy, Washer[06.2015 -] NHP170,NSP170 |
85321-28020 |
from US $10.65 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[06.2015 -] NHP170,NSP170 *H,L=165 |
90099-33080 |
from US $8.31 |
||
|
85372B
|
85372B
90446-07001 Hose, Windshield Washer (From Motor To Joint)[06.2015 -] NHP170,NSP170 *H,L=1020 |
90446-07001 |
from US $2.10 |
||
|
85372H
|
85372H
90446-07001 Hose, Windshield Washer (From Motor To Joint)[06.2015 -] NHP170,NSP170 *H,L=1210 |
90446-07001 |
from US $2.10 |
||
|
85373
|
85373
90099-33299 Joint, Windshield Washer Elbow, No.2[06.2015 -] NHP170,NSP170 *H,L=370 |
90099-33299 |
US $4.37 |
||
|
85387
|
85387
85375-12540
Clamp
[06.2015 -] NHP170,NSP170 |
85375-12540 |
— | ||
|
8271135750
|
8271135750
82711-35750 Clamp No.1 (For Windseield Washer) |
82711-35750 |
US $1.76 |
||
|
8537112040
|
8537112040
85371-12040 Clamp, Rear Washer Hose |
85371-12040 |
from US $0.96 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
