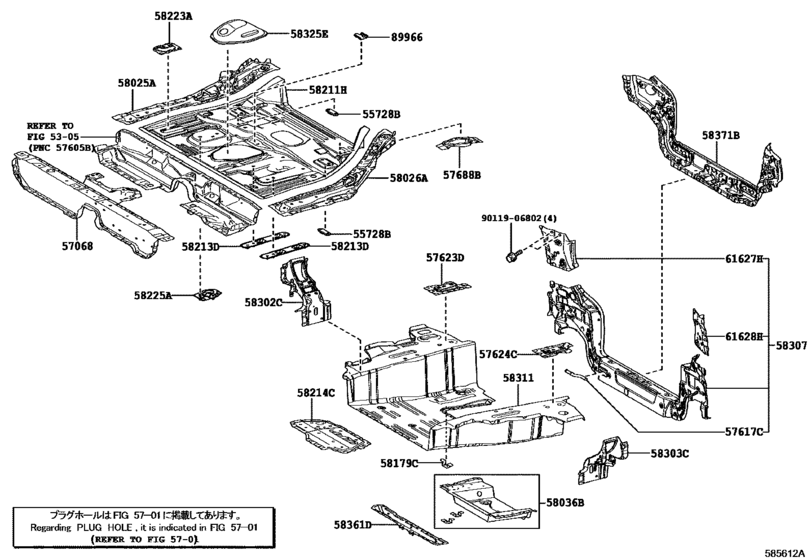

Floor Pan & Lower Back Panel ([06.2015 - ] (1506- )NSP172) Diagram Toyota SIENTA
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- NSP172
- grade
- G
- body
- WG
- ENGINE
- 2NRFKE
- TRANSMISSION
- CVT
- From
- 06.2015
- Seating Capacity
- 05S
- Vehicle Model
- SIENTA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55728B
|
55728B
55728-33040 Reinforcement, Hood Stopper[06.2015 -] NSP172 |
55728-33040 |
US $5.53 |
||
|
57068
|
57068
57068-52070 Member Sub-Assy, Rear Floor Rear Cross, Inner[06.2015 -] NSP172 |
57068-52070 |
US $224.22 |
||
|
57617C
|
57617C
57617-52010 Retainer, Exhaust Pipe Bracket[06.2015 -] NSP172 |
57617-52010 |
US $4.80 |
||
|
57623D
|
57623D
57623-52020 Plate, Rear Floor Side Member, Rr Rh[06.2015 -] NSP172 |
57623-52020 |
US $18.49 |
||
|
57624C
|
57624C
57624-52030 Plate, Rear Floor Side Member, Rr Lh[06.2015 -] NSP172 |
57624-52030 |
US $18.49 |
||
|
57688B
|
57688B
57688-52080 Reinforcement, Rear Floor Crossmember[06.2015 -] NSP172 |
57688-52080 |
US $23.44 |
||
|
58025A
|
58025A
58025-52050 Panel Sub-Assy, Floor Side Rail, Fr Rh[06.2015 -] NCP175,NHP170,NSP17# |
58025-52050 |
US $68.14 |
||
|
58026A
|
58026A
58026-52070 Panel Sub-Assy, Floor Side Rail, Fr Lh[06.2015 -] NCP175,NHP170,NSP17# |
58026-52070 |
US $68.14 |
||
|
58036B
|
58036B
58036-52021 Extension Sub-Assy, Rear Floor Side Panel, Lh[06.2015 -] NSP172 |
58036-52021 |
US $90.27 |
||
|
58179C
|
58179C
58179-52050 Bracket, Clamp Floor[06.2015 -] NSP172 |
58179-52050 |
US $2.62 |
||
|
58211H
|
58211H
58211-52320 Pan, Center Floor[06.2015 -] NSP172 |
58211-52320 |
US $196.56 |
||
|
58213D
|
58213D
58213-52040 Reinforcement, Center Floor Panel[06.2015 -] NSP172 |
58213-52040 |
US $28.83 |
||
|
58214C
|
58214C
58214-52070 Reinforcement, Center Floor Panel, Lh[06.2015 -] NSP172 |
58214-52070 |
US $53.73 |
||
|
58223A
|
58223A
58223-52020 Reinforcement, Floor Side Panel, Rh[06.2015 -] NSP172 |
58223-52020 |
US $11.36 |
||
|
58225A
|
58225A
58225-52020 Bracket, Center Mounting[06.2015 -] NSP172 |
58225-52020 |
US $23.30 |
||
|
58302C
|
58302C
58302-52180 Bracket Sub-Assy, Rear Absorber, Rh[06.2015 -] NSP172 |
58302-52180 |
US $64.94 |
||
|
58303C
|
58303C
58303-52030 Bracket Sub-Assy, Rear Absorber, Lh[06.2015 -] NSP172 |
58303-52030 |
US $64.94 |
||
|
58307
|
58307
57607-52130 Panel Sub-Assy, Body Lower Back[06.2015 -] NSP172 |
57607-52130 |
US $246.06 |
||
|
58311
|
58311
58311-52260 Pan, Rear Floor[06.2015 -] NSP172 |
58311-52260 |
US $237.33 |
||
|
58325E
|
58325E
58325-52090 Cover, Rear Floor Service Hole[06.2015 -] NHP170,NSP17# |
58325-52090 |
US $20.53 |
||
|
58361D
|
58361D
58361-52030 Reinforcement, Rear Floor Panel, No.1 Rh[06.2015 -] NSP172 |
58361-52030 |
US $55.33 |
||
|
58371B
|
58371B
58307-52660 Panel, Body Lower Back, Outer[06.2015 -] NSP172 |
58307-52660 |
US $176.18 |
||
|
61627H
|
61627H
61627-52030 Extension, Quarter Panel, Rear Lower Rh[06.2015 -] NCP175,NHP170,NSP17#; NHP170,NSP170..06S ウェルキャブ−助手席回転チルトシート（Ｂタイプ） |
61627-52030 |
US $29.29 |
||
|
61628H
|
61628H
61628-52030 Extension, Quarter Panel, Rear Lwr Lh[06.2015 -] NCP175,NHP170,NSP17#; NHP170,NSP170..06S ウェルキャブ−助手席回転チルトシート（Ｂタイプ） |
61628-52030 |
US $29.56 |
||
|
89966
|
89966
89966-48020 Bracket, Oscillator Electrical Key[06.2015 -] NSP172 |
89966-48020 |
US $2.62 |
||
|
9011906802
|
9011906802
90119-06802 BOLT WWASHER |
90119-06802 |
US $0.96 |
