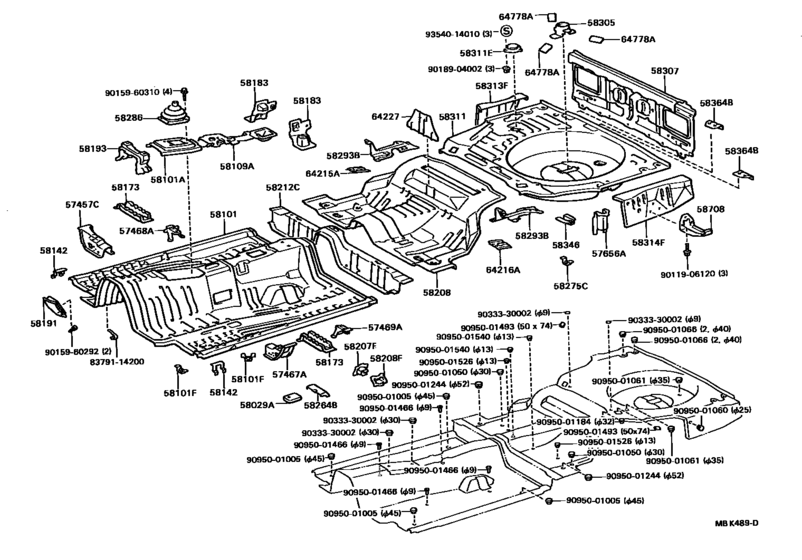

Floor Pan & Lower Back Panel ([01.1986 - ] (8601- )) Diagram Toyota SOARER
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GZ20
- grade
- VZ
- body
- CP
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 01.1986
- To
- 01.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57457C
|
57457C
57457-24010 Bracket, Front Seat Outside Mounting, Front Rh[01.1986 - 01.1988] GZ20,MZ2# |
57457-24010 |
US $27.96 |
||
|
57467A
|
57467A
57467-24010 Bracket, Front Seat Outside Mounting, Front Lh[01.1986 - 01.1988] GZ20,MZ2# |
57467-24010 |
US $27.96 |
||
|
57468A
|
57468A
57468-14030
Bracket, Front Seat, Outside, Rear Rh
[01.1986 - 01.1988] GZ20,MZ2# |
57468-14030 |
— | ||
|
57469A
|
57469A
57469-14030
Bracket, Front Seat, Outside, Rear Lh
[01.1986 - 01.1988] GZ20,MZ2# |
57469-14030 |
— | ||
|
57656A
|
57656A
57656-14040 Bracket, Exhaust Pipe Mounting, No.1[01.1986 - 01.1988] GZ20,MZ2# |
57656-14040 |
US $19.66 |
||
|
58029A
|
58029A
58029-14020 Bracket Sub-Assy, Parking Brake Wire Clamp[01.1986 - 01.1988] GZ20,MZ2# |
58029-14020 |
US $39.46 |
||
|
58101
|
58101
58111-14060
Pan Sub-Assy, Front Floor
[01.1986 - 01.1988] GZ20,MZ2# |
58111-14060 |
— | ||
| replacements | |||||
|
58101
|
58101
58111-14061
Pan, Front Floor
[01.1986 - 01.1988] GZ20,MZ2# |
58111-14061 |
— | ||
|
58101
|
58101
90189-05102 New Genuine Part[01.1986 - 01.1988] GZ20,MZ2# |
90189-05102 |
US $1.89 |
||
|
58101A
|
58101A
58281-14130 Cover, Transmission Auxiliary[01.1986 - 01.1988] GZ20,MZ2#..4FC |
58281-14130 |
US $15.58 |
||
|
58101F
|
58101F
58131-14030
Bracket, Mounting, Floor, No.1
[01.1986 - 01.1988] GZ20,MZ2# |
58131-14030 |
— | ||
|
58109A
|
58109A
58109-14010 Retainer Sub-Assy, Parking Brake[01.1986 - 01.1988] GZ20,MZ2# |
58109-14010 |
US $42.08 |
||
|
58142
|
58142
58141-14020 Protector, Front Floor Service Hole, No.1[01.1986 - 01.1988] GZ20,MZ2# |
58141-14020 |
US $5.82 |
||
|
58173
|
58173
58173-14020
Deflector, Front Floor Stone
[01.1986 - 01.1987] GZ20,MZ2# RH |
58173-14020 |
— | ||
|
58173
|
58173
58174-14010
Deflector, Front Floor Stone
[01.1986 - 01.1987] GZ20,MZ2# LH |
58174-14010 |
— | ||
|
58183
|
58183
58183-14030 Bracket, Front Seat Mounting, Inner[01.1986 - 01.1988] GZ20,MZ2# RH |
58183-14030 |
US $45.72 |
||
|
58183
|
58183
58184-14030 Bracket, Front Seat Mounting, Inner[01.1986 - 01.1988] GZ20,MZ2# LH |
58184-14030 |
US $45.72 |
||
|
58191
|
58191
58191-14050 Footrest, Front Floor[01.1986 - 01.1988] GZ20,MZ2# |
58191-14050 |
US $25.48 |
||
|
58193
|
58193
58193-14030 Bracket, Instrument Panel Brace Mounting[01.1986 - 01.1988] GZ20,MZ2# |
58193-14030 |
US $27.08 |
||
|
58207F
|
58207F
58207-14040 Clamp Sub-Assy, Parking Brake Cable, Rh[01.1986 - 01.1988] GZ20,MZ2# |
58207-14040 |
US $11.07 |
||
|
58208
|
58208
58211-14120
Pan, Center Floor
[01.1986 - 01.1988] GZ20,MZ20 |
58211-14120 |
— | ||
|
58208F
|
58208F
58208-14040 Clamp Sub-Assy, Parking Brake Cable, Lh[01.1986 - 01.1988] GZ20,MZ2# |
58208-14040 |
US $11.07 |
||
|
58212C
|
58212C
58212-14020 Pan, Center Floor, Front[01.1986 - 01.1988] GZ20,MZ2# |
58212-14020 |
US $109.20 |
||
|
58264B
|
58264B
58264-14020 Bracket, Parking Brake Cable Guide[01.1986 - 01.1988] GZ20,MZ2# |
58264-14020 |
US $12.67 |
||
|
58275C
|
58275C
58275-14020 Bracket, Wire Harness Protector[01.1986 - 01.1988] GZ20,MZ2# |
58275-14020 |
US $4.08 |
||
|
58305
|
58305
58305-10011 Bracket Sub-Assy, Spare Wheel Clamp[01.1986 - 01.1988] GZ20,MZ2# |
58305-10011 |
US $4.54 |
||
|
58307
|
58307
58307-24020 Panel Sub-Assy, Body Lower Back[01.1986 - 01.1988] GZ20,MZ2# |
58307-24020 |
US $241.70 |
||
|
58311
|
58311
58311-14170
Pan, Rear Floor
[01.1986 - 01.1988] GZ20,MZ2# |
58311-14170 |
— | ||
| replacement | |||||
|
58311
|
58311
58311-14171
Pan, Rear Floor
[01.1986 - 01.1988] GZ20,MZ2# |
58311-14171 |
— | ||
|
58311E
|
58311E
58325-14020
Cover, Rear Floor Service Hole
[01.1986 - 01.1988] GZ20,MZ2# |
58325-14020 |
— | ||
|
58313F
|
58313F
58305-24010 Extension, Rear Floor Pan To Quarter Panel, Rh[01.1986 - 01.1988] GZ20,MZ2# |
58305-24010 |
US $58.39 |
||
|
58314F
|
58314F
58306-24020 Extension, Rear Floor Pan To Quarter Panel, Lh[01.1986 - 01.1988] GZ20,MZ2# |
58306-24020 |
US $74.26 |
||
|
58346
|
58346
58345-14020
Bracket, Rear Floor Heat Insulator, No.1
[01.1986 - 01.1988] GZ20,MZ2# |
58345-14020 |
— | ||
|
58364B
|
58364B
58365-14010 Bracket, Fuel Tank Support[01.1986 - 01.1988] GZ20,MZ2# RH |
58365-14010 |
US $18.05 |
||
|
58364B
|
58364B
58366-14010 Bracket, Fuel Tank Support[01.1986 - 01.1988] GZ20,MZ2# LH |
58366-14010 |
US $23.44 |
||
|
58708
|
58708
58791-24010 Carrier Sub-Assy, Jack[01.1986 - 01.1988] GZ20,MZ2# |
58791-24010 |
US $17.47 |
||
|
64215A
|
64215A
64215-24010 Extension, Rear Floor To Package Tray, Rh[01.1986 - 01.1988] GZ20,MZ2# |
64215-24010 |
US $6.12 |
||
|
64216A
|
64216A
64216-24010 Extension, Rear Floor To Package Tray, Lh[01.1986 - 01.1988] GZ20,MZ2# |
64216-24010 |
US $6.12 |
||
|
64227
|
64227
64227-24010 Extension, Center Floor To Brace[01.1986 - 01.1988] GZ20,MZ2# |
64227-24010 |
US $8.59 |
||
|
64778A
|
64778A
64778-14020 Protector, Spare Wheel[01.1986 - 01.1988] GZ20,MZ2# |
64778-14020 |
US $8.21 |
||
|
8379114200
|
8379114200
83791-14200 Clamp (For Speedometer Cable) |
83791-14200 |
US $5.24 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.12 |
||
|
9015960292
|
9015960292
90159-60292 New Genuine Part |
90159-60292 |
US $1.60 |
||
|
9015960310
|
9015960310
90159-60310 SCREW |
90159-60310 |
US $1.60 |
||
|
9018904002
|
9018904002
90189-04002 GROMMET |
90189-04002 |
from US $1.92 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.77 |
||
|
9095001050
|
9095001050
90950-01050
New Genuine Part
|
90950-01050 |
— | ||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001066
|
9095001066
90950-01066 New Genuine Part |
90950-01066 |
US $4.16 |
||
|
9095001184
|
9095001184
90950-01184 PLUG |
90950-01184 |
US $8.30 |
||
|
9095001244
|
9095001244
90950-01244 New Genuine Part |
90950-01244 |
US $5.53 |
||
|
9095001466
|
9095001466
90950-01466 New Genuine Part |
90950-01466 |
US $2.33 |
||
|
9095001493
|
9095001493
90950-01493
New Genuine Part
|
90950-01493 |
— | ||
|
9095001526
|
9095001526
90950-01526 Plug, Hole(For Heater Control Cable Hole) |
90950-01526 |
US $2.91 |
||
|
9095001540
|
9095001540
90950-01540 New Genuine Part |
90950-01540 |
US $2.48 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.99 |
||
