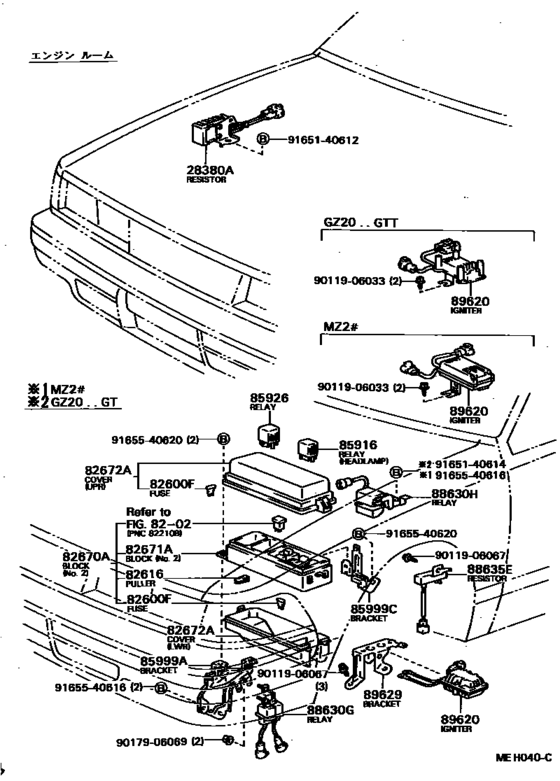

Switch & Relay & Computer ([01.1986 - ] (8601- )) Diagram Toyota SOARER
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GZ20
- grade
- VZ
- body
- CP
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 01.1986
- To
- 01.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09002 Fusible Link[01.1986 - 01.1988] GZ20,MZ2# １０Ａ,10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[01.1986 - 01.1988] GZ20,MZ2# １５Ａ,15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[01.1986 - 01.1988] GZ20,MZ2# ２０Ａ,20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[01.1986 - 01.1988] GZ20,MZ2# ７．５Ａ,7.5A |
90982-09005 |
from US $0.99 |
||
|
82616
|
82616
82616-12020 Puller, Fuse[01.1986 - 01.1988] GZ20,MZ2# |
82616-12020 |
US $4.19 |
||
|
82670A
|
82670A
82670-24010 Block Assy, Junction, No.1[01.1986 - 01.1988] GZ20,MZ2# NO.1 |
82670-24010 |
US $84.45 |
||
|
82670A
|
82670A
82670-24020 Block Assy, Junction, No.1[01.1986 - 01.1988] GZ20,MZ2# NO.2 |
82670-24020 |
US $84.45 |
||
|
82671A
|
82671A
82671-20030
Block Assy, Junction, No.1
[01.1986 - 01.1988] GZ20,MZ2# NO.1 |
82671-20030 |
— | ||
|
82671A
|
82671A
82671-24010
Block Assy, Junction, No.1
[01.1986 - 01.1988] GZ20,MZ2# NO.2 |
82671-24010 |
— | ||
|
82671A
|
82671A
82671-24030 Block, Junction[01.1986 - 01.1988] GZ20,MZ2# NO.3 |
82671-24030 |
US $85.90 |
||
|
82672A
|
82672A
82672-24010 Cover, Relay Block, No.1[01.1986 - 01.1988] GZ20,MZ2# LWR |
82672-24010 |
US $27.23 |
||
|
82672A
|
82672A
82672-24020 Cover, Junction Block[01.1986 - 02.1987] GZ20,MZ20..GT,VX,VZ UPR |
82672-24020 |
US $30.87 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[01.1986 - 01.1988] GZ20,MZ2# TAIL LAMP,MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[01.1986 - 01.1988] GZ20,MZ2# TAIL LAMP,MARUKO |
90987-02004 |
from US $28.20 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[01.1986 - 01.1988] GZ20,MZ2# TAIL LAMP,DENSO |
90987-02004 |
from US $28.20 |
||
|
85916
|
85916
90987-02006 Relay[01.1986 - 01.1988] GZ20,MZ2# HEADLAMP |
90987-02006 |
from US $27.65 |
||
|
85999A
|
85999A
85999-24020
Bracket, Relay, No.2
[01.1986 - 01.1988] GZ20,MZ2# |
85999-24020 |
— | ||
|
85999C
|
85999C
85999-24030
Bracket, Relay, No.3
[01.1986 - 01.1988] GZ20,MZ2# |
85999-24030 |
— | ||
|
88630G
|
88630G
88630-24060
Relay Assy, Cooler
[01.1986 - 01.1988] GZ20,MZ2# |
88630-24060 |
— | ||
|
89620
|
89620
89620-14410 Igniter Assy[01.1986 - 01.1988] GZ20..GT,VX,VZ |
89620-14410 |
US $441.17 |
||
| replacement | |||||
|
89620
|
89620
89620-22420
Igniter Assy
[01.1986 - 01.1988] GZ20..GT,VX,VZ |
89620-22420 |
— | ||
|
89629
|
89629
89629-14050
Bracket, Igniter Assy
[01.1986 - 01.1988] GZ20,MZ2# |
89629-14050 |
— | ||
|
9011906033
|
9011906033
90119-06033
Bolt
|
90119-06033 |
— | ||
| replacement | |||||
|
9011906033
|
9011906033
90119-06157 Bolt |
90119-06157 |
US $2.33 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9017906069
|
9017906069
90179-06069
Direct
|
90179-06069 |
— | ||
| replacement | |||||
|
9017906069
|
9017906069
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
US $1.44 |
||
