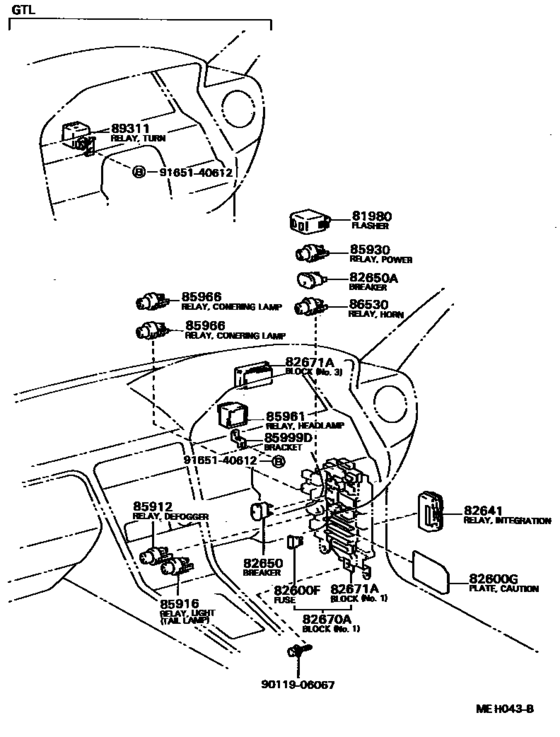

Switch & Relay & Computer ([01.1986 - ] (8601- )) Diagram Toyota SOARER
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GZ20
- grade
- VZ
- body
- CP
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 01.1986
- To
- 01.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-30090 Flasher Assy, Turn Signal[01.1986 - 01.1988] GZ20,MZ20..GT,GTT,VX,VZ |
81980-30090 |
US $141.23 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[01.1986 - 01.1988] GZ20,MZ2# １０Ａ,10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[01.1986 - 01.1988] GZ20,MZ2# １５Ａ,15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[01.1986 - 01.1988] GZ20,MZ2# ２０Ａ,20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[01.1986 - 01.1988] GZ20,MZ2# ７．５Ａ,7.5A |
90982-09005 |
from US $0.99 |
||
|
82600G
|
82600G
82683-24020 Plate, Caution(For Fuse)[01.1986 - 01.1988] GZ20,MZ2# |
82683-24020 |
US $4.08 |
||
|
82641
|
82641
82641-24010 Relay, Integration No.1[01.1986 - 01.1988] GZ20,MZ2# |
82641-24010 |
US $147.06 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[01.1986 - 01.1988] GZ20,MZ2# ３０Ａ,30A,DEFOGGER |
82650-20011 |
US $14.08 |
||
|
82650A
|
82650A
82650-20011 Breaker Assy, Wiring Circuit, No.1[01.1986 - 01.1988] GZ20,MZ2# ３０Ａ,30A,*PW OR *EL |
82650-20011 |
US $14.08 |
||
|
82670A
|
82670A
82670-24010 Block Assy, Junction, No.1[01.1986 - 01.1988] GZ20,MZ2# NO.1 |
82670-24010 |
US $84.45 |
||
|
82670A
|
82670A
82670-24020 Block Assy, Junction, No.1[01.1986 - 01.1988] GZ20,MZ2# NO.2 |
82670-24020 |
US $84.45 |
||
|
82671A
|
82671A
82671-20030
Block Assy, Junction, No.1
[01.1986 - 01.1988] GZ20,MZ2# NO.1 |
82671-20030 |
— | ||
|
82671A
|
82671A
82671-24010
Block Assy, Junction, No.1
[01.1986 - 01.1988] GZ20,MZ2# NO.2 |
82671-24010 |
— | ||
|
82671A
|
82671A
82671-24030 Block, Junction[01.1986 - 01.1988] GZ20,MZ2# NO.3 |
82671-24030 |
US $85.90 |
||
|
85912
|
85912
90987-02002
Relay, Ignition, No.1
[01.1986 - 01.1988] GZ20,MZ2# MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85912
|
85912
90987-02004 Relay Assy, Starter[01.1986 - 01.1988] GZ20,MZ2# MARUKO |
90987-02004 |
from US $28.20 |
||
|
85912
|
85912
90987-02004 Relay Assy, Starter[01.1986 - 01.1988] GZ20,MZ2# DENSO |
90987-02004 |
from US $28.20 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[01.1986 - 01.1988] GZ20,MZ2# TAIL LAMP,MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[01.1986 - 01.1988] GZ20,MZ2# TAIL LAMP,MARUKO |
90987-02004 |
from US $28.20 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[01.1986 - 01.1988] GZ20,MZ2# TAIL LAMP,DENSO |
90987-02004 |
from US $28.20 |
||
|
85916
|
85916
90987-02006 Relay[01.1986 - 01.1988] GZ20,MZ2# HEADLAMP |
90987-02006 |
from US $27.65 |
||
|
85930
|
85930
90987-02002
Relay, Ignition, No.1
[01.1986 - 01.1988] GZ20,MZ2# MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85930
|
85930
90987-02004 Relay Assy, Starter[01.1986 - 01.1988] GZ20,MZ2# MARUKO |
90987-02004 |
from US $28.20 |
||
|
85930
|
85930
90987-02004 Relay Assy, Starter[01.1986 - 01.1988] GZ20,MZ2# DENSO |
90987-02004 |
from US $28.20 |
||
|
85961
|
85961
85961-24010
Relay, Headlamp Retainer
[01.1986 - 01.1988] GZ20,MZ20..GT,GTT,VX,VZ |
85961-24010 |
— | ||
|
85966
|
85966
90987-02002
Relay, Ignition, No.1
[01.1986 - 01.1988] GZ20,MZ20..GT,GTT,VX,VZ MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85966
|
85966
90987-02004 Relay Assy, Starter[01.1986 - 01.1988] GZ20,MZ20..GT,GTT,VX,VZ MARUKO |
90987-02004 |
from US $28.20 |
||
|
85966
|
85966
90987-02004 Relay Assy, Starter[01.1986 - 01.1988] GZ20,MZ20..GT,GTT,VX,VZ DENSO |
90987-02004 |
from US $28.20 |
||
|
85999D
|
85999D
85999-24040 Bracket, Relay, No.4[01.1986 - 01.1988] GZ20,MZ20..GT,GTT,VX,VZ |
85999-24040 |
US $8.15 |
||
|
86530
|
86530
90987-02002
Relay, Ignition, No.1
[01.1986 - 01.1988] GZ20,MZ2# MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
86530
|
86530
90987-02004 Relay Assy, Starter[01.1986 - 01.1988] GZ20,MZ2# MARUKO |
90987-02004 |
from US $28.20 |
||
|
86530
|
86530
90987-02004 Relay Assy, Starter[01.1986 - 01.1988] GZ20,MZ2# DENSO |
90987-02004 |
from US $28.20 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
