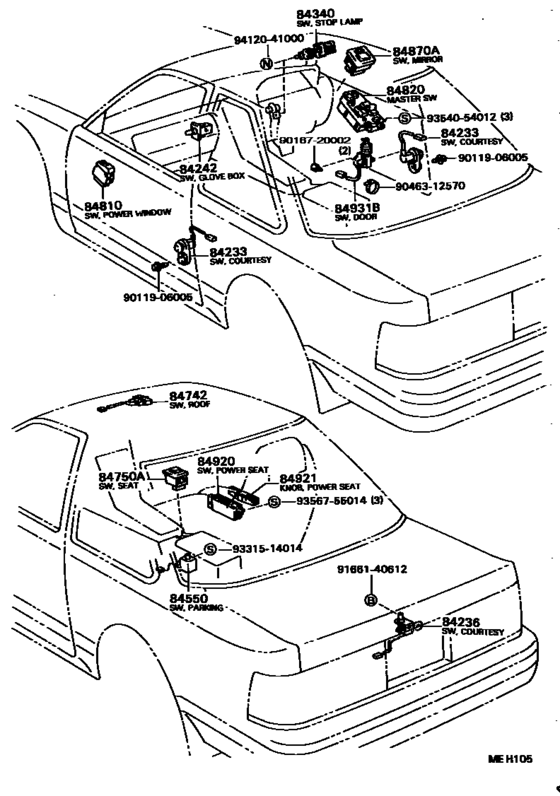

Switch & Relay & Computer ([01.1986 - ] (8601- )) Diagram Toyota SOARER
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GZ20
- grade
- VZ
- body
- CP
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 01.1986
- To
- 01.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84233
|
84233
84231-24010
Switch Assy, Courtesy Lamp (For Front Door)
[01.1986 - 01.1988] GZ20,MZ2# |
84231-24010 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-12070 Switch Assy, Courtesy Lamp (For Front Door)[01.1986 - 01.1988] GZ20,MZ2# |
84231-12070 |
from US $16.11 |
||
|
84236
|
84236
84231-16010 Switch Assy, Courtesy Lamp(For Luggage Compartment Room)[01.1986 - 06.1986] GZ20,MZ2# |
84231-16010 |
US $14.41 |
||
|
84236
|
84236
84231-16030 Switch Assy, Courtesy Lamp(For Luggage Compartment Room)[06.1986 - 08.1986] GZ20,MZ2# |
84231-16030 |
US $14.56 |
||
|
84236
|
84236
84231-24020 Switch Assy, Courtesy Lamp(For Luggage Compartment Room)[08.1986 - 01.1988] GZ20,MZ2# |
84231-24020 |
US $14.56 |
||
|
84242
|
84242
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[01.1986 - 01.1988] GZ20,MZ2# |
84242-20030 |
US $18.35 |
||
|
84340
|
84340
84340-30030 Switch Assy, Stop Lamp[01.1986 - 01.1988] GZ20 MATSUSHITA |
84340-30030 |
from US $28.78 |
||
|
84340
|
84340
84340-32010
Switch Assy, Stop Lamp
[01.1986 - 01.1988] GZ20 TOKAIRIKA |
84340-32010 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-30030 Switch Assy, Stop Lamp[01.1986 - 01.1988] GZ20 TOKAIRIKA |
84340-30030 |
from US $28.78 |
||
|
84550
|
84550
84550-24030
Switch Assy, Parking Brake
[01.1986 - 01.1988] GZ20,MZ2# |
84550-24030 |
— | ||
|
84742
|
84742
84742-24010 Switch, Slide Roof Limit[01.1986 - 01.1988] GZ20,MZ2# |
84742-24010 |
US $51.98 |
||
|
84750A
|
84750A
84750-14050
Switch Assy, Seat
[01.1986 - 01.1988] GZ20,MZ2#..GT,GTL,GTT,VZ W/SPORTS SEAT |
84750-14050 |
— | ||
|
84810
|
84810
84810-32050
Switch Assy, Power Window Regulator
[01.1986 - 01.1988] GZ20,MZ2# |
84810-32050 |
— | ||
| replacement | |||||
|
84810
|
84810
84810-30130 Switch Assy, Power Window Regulator[01.1986 - 01.1988] GZ20,MZ2# |
84810-30130 |
US $56.70 |
||
|
84820
|
84820
84820-14180
Master Switch Assy, Power Window Regulator
[01.1987 - 01.1988] GZ20,MZ2# |
84820-14180 |
— | ||
|
84820
|
84820
84820-20110 Master Switch Assy, Power Window Regulator[01.1986 - 01.1987] GZ20,MZ2# |
84820-20110 |
US $132.50 |
||
|
84870A
|
84870A
84870-24020 Switch Assy, Outer Mirror[01.1986 - 01.1988] GZ20,MZ2# W/FENDER MIRROR |
84870-24020 |
US $85.90 |
||
|
84870A
|
84870A
84870-24030 Switch Assy, Outer Mirror[01.1986 - 01.1988] GZ20,MZ2# W/DOOR MIRROR |
84870-24030 |
US $85.90 |
||
|
84931B
|
84931B
84931-24020 Switch, Door Control[01.1986 - 01.1988] GZ20,MZ2# |
84931-24020 |
US $56.35 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9016720002
|
9016720002
90167-20002 New Genuine Part |
90167-20002 |
US $1.02 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.20 |
||
|
9166140612
|
9166140612
91661-40612 New Genuine Part |
91661-40612 |
US $2.08 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.78 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
