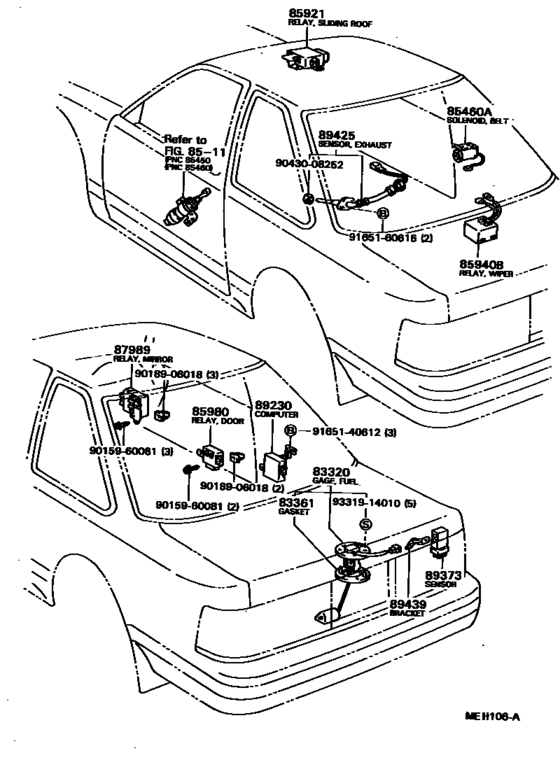

Switch & Relay & Computer ([01.1986 - ] (8601- )) Diagram Toyota SOARER
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GZ20
- grade
- VZ
- body
- CP
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 01.1986
- To
- 01.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-80053
Gage Assy, Fuel Sender
[01.1986 - 01.1988] GZ20..GT,VX,VZ |
83320-80053 |
— | ||
|
83361
|
83361
77169-14010 Gasket, Fuel Pump Bracket[01.1986 - 01.1988] GZ20,MZ2# |
77169-14010 |
from US $3.68 |
||
| replacement | |||||
|
83361
|
83361
77169140101
Gasket, Fuel Pump Bracket
[01.1986 - 01.1988] GZ20,MZ2# |
77169140101 |
— | ||
|
85921
|
85921
85921-24010 Relay, Sliding Roof Control[01.1986 - 01.1988] GZ20,MZ2# |
85921-24010 |
US $251.89 |
||
|
85980
|
85980
85980-24020 Relay Assy, Door Control[01.1987 - 01.1988] GZ20 |
85980-24020 |
US $339.25 |
||
|
85980
|
85980
85980-24030 Relay Assy, Door Control[01.1986 - 01.1987] GZ20 |
85980-24030 |
US $196.56 |
||
|
87989
|
87989
87989-24010 Relay, Mirror Control[01.1986 - 01.1988] GZ20,MZ2# |
87989-24010 |
US $123.76 |
||
|
89373
|
89373
89373-24050 Sensor, Lamp Failure Indicator[01.1986 - 01.1988] GZ20,MZ2# |
89373-24050 |
US $246.06 |
||
|
89425
|
89425
89425-19365 Sensor, Exhaust Gas Temperature[01.1986 - 01.1988] GZ20,MZ2# |
89425-19365 |
US $292.66 |
||
| replacement | |||||
|
89425
|
89425
89425-29425 Sensor, Exhaust Gas Temperature[01.1986 - 01.1988] GZ20,MZ2# |
89425-29425 |
US $292.66 |
||
|
89439
|
89439
89439-24010 Bracket, Sensor[01.1986 - 01.1988] GZ20,MZ2# |
89439-24010 |
US $6.70 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
