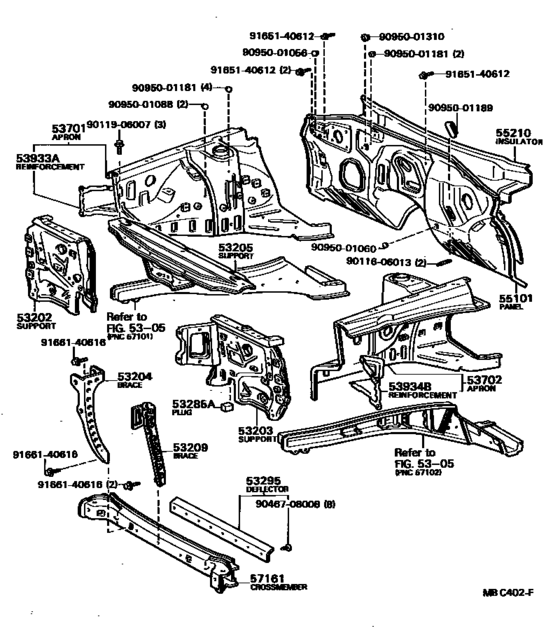

Front Fender Apron & Dash Panel ([02.1981 - ] (8102- )) Diagram Toyota SOARER
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- MZ10
- body
- CP
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- From
- 07.1981
- To
- 02.1983
- Grade
- V2
- Gear Shift Type
- 4FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53202
|
53202
53202-24010 Support Sub-Assy, Radiator, RhRADIATOR, RH [02.1981 - 12.1985] GZ10,MZ1# |
53202-24010 |
US $157.25 |
||
|
53203
|
53203
53203-24900 Support Sub-Assy, Radiator, Lh[02.1981 - 12.1985] GZ10,MZ1# |
53203-24900 |
US $158.70 |
||
| replacements | |||||
|
53203
|
53203
53203-24901 Support Sub-assy, Radiator, Lh[02.1981 - 12.1985] GZ10,MZ1# |
53203-24901 |
US $132.50 |
||
|
53203
|
53203
88714-24090
Insulator, Cooler Refrigerant Pipe, No.1
[02.1981 - 12.1985] GZ10,MZ1# |
88714-24090 |
— | ||
|
53203
|
53203
88716-24042 Pipe, Cooler Refrigerant Liquid, E[02.1981 - 12.1985] GZ10,MZ1# |
88716-24042 |
US $82.99 |
||
|
53204
|
53204
53217-24010 Brace Sub-Assy, Radiator Support To Cross MemberRADIATOR SUPPORT TO CROSS MEMBER [02.1981 - 12.1985] GZ10,MZ1# |
53217-24010 |
US $26.79 |
||
|
53205
|
53205
53205-24010 Support Sub-Assy, Radiator, UpperRADIATOR, UPPER [02.1983 - 12.1985] GZ10,MZ1# |
53205-24010 |
US $116.48 |
||
|
53205
|
53205
53205-24020 Support Sub-Assy, Radiator, UpperRADIATOR, UPPER [07.1981 - 02.1983] MZ10 |
53205-24020 |
US $116.48 |
||
|
53209
|
53209
53208-24010
Brace Sub-Assy, Hood Lock
[02.1981 - 02.1983] GZ10,MZ1# |
53208-24010 |
— | ||
|
53209
|
53209
53208-24011 Brace Sub-Assy, Hood LockHOOD LOCK [02.1983 - 12.1985] GZ10,MZ1# |
53208-24011 |
US $67.70 |
||
|
53295
|
53295
53295-14030
Deflector, Radiator Lower Air
[02.1981 - 12.1985] GZ10,MZ1# |
53295-14030 |
— | ||
|
53701
|
53701
53701-24010 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [02.1981 - 12.1985] GZ10,MZ1# |
53701-24010 |
US $815.36 |
||
|
53702
|
53702
53702-24020 Apron Sub-Assy, Front Fender, LhFRONT FENDER, LH [04.1981 - 02.1983] MZ1#; GZ10 COLD SPEC |
53702-24020 |
US $815.36 |
||
|
55101
|
55101
55101-24020 Panel Sub-Assy, DashDASH [02.1981 - 03.1983] GZ10,MZ1# |
55101-24020 |
US $380.02 |
||
| replacement | |||||
|
55101
|
55101
55101-24021
Panel Sub-Assy, Dash
[02.1981 - 03.1983] GZ10,MZ1# |
55101-24021 |
— | ||
|
55210
|
55210
55210-24010
Insulator Assy, Dash Panel
[03.1982 - 12.1985] GZ10,MZ1# |
55210-24010 |
— | ||
|
55210
|
55210
55210-24020
Insulator Assy, Dash Panel
[02.1981 - 03.1982] GZ10,MZ1#..4FC |
55210-24020 |
— | ||
|
57161
|
57161
57104-24010 Crossmember, FrontFRONT [02.1981 - 12.1985] GZ10,MZ1# |
57104-24010 |
US $202.38 |
||
|
9011606013
|
9011606013
90116-06013 New Genuine Part |
90116-06013 |
US $1.89 |
||
|
9011906007
|
9011906007
90119-06007
New Genuine Part
|
90119-06007 |
— | ||
| replacement | |||||
|
9011906007
|
9011906007
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9046708008
|
9046708008
90467-08008 Clip, Step Plate Cover |
90467-08008 |
from US $2.51 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001088
|
9095001088
90950-01088
Plug, Hole, No.4(For Dash Panel)
|
90950-01088 |
— | ||
|
9095001181
|
9095001181
90950-01181 Plug, Hole(For Front Fender Apron) |
90950-01181 |
US $3.52 |
||
|
9095001189
|
9095001189
90950-01189 Plug, Hole, No.3(For Dash Panel) |
90950-01189 |
US $3.79 |
||
|
9095001310
|
9095001310
90950-01310 Plug, Hole |
90950-01310 |
from US $7.04 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.28 |
||
