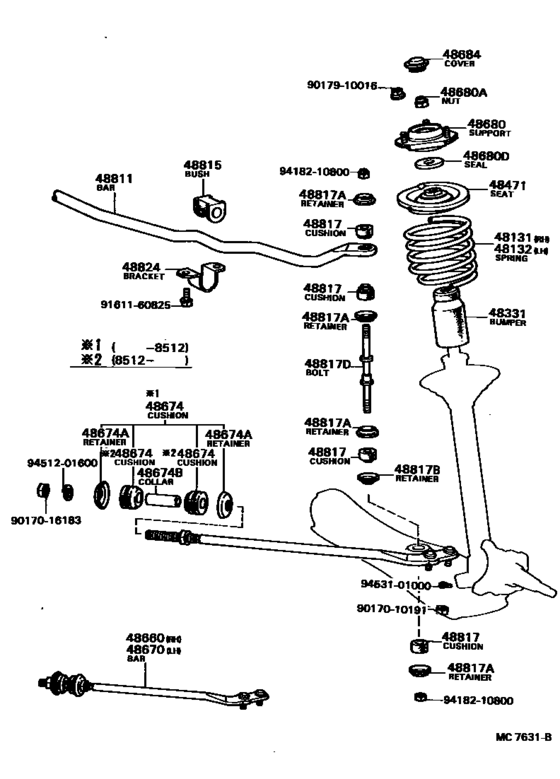

Front Spring & Shock Absorber ([02.1981 - 02.1983] (8102-8302) ; (8302- )GZ10,MZ10) Diagram Toyota SOARER
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- MZ10
- body
- CP
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- From
- 07.1981
- To
- 02.1983
- Grade
- V2
- Gear Shift Type
- 4FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-24070 Spring, Front Coil, Rh[02.1981 - 02.1983] MZ1# |
48131-24070 |
US $144.14 |
||
| replacement | |||||
|
48131
|
48131
48131-24030 Spring, Front Coil, Lh[02.1981 - 02.1983] MZ1# |
48131-24030 |
US $145.60 |
||
|
48131
|
48131
48131-24100 Spring, Front Coil, Rh[02.1983 - 12.1985] MZ10 |
48131-24100 |
US $144.14 |
||
|
48132
|
48132
48131-24030 Spring, Front Coil, Lh[02.1981 - 02.1983] MZ1# |
48131-24030 |
US $145.60 |
||
|
48132
|
48132
48131-24110 Spring, Front Coil, Lh[02.1983 - 12.1985] MZ10 |
48131-24110 |
US $144.14 |
||
| replacement | |||||
|
48132
|
48132
48131-24100 Spring, Front Coil, Rh[02.1983 - 12.1985] MZ10 |
48131-24100 |
US $144.14 |
||
|
48331
|
48331
48331-14020 Bumper, Front Spring, No.1[02.1981 - 02.1983] GZ10,MZ1# |
48331-14020 |
US $16 |
||
|
48471
|
48471
48044-24010
Seat, Front Spring, Upper
[02.1981 - 02.1983] GZ10,MZ1# |
48044-24010 |
— | ||
|
48660
|
48660
48660-19146
Bar Assy, Strut, Rh
[08.1981 - 12.1985] GZ10,MZ1# |
48660-19146 |
— | ||
| replacement | |||||
|
48660
|
48660
48660-24010
Bar Assy, Strut, Rh
[08.1981 - 12.1985] GZ10,MZ1# |
48660-24010 |
— | ||
|
48660
|
48660
48660-29105 Bar Assy, Strut, Rh[02.1981 - 08.1981] GZ10,MZ1# |
48660-29105 |
US $51.54 |
||
| replacement | |||||
|
48660
|
48660
48660-24010
Bar Assy, Strut, Rh
[02.1981 - 08.1981] GZ10,MZ1# |
48660-24010 |
— | ||
|
48670
|
48670
48670-19135
Bar Assy, Strut, Lh
[08.1981 - 03.1983] GZ10,MZ1# |
48670-19135 |
— | ||
| replacement | |||||
|
48670
|
48670
48670-24010
Bar Assy, Strut, Lh
[08.1981 - 03.1983] GZ10,MZ1# |
48670-24010 |
— | ||
|
48670
|
48670
48670-29105 Bar Assy, Strut, Lh[02.1981 - 08.1981] GZ10,MZ1# |
48670-29105 |
US $51.54 |
||
| replacement | |||||
|
48670
|
48670
48670-24010
Bar Assy, Strut, Lh
[02.1981 - 08.1981] GZ10,MZ1# |
48670-24010 |
— | ||
|
48674
|
48674
48674-19058 Cushion, Strut Bar[08.1981 - 03.1983] GZ10,MZ1# LH |
48674-19058 |
US $29.79 |
||
|
48674
|
48674
48674-29045 Cushion, Strut Bar[08.1981 - 03.1983] GZ10,MZ1# RH |
48674-29045 |
US $23.88 |
||
|
48674
|
48674
48674-29055
Cushion, Strut Bar
[02.1981 - 08.1981] GZ10,MZ1# |
48674-29055 |
— | ||
| replacements | |||||
|
48674
|
48674
48674-19058 Cushion, Strut Bar[02.1981 - 08.1981] GZ10,MZ1# |
48674-19058 |
US $29.79 |
||
|
48674
|
48674
48674-29045 Cushion, Strut Bar[02.1981 - 08.1981] GZ10,MZ1# |
48674-29045 |
US $23.88 |
||
|
48674A
|
48674A
90948-02036 Retainer, Cushion(For Strut Bar Cushion)[02.1981 - 12.1985] GZ10,MZ1# |
90948-02036 |
US $8.64 |
||
|
48674B
|
48674B
90387-16108 Collar(For Strut Bar Cushion)[02.1981 - 12.1985] GZ10,MZ1# |
90387-16108 |
US $8.64 |
||
|
48680
|
48680
48609-24010 Support Assy, Front SuspensionFRONT SUSPENSION [02.1981 - 02.1983] GZ10,MZ1# |
48609-24010 |
US $87.36 |
||
|
48680A
|
48680A
94182-11400 Nut(For Idler Arm Support)[02.1981 - 12.1985] GZ10,MZ1# |
94182-11400 |
US $4.96 |
||
|
48680D
|
48680D
90303-22049 Seal, Dust(For Front Suspension Support)[02.1981 - 02.1983] GZ10,MZ1# |
90303-22049 |
from US $4.02 |
||
|
48684
|
48684
48684-14020 Cover, Bearing Dust[02.1981 - 02.1983] GZ10,MZ1# |
48684-14020 |
US $3.68 |
||
|
48811
|
48811
48811-24020 Bar, Stabilizer, FrontSTABILIZER, FRONT [02.1981 - 12.1985] GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
48811-24020 |
US $165.98 |
||
|
48815
|
48815
48815-24020 Bush, Front Stabilizer Bar, No.1[02.1981 - 12.1985] GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
48815-24020 |
US $9.44 |
||
|
48817
|
48817
48817-22010
Cushion, Front Stabilizer
[02.1981 - 02.1983] GZ10,MZ1# |
48817-22010 |
— | ||
| replacement | |||||
|
48817
|
48817
48817-22020 Cushion, Front Stabilizer[02.1981 - 02.1983] GZ10,MZ1# |
48817-22020 |
US $8.16 |
||
|
48817
|
48817
48817-22020 Cushion, Front Stabilizer[02.1983 - 12.1985] GZ10,MZ1# |
48817-22020 |
US $8.16 |
||
|
48817A
|
48817A
90948-02032 Retainer, Cushion, No.1(For Front Stabilizer Bar)[02.1981 - 12.1985] GZ10,MZ1# |
90948-02032 |
US $3.20 |
||
|
48817B
|
48817B
90948-02015 Retainer, Cushion, No.1(For Front Stabilizer Bar)[02.1981 - 12.1985] GZ10,MZ1# |
90948-02015 |
from US $0.90 |
||
|
48817D
|
48817D
48819-24010 Bolt(For Front Stabilizer)[02.1981 - 12.1985] GZ10,MZ1# |
48819-24010 |
US $8.16 |
||
|
48824
|
48824
48824-24010
Cover, Stabilizer Link(For Rear)
[02.1981 - 12.1985] GZ10,MZ1# |
48824-24010 |
— | ||
|
9017010191
|
9017010191
90170-10191 Nut(For Rear Drive Shaft) |
90170-10191 |
US $1.76 |
||
|
9017016183
|
9017016183
90170-16183 New Genuine Part |
90170-16183 |
US $3.84 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.99 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9418210800
|
9418210800
94182-10800 Nut |
94182-10800 |
from US $1.44 |
||
|
9451201600
|
9451201600
94512-01600
Washer(For Center Arm Shaft)
|
94512-01600 |
— | ||
| replacement | |||||
|
9451201600
|
9451201600
90204-16001 Washer(For Center Arm Shaft) |
90204-16001 |
US $2.72 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
