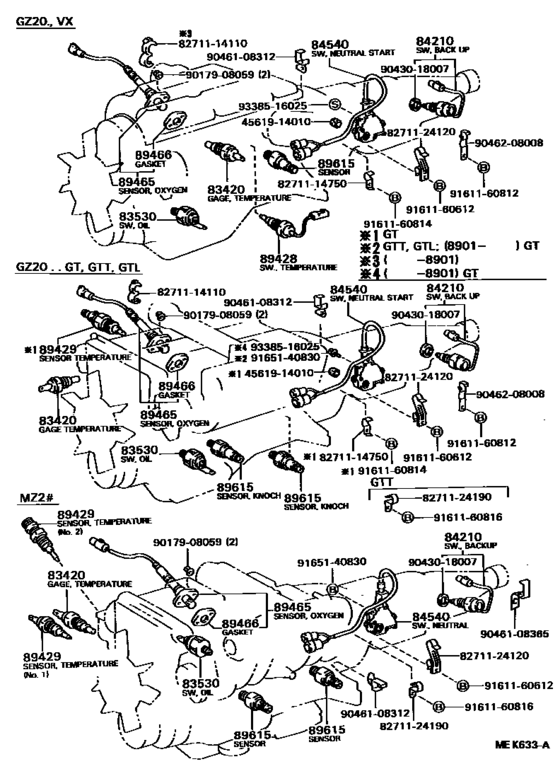

Switch & Relay & Computer ([01.1988 - ] (8801- )) Diagram Toyota SOARER
- Year
- 1988 - 1991
- Sales region
- Japan
- Frame
- MZ21
- grade
- GTL
- body
- CP
- ENGINE
- 7MGTEU
- TRANSMISSION
- MTM
- From
- 01.1988
- To
- 04.1991
- Gear Shift Type
- 5F
- Vehicle Model
- SOARER
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[01.1988 - 04.1991] GZ20,MZ2# |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-14020 Switch Assy, Oil Pressure (For Engine)[01.1988 - 09.1988] GZ20,MZ2# |
83530-14020 |
US $17.91 |
||
| replacement | |||||
|
83530
|
83530
83530-60040 Switch Assy, Oil Pressure (For Engine)[01.1988 - 09.1988] GZ20,MZ2# |
83530-60040 |
from US $32.58 |
||
|
83530
|
83530
83530-30050
Switch Assy, Oil Pressure (For Engine)
[09.1988 - 04.1991] GZ20,MZ2# |
83530-30050 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[09.1988 - 04.1991] GZ20,MZ2# |
83530-60050 |
from US $30.54 |
||
|
84210
|
84210
84210-35030 Switch Assy, Back-Up Lamp[01.1988 - 04.1991] MZ2#..5F |
84210-35030 |
US $41.65 |
||
|
89429
|
89429
88790-24090
Thermistor, Cooler
[01.1988 - 04.1991] GZ20..TWC; MZ2# ＮＯ．２ |
88790-24090 |
— | ||
|
89429
|
89429
88790-24110
Thermistor, Cooler
[01.1988 - 04.1991] MZ2# ＮＯ．１ |
88790-24110 |
— | ||
|
89465
|
89465
89465-29155 Sensor, Oxygen[01.1988 - 04.1989] MZ2# |
89465-29155 |
US $136.86 |
||
| replacement | |||||
|
89465
|
89465
89465-29156 Sensor, Oxygen[01.1988 - 04.1989] MZ2# |
89465-29156 |
US $145.60 |
||
|
89465
|
89465
89465-29156 Sensor, Oxygen[04.1989 - 04.1991] MZ2# |
89465-29156 |
US $145.60 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[10.1988 - 04.1991] GZ20,MZ2#..TWT |
89466-20020 |
from US $13.88 |
||
|
89466
|
89466
89466-30010
Gasket(For Exhaust Manifold Plate)
[01.1988 - 10.1988] GZ20,MZ2#..TWT |
89466-30010 |
— | ||
| replacement | |||||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[01.1988 - 10.1988] GZ20,MZ2#..TWT |
89466-20020 |
from US $13.88 |
||
|
89615
|
89615
89615-30020 Sensor, Knock Control[01.1988 - 04.1991] GZ20,MZ2#..TWT |
89615-30020 |
US $212.16 |
||
|
4561914010
|
4561914010
45619-14010 Cover, Knuckle Stopper |
45619-14010 |
US $8.64 |
||
|
8271114110
|
8271114110
82711-14110 Clamp(For Hood Lock Control Cable) |
82711-14110 |
US $2.72 |
||
|
8271114750
|
8271114750
82711-14750 Wire, Fuse To Fuse(for Combustion Heater) |
82711-14750 |
US $5.10 |
||
|
8271124120
|
8271124120
82711-24120 Wire, Fuse To Fuse(for Combustion Heater) |
82711-24120 |
US $13.10 |
||
|
8271124190
|
8271124190
82711-24190 Wire, Fuse To Fuse(for Combustion Heater) |
82711-24190 |
US $7.72 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
|
9046108312
|
9046108312
90461-08312 New Genuine Part |
90461-08312 |
US $4.89 |
||
|
9046108365
|
9046108365
90461-08365 New Genuine Part |
90461-08365 |
US $4.89 |
||
|
9046208008
|
9046208008
90462-08008 New Genuine Part |
90462-08008 |
US $4.37 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
