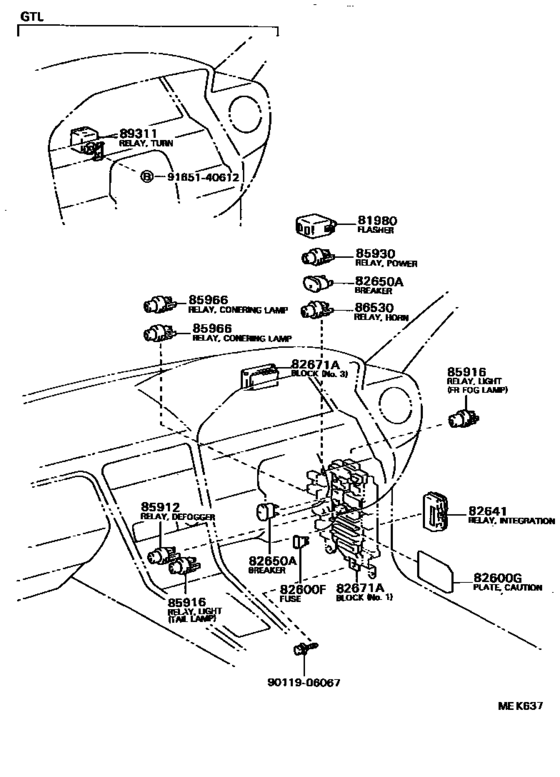

Switch & Relay & Computer ([01.1988 - ] (8801- )) Diagram Toyota SOARER
- Year
- 1988 - 1991
- Sales region
- Japan
- Frame
- MZ21
- grade
- GTL
- body
- CP
- ENGINE
- 7MGTEU
- TRANSMISSION
- MTM
- From
- 01.1988
- To
- 04.1991
- Gear Shift Type
- 5F
- Vehicle Model
- SOARER
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09002 Fusible Link[01.1988 - 04.1991] GZ20,MZ2# １０Ａ |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[01.1988 - 04.1991] MZ2#..GTL １５Ａ |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[01.1988 - 04.1991] GZ20,MZ2# ２０Ａ |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[01.1988 - 04.1991] GZ20,MZ2# ７．５Ａ |
90982-09005 |
from US $1.09 |
||
|
82600G
|
82600G
82683-24030 Plate, Caution(For Fuse)[01.1988 - 04.1991] GZ20,MZ2# |
82683-24030 |
US $4.08 |
||
|
82641
|
82641
82641-24010 Relay, Integration No.1[01.1988 - 04.1991] MZ2#..GTL |
82641-24010 |
US $147.06 |
||
|
82650A
|
82650A
82650-20011 Breaker Assy, Wiring Circuit, No.1[01.1988 - 04.1991] GZ20,MZ2# ３０Ａ |
82650-20011 |
US $14.08 |
||
|
82650A
|
82650A
82650-20020 Breaker Assy, Wiring Circuit, No.1[01.1988 - 04.1991] GZ20,MZ2# ４０Ａ |
82650-20020 |
US $17.04 |
||
|
82671A
|
82671A
82671-20030
Block Assy, Junction, No.1
[01.1988 - 04.1991] GZ20,MZ2# ＮＯ．１ |
82671-20030 |
— | ||
|
82671A
|
82671A
82671-24010
Block Assy, Junction, No.1
[01.1988 - 04.1991] GZ20,MZ2# NO.2 |
82671-24010 |
— | ||
|
82671A
|
82671A
82671-24030 Block, Junction[01.1988 - 04.1991] GZ20,MZ2# ＮＯ．３ |
82671-24030 |
US $85.90 |
||
|
85912
|
85912
90987-02002
Relay, Ignition, No.1
[01.1988 - 04.1991] GZ20,MZ2# ＭＡＲＵＫＯ |
90987-02002 |
— | ||
| replacement | |||||
|
85912
|
85912
90987-02004 Relay Assy, Starter[01.1988 - 04.1991] GZ20,MZ2# ＭＡＲＵＫＯ |
90987-02004 |
from US $28.70 |
||
|
85912
|
85912
90987-02004 Relay Assy, Starter[01.1988 - 04.1991] GZ20,MZ2# NIPONDENSO |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[01.1988 - 04.1991] GZ20,MZ2# MARUKO,TAIL LAMP OR FR FOG LAMP |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[01.1988 - 04.1991] GZ20,MZ2# MARUKO,TAIL LAMP OR FR FOG LAMP |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[01.1988 - 04.1991] GZ20,MZ2# NIPONDENSO,TAIL LAMP OR FR FOG LAMP |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02006 Relay[01.1988 - 04.1991] GZ20,MZ2# HEADLAMP |
90987-02006 |
from US $27.65 |
||
|
85930
|
85930
90987-02002
Relay, Ignition, No.1
[01.1988 - 04.1991] GZ20,MZ2# ＭＡＲＵＫＯ |
90987-02002 |
— | ||
| replacement | |||||
|
85930
|
85930
90987-02004 Relay Assy, Starter[01.1988 - 04.1991] GZ20,MZ2# ＭＡＲＵＫＯ |
90987-02004 |
from US $28.70 |
||
|
85930
|
85930
90987-02004 Relay Assy, Starter[01.1988 - 04.1991] GZ20,MZ2# ＮＩＰＰＯＮＤＥＮＳＯ |
90987-02004 |
from US $28.70 |
||
|
85966
|
85966
90987-02004 Relay Assy, Starter[01.1988 - 04.1991] MZ2#..GTL |
90987-02004 |
from US $28.70 |
||
|
86530
|
86530
90987-02002
Relay, Ignition, No.1
[01.1988 - 05.1989] GZ20,MZ2# ＭＡＲＵＫＯ |
90987-02002 |
— | ||
| replacement | |||||
|
86530
|
86530
90987-02004 Relay Assy, Starter[01.1988 - 05.1989] GZ20,MZ2# ＭＡＲＵＫＯ |
90987-02004 |
from US $28.70 |
||
|
86530
|
86530
90987-02004 Relay Assy, Starter[01.1988 - 05.1989] GZ20,MZ2# ＮＩＰＰＯＮＤＥＮＳＯ |
90987-02004 |
from US $28.70 |
||
|
89311
|
89311
89311-24010 Relay, Turn Signal[01.1988 - 04.1991] MZ2#..GTL |
89311-24010 |
US $91.73 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
