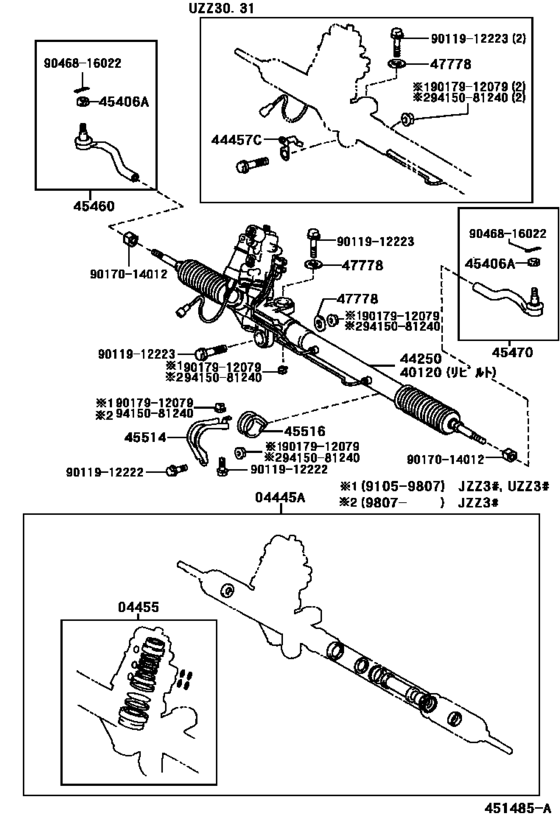

Front Steering Gear & Link ([05.1991 - 01.1994] (9105-9401)JZZ30,UZZ30,31 ; (9401- )JZZ3#,UZZ 31) Diagram Toyota SOARER
- Year
- 1991 - 1994
- Sales region
- Japan
- Frame
- UZZ30
- grade
- GT
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- From
- 05.1991
- To
- 01.1994
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-24050
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[05.1991 - 12.1992] JZZ30,UZZ30,31 |
04445-24050 |
— | ||
| replacement | |||||
|
04445A
|
04445A
04445-24051
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[05.1991 - 12.1992] JZZ30,UZZ30,31 |
04445-24051 |
— | ||
|
04445A
|
04445A
04445-24051
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[12.1992 - 12.2000] JZZ3#,UZZ3# |
04445-24051 |
— | ||
|
04455
|
04455
04455-24050 Gasket Kit, Power Steering Control Valve Overhole[05.1991 - 12.1992] JZZ30,UZZ3# |
04455-24050 |
US $41.64 |
||
| replacement | |||||
|
04455
|
04455
04455-24051 Gasket Kit, Power Steering Control Valve Overhole[05.1991 - 12.1992] JZZ30,UZZ3# |
04455-24051 |
US $43.85 |
||
|
04455
|
04455
04455-24051 Gasket Kit, Power Steering Control Valve Overhole[12.1992 - 12.2000] JZZ3#,UZZ3# |
04455-24051 |
US $43.85 |
||
|
40120
|
40120
40120-24090
Gear Assy,power Steering,rebuilt
[05.1991 - 01.1994] JZZ30,UZZ30,31 ＴＯＹＯＤＡ ＫＯＫＩ |
40120-24090 |
— | ||
|
44250
|
44250
44250-24090
Gear Assy, Power Steering(For Rack & Pinion)
[05.1991 - 01.1994] JZZ30,UZZ30,31 |
44250-24090 |
— | ||
|
44457C
|
44457C
44457-24140 Bracket, Power Steering Tube Support, No.1[05.1991 - 09.1997] UZZ3# |
44457-24140 |
US $12.38 |
||
|
45406A
|
45406A
90171-12002 Nut, Castle(For Tie Rod End)[05.1993 -] JZZ3#,UZZ3# |
90171-12002 |
from US $1.19 |
||
|
45406A
|
45406A
90171-12028 Nut, Castle(For Pitman Arm)[05.1991 - 05.1993] JZZ30,UZZ3# |
90171-12028 |
from US $1.42 |
||
|
45460
|
45460
45460-29365
Rod Assy, Tie, Rh
[05.1991 - 01.1994] JZZ30,UZZ3# |
45460-29365 |
— | ||
|
45470
|
45470
45470-29135
Rod Assy, Tie, Lh
[05.1991 - 01.1994] JZZ30,UZZ3# |
45470-29135 |
— | ||
|
45514
|
45514
45515-24030 Bracket, Steering Rack Housing, No.1[05.1991 -] JZZ3#,UZZ3# |
45515-24030 |
US $21.32 |
||
|
45516
|
45516
45517-24030
Grommet, Steering Rack Housing, No.1
[05.1991 -] JZZ3#,UZZ3# |
45517-24030 |
— | ||
|
47778
|
47778
47778-24010 Retainer, Steering Rack Housing[05.1991 - 09.1997] UZZ30,31 |
47778-24010 |
US $11.53 |
||
|
9011912222
|
9011912222
90119-12222 New Genuine Part |
90119-12222 |
US $4.02 |
||
|
9011912223
|
9011912223
90119-12223 New Genuine Part |
90119-12223 |
US $5.24 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9017912079
|
9017912079
90179-12079 New Genuine Part |
90179-12079 |
US $1.46 |
||
|
9046816022
|
9046816022
90468-16022 CLIP |
90468-16022 |
US $1.44 |
||
|
9415081240
|
9415081240
94150-81240 New Genuine Part |
94150-81240 |
US $0.96 |
||
