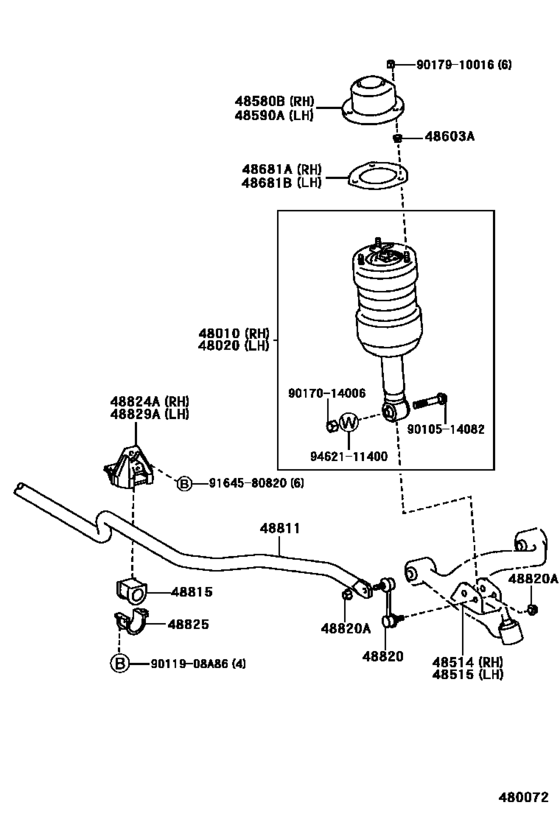

Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31) Diagram Toyota SOARER
- Year
- 1991 - 1997
- Sales region
- Japan
- Frame
- UZZ31
- grade
- GTL
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- From
- 05.1991
- To
- 09.1997
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48010
|
48010
48010-29035
Cylinder Assy, Pneumatic, Front Rh W/shock Absorber
[05.1991 - 06.1995] UZZ31 |
48010-29035 |
— | ||
| replacement | |||||
|
48010
|
48010
48010-24051
Cylinder Assy, Pneumatic, Front Rh W/shock Absorber
[05.1991 - 06.1995] UZZ31 |
48010-24051 |
— | ||
|
48010
|
48010
48010-29036
Cylinder Assy, Pneumatic, Front Rh W/shock Absorber
[06.1995 - 09.1997] UZZ31 |
48010-29036 |
— | ||
| replacement | |||||
|
48010
|
48010
48010-24051
Cylinder Assy, Pneumatic, Front Rh W/shock Absorber
[06.1995 - 09.1997] UZZ31 |
48010-24051 |
— | ||
|
48020
|
48020
48020-29015 Cylinder Assy, Pneumatic, Front Lh W/shock Absorber[05.1991 - 06.1995] UZZ31 |
48020-29015 |
US $827.01 |
||
| replacement | |||||
|
48020
|
48020
48020-24031
Cylinder Assy, Pneumatic, Front Lh W/shock Absorber
[05.1991 - 06.1995] UZZ31 |
48020-24031 |
— | ||
|
48020
|
48020
48020-29016
Cylinder Assy, Pneumatic, Front Lh W/shock Absorber
[06.1995 - 09.1997] UZZ31 |
48020-29016 |
— | ||
| replacement | |||||
|
48020
|
48020
48020-24031
Cylinder Assy, Pneumatic, Front Lh W/shock Absorber
[06.1995 - 09.1997] UZZ31 |
48020-24031 |
— | ||
|
48514
|
48514
48514-24010 Bracket, Front Shock Absorber, Lower Rh[05.1991 - 04.1993] UZZ31 |
48514-24010 |
US $24.29 |
||
|
48515
|
48515
48515-24010 Bracket, Front Shock Absorber, Lower Lh[05.1991 - 04.1993] JZZ30,UZZ31 |
48515-24010 |
US $24.29 |
||
|
48580B
|
48580B
48553-24110
Cap Assy, Front Shock Absorber, Rh
[09.1993 - 01.1994] UZZ31 |
48553-24110 |
— | ||
|
48580B
|
48580B
48553-24120
Cap Assy, Front Shock Absorber, Rh
[08.1993 - 09.1993] JZZ30,UZZ31..GTL,GTTL |
48553-24120 |
— | ||
| replacement | |||||
|
48580B
|
48580B
48553-24110
Cap Assy, Front Shock Absorber, Rh
[08.1993 - 09.1993] JZZ30,UZZ31..GTL,GTTL |
48553-24110 |
— | ||
|
48580B
|
48580B
48580-24030 Cap Assy, Front Shock Absorber, Rh[09.1991 - 09.1992] UZZ31 |
48580-24030 |
US $30.87 |
||
| replacement | |||||
|
48580B
|
48580B
48580-24050 Cap Assy, Front Shock Absorber, Rh[09.1991 - 09.1992] UZZ31 |
48580-24050 |
US $30.87 |
||
|
48580B
|
48580B
48580-24031 Cap Assy, Front Shock Absorber, Rh[09.1992 - 12.1992] UZZ31 |
48580-24031 |
US $30.87 |
||
| replacement | |||||
|
48580B
|
48580B
48580-24050 Cap Assy, Front Shock Absorber, Rh[09.1992 - 12.1992] UZZ31 |
48580-24050 |
US $30.87 |
||
|
48580B
|
48580B
48580-24050 Cap Assy, Front Shock Absorber, Rh[12.1992 - 08.1993] UZZ31 |
48580-24050 |
US $30.87 |
||
|
48580B
|
48580B
48580-50010 Cap Assy, Front Shock Absorber, Rh[05.1991 - 09.1991] UZZ31 |
48580-50010 |
US $30.87 |
||
| replacement | |||||
|
48580B
|
48580B
48553-50090 Cap, Shock Absorber, Upper[05.1991 - 09.1991] UZZ31 |
48553-50090 |
US $30.93 |
||
|
48590A
|
48590A
48553-24110
Cap Assy, Front Shock Absorber, Rh
[09.1993 - 01.1994] UZZ31 |
48553-24110 |
— | ||
|
48590A
|
48590A
48553-24120
Cap Assy, Front Shock Absorber, Rh
[08.1993 - 09.1993] JZZ30,UZZ31..GTL,GTTL |
48553-24120 |
— | ||
| replacement | |||||
|
48590A
|
48590A
48553-24110
Cap Assy, Front Shock Absorber, Rh
[08.1993 - 09.1993] JZZ30,UZZ31..GTL,GTTL |
48553-24110 |
— | ||
|
48590A
|
48590A
48580-24050 Cap Assy, Front Shock Absorber, Rh[12.1992 - 08.1993] UZZ31 |
48580-24050 |
US $30.87 |
||
|
48590A
|
48590A
48590-24030 Cap Assy, Front Shock Absorber, Lh[09.1991 - 09.1992] UZZ31 |
48590-24030 |
US $30.87 |
||
| replacement | |||||
|
48590A
|
48590A
48580-24050 Cap Assy, Front Shock Absorber, Rh[09.1991 - 09.1992] UZZ31 |
48580-24050 |
US $30.87 |
||
|
48590A
|
48590A
48590-24031 Cap Assy, Front Shock Absorber, Lh[09.1992 - 12.1992] UZZ31 |
48590-24031 |
US $30.87 |
||
| replacement | |||||
|
48590A
|
48590A
48580-24050 Cap Assy, Front Shock Absorber, Rh[09.1992 - 12.1992] UZZ31 |
48580-24050 |
US $30.87 |
||
|
48590A
|
48590A
48590-50010 Cap Assy, Front Shock Absorber, Lh[05.1991 - 09.1991] UZZ31 |
48590-50010 |
US $30.87 |
||
| replacement | |||||
|
48590A
|
48590A
48553-50090 Cap, Shock Absorber, Upper[05.1991 - 09.1991] UZZ31 |
48553-50090 |
US $30.93 |
||
|
48603A
|
48603A
90179-10016
Nut(For Counter Gear Shaft)
[05.1991 - 08.1996] JZZ30,UZZ31..GTL,GTTL |
90179-10016 |
— | ||
| replacement | |||||
|
48603A
|
48603A
90179-10132 Nut[05.1991 - 08.1996] JZZ30,UZZ31..GTL,GTTL |
90179-10132 |
from US $0.98 |
||
|
48603A
|
48603A
90179-10200 Nut(For Front Suspension Support)[08.1996 -] JZZ3#,UZZ31 |
90179-10200 |
US $1.28 |
||
|
48681A
|
48681A
48681-24040 Support, Front Suspension, No.1[05.1991 - 09.1997] UZZ31 |
48681-24040 |
US $27.26 |
||
|
48681B
|
48681B
48681-24040 Support, Front Suspension, No.1[05.1991 - 09.1997] UZZ31 |
48681-24040 |
US $27.26 |
||
|
48811
|
48811
48811-24070 Bar, Stabilizer, Front[01.1994 - 08.1996] JZZ31,UZZ31 |
48811-24070 |
US $208.21 |
||
|
48811
|
48811
48811-24090 Bar, Stabilizer, Front[05.1991 - 01.1994] UZZ31 |
48811-24090 |
US $189.28 |
||
|
48811
|
48811
48811-24120 Bar, Stabilizer, Front[08.1996 -] JZZ31,UZZ31 |
48811-24120 |
US $206.75 |
||
|
48815
|
48815
48815-24050 Bush, Front Stabilizer Bar, No.1[05.1991 - 01.1994] JZZ30,UZZ30,31 |
48815-24050 |
US $12.52 |
||
| replacement | |||||
|
48815
|
48815
48815-24051 Bush, Front Stabilizer Bar, No.1[05.1991 - 01.1994] JZZ30,UZZ30,31 |
48815-24051 |
US $12.23 |
||
|
48815
|
48815
48815-24051 Bush, Front Stabilizer Bar, No.1[01.1994 -] JZZ3#,UZZ31 |
48815-24051 |
US $12.23 |
||
|
48820
|
48820
48820-24010 Link Assy, Front Stabilizer, Lh[05.1991 -] JZZ3#,UZZ30,31 |
48820-24010 |
US $68.10 |
||
|
48820A
|
48820A
90179-10054 Nut, No.1 (For Center Support Bearing)[05.1991 -] JZZ3#,UZZ30,31 |
90179-10054 |
from US $0.90 |
||
|
48824A
|
48824A
48809-24010 Bracket, Front Stabilizer, No.1 Rh[05.1991 -] JZZ3#,UZZ30,31 |
48809-24010 |
US $18.17 |
||
|
48825
|
48825
48824-24030
Bracket, Stabilizer, No.2
[05.1991 -] JZZ3#,UZZ30,31 |
48824-24030 |
— | ||
|
48829A
|
48829A
48809-24020 Bracket, Front Stabilizer, No.1 Lh[05.1991 -] JZZ3#,UZZ30,31 |
48809-24020 |
US $18.17 |
||
|
9011908A86
|
9011908A86
90119-08A86 New Genuine Part |
90119-08A86 |
US $1.92 |
||
|
9010514082
|
9010514082
90105-14082 BOLT, WASHER BASED |
90105-14082 |
US $6.24 |
||
|
9017014006
|
9017014006
90170-14006 Nut |
90170-14006 |
from US $1.92 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9164580820
|
9164580820
91645-80820
New Genuine Part
|
91645-80820 |
— | ||
| replacement | |||||
|
9164580820
|
9164580820
91641-K0816 BOLT WWASHER |
91641-K0816 |
US $2.08 |
||
|
9462111400
|
9462111400
94621-11400 WASHER |
94621-11400 |
from US $2.56 |
||
