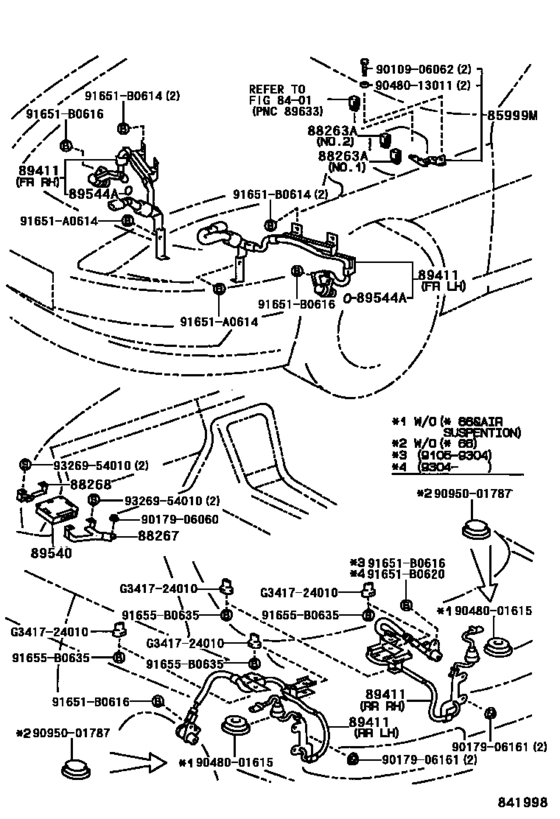

Abs & Vsc ([05.1991 - 01.1994] (9105-9401)) Diagram Toyota SOARER
- Year
- 1991 - 1996
- Sales region
- Japan
- Frame
- UZZ32
- grade
- GTL
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- From
- 05.1991
- To
- 08.1996
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85999M
|
85999M
85999-24050 Bracket, Relay[05.1991 -] JZZ3#,UZZ3# |
85999-24050 |
US $10.92 |
||
|
88263A
|
88263A
88263-24020 Relay, Skid Control[05.1991 -] JZZ3#,UZZ3# ＮＯ．１（ブラウン） |
88263-24020 |
from US $45.98 |
||
|
88263A
|
88263A
88263-24030 Relay, Skid Control[05.1991 -] JZZ3#,UZZ3# NO.2(ｸﾞﾚ-) |
88263-24030 |
from US $48.40 |
||
|
88267
|
88267
88267-24050 Bracket, Skid Control Computer, No.1[05.1991 - 08.1996] JZZ30,UZZ3#..ATM ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
88267-24050 |
US $12.81 |
||
|
88268
|
88268
88268-24050 Bracket, Skid Control Computer, No.2[05.1991 - 08.1996] JZZ30,UZZ3#..ATM ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
88268-24050 |
US $12.23 |
||
|
89411
|
89411
89542-14020
Sensor, Speed
[03.1993 - 08.1996] JZZ3#,UZZ3# フロント右側 |
89542-14020 |
— | ||
| replacement | |||||
|
89411
|
89411
89542-14030
Sensor, Speed
[03.1993 - 08.1996] JZZ3#,UZZ3# フロント右側 |
89542-14030 |
— | ||
|
89411
|
89411
89542-24010
Sensor, Speed
[05.1991 - 03.1993] JZZ30,UZZ3# フロント右側 |
89542-24010 |
— | ||
| replacement | |||||
|
89411
|
89411
89542-14030
Sensor, Speed
[05.1991 - 03.1993] JZZ30,UZZ3# フロント右側 |
89542-14030 |
— | ||
|
89411
|
89411
89543-14020
Sensor, Speed
[03.1993 - 08.1996] JZZ3#,UZZ3# フロント左側 |
89543-14020 |
— | ||
| replacement | |||||
|
89411
|
89411
89543-14030
Sensor, Speed
[03.1993 - 08.1996] JZZ3#,UZZ3# フロント左側 |
89543-14030 |
— | ||
|
89411
|
89411
89543-24010 Sensor, Speed[05.1991 - 03.1993] JZZ30,UZZ3# フロント左側 |
89543-24010 |
US $292.66 |
||
| replacement | |||||
|
89411
|
89411
89543-14030
Sensor, Speed
[05.1991 - 03.1993] JZZ30,UZZ3# フロント左側 |
89543-14030 |
— | ||
|
89411
|
89411
89545-24010
Sensor, Speed
[05.1991 - 04.1993] JZZ30,UZZ3# リヤ右側 |
89545-24010 |
— | ||
| replacements | |||||
|
89411
|
89411
89545-30020
Sensor, Speed
[05.1991 - 04.1993] JZZ30,UZZ3# リヤ右側 |
89545-30020 |
— | ||
|
89411
|
89411
91651-B0620 New Genuine Part[05.1991 - 04.1993] JZZ30,UZZ3# リヤ右側 |
91651-B0620 |
US $1.12 |
||
|
89411
|
89411
89545-30020
Sensor, Speed
[04.1993 - 08.1996] JZZ3#,UZZ3# リヤ右側 |
89545-30020 |
— | ||
|
89411
|
89411
89546-24010
Sensor, Speed
[05.1991 - 04.1993] JZZ30,UZZ3# リヤ左側 |
89546-24010 |
— | ||
| replacements | |||||
|
89411
|
89411
89546-30020
Sensor, Speed
[05.1991 - 04.1993] JZZ30,UZZ3# リヤ左側 |
89546-30020 |
— | ||
|
89411
|
89411
91651-B0620 New Genuine Part[05.1991 - 04.1993] JZZ30,UZZ3# リヤ左側 |
91651-B0620 |
US $1.12 |
||
|
89411
|
89411
89546-30020
Sensor, Speed
[04.1993 - 08.1996] JZZ3#,UZZ3# リヤ左側 |
89546-30020 |
— | ||
|
89540
|
89540
89541-24030 Computer Assy, Skid Control[05.1991 - 01.1994] JZZ30,UZZ3#..ATM ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
89541-24030 |
US $2,577.12 |
||
| replacement | |||||
|
89540
|
89540
89541-30010 Computer Assy, Skid Control[05.1991 - 01.1994] JZZ30,UZZ3#..ATM ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
89541-30010 |
US $2,766.40 |
||
|
89540
|
89540
89541-30010 Computer Assy, Skid Control[01.1994 - 08.1996] JZZ30,UZZ3#..ATM ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
89541-30010 |
US $2,766.40 |
||
|
89544A
|
89544A
96721-19016 Ring, O(For Oil Pipe No.1)[05.1991 - 03.1993] JZZ30,UZZ3# |
96721-19016 |
US $3.06 |
||
|
91651A0614
|
91651A0614
91651-A0614
BOLT WWASHER
|
91651-A0614 |
— | ||
| replacement | |||||
|
91651A0614
|
91651A0614
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $0.96 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.86 |
||
|
91651B0620
|
91651B0620
91651-B0620 New Genuine Part |
91651-B0620 |
US $1.12 |
||
|
91655B0635
|
91655B0635
91655-B0635 New Genuine Part |
91655-B0635 |
US $1.60 |
||
| replacement | |||||
|
91655B0635
|
91655B0635
90119-06487 New Genuine Part |
90119-06487 |
US $1.31 |
||
|
9010906062
|
9010906062
90109-06062 New Genuine Part |
90109-06062 |
US $3.20 |
||
|
9017906060
|
9017906060
90179-06060 Nut, Wing(For Air Cleaner) |
90179-06060 |
US $2.08 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.84 |
||
|
9048001615
|
9048001615
90480-01615 New Genuine Part |
90480-01615 |
US $5.39 |
||
|
9048013011
|
9048013011
90480-13011 New Genuine Part |
90480-13011 |
US $8.01 |
||
|
9095001787
|
9095001787
90950-01787 New Genuine Part |
90950-01787 |
US $6.12 |
||
|
9326954010
|
9326954010
93269-54010 SCREW |
93269-54010 |
US $0.96 |
||
|
G341724010
|
G341724010
G3417-24010 New Genuine Part |
G3417-24010 |
US $7.43 |
||
