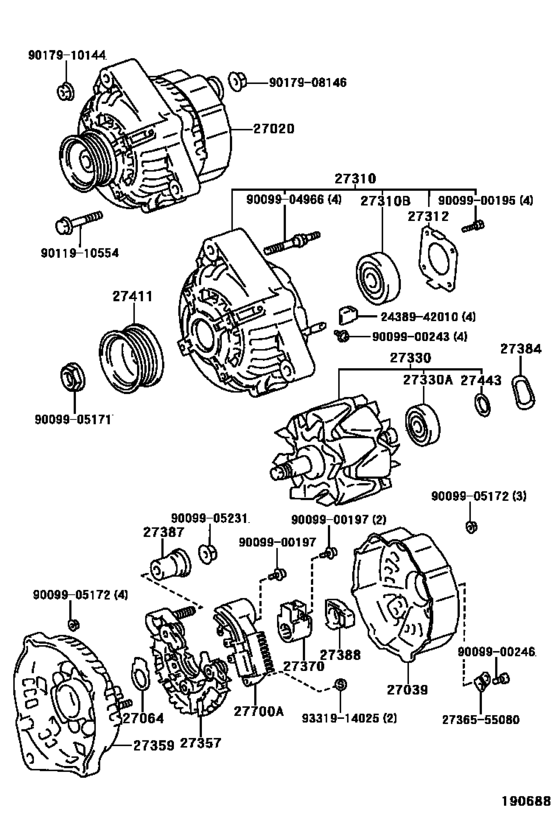

Alternator ([05.1991 - 08.1996] 12V 120A (9105-9608)1UZFE..UZZ32) Diagram Toyota SOARER
- Year
- 1991 - 1996
- Sales region
- Japan
- Frame
- UZZ32
- grade
- GTL
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- From
- 05.1991
- To
- 08.1996
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-50050 Alternator Assy[05.1991 - 01.1994] 1UZFE..UZZ32 １２Ｖ １２０Ａ |
27060-50050 |
US $1,936.48 |
||
|
27020
|
27020
27060-50150 Alternator Assy[01.1994 - 08.1996] 1UZFE..UZZ32 １２Ｖ １００Ａ |
27060-50150 |
US $1,805.44 |
||
|
27039
|
27039
27039-50070
Cover, Alternator Rear End
[05.1991 - 01.1994] 1UZFE..UZZ32 |
27039-50070 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-50060
Cover, Alternator Rear End
[05.1991 - 01.1994] 1UZFE..UZZ32 |
27039-50060 |
— | ||
|
27039
|
27039
27039-74420
Cover, Alternator Rear End
[01.1994 - 08.1996] 1UZFE..UZZ32 |
27039-74420 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[05.1991 -] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
27064-42010 |
from US $2.10 |
||
|
27310
|
27310
27310-50070
Frame Assy, Drive End, Alternator
[05.1991 - 08.1996] 1UZFE..UZZ32 |
27310-50070 |
— | ||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[05.1991 -] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
90099-10192 |
from US $15.03 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[05.1991 -] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
27312-42010 |
— | ||
|
27330
|
27330
27330-50070
Rotor Assy, Alternator
[05.1991 - 01.1994] 1UZFE..UZZ3# |
27330-50070 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-20070
Rotor Assy, Alternator
[05.1991 - 01.1994] 1UZFE..UZZ3# |
27330-20070 |
— | ||
|
27330A
|
27330A
90099-10194 Bearing(For Alternator Rotor)[05.1991 -] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
90099-10194 |
from US $8.56 |
||
|
27357
|
27357
27357-50070
Holder, Alternator, W/rectifier
[05.1991 - 01.1994] 1UZFE..UZZ32 |
27357-50070 |
— | ||
|
27357
|
27357
27357-74300
Holder, Alternator, W/rectifier
[01.1994 - 08.1996] 1UZFE..UZZ32 |
27357-74300 |
— | ||
|
27359
|
27359
27359-50070
Frame, Alternator Rectifier End
[05.1991 - 08.1996] 1UZFE..UZZ32 |
27359-50070 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[05.1991 -] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
27370-75060 |
from US $16.50 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[05.1991 -] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-50070
Insulator, Terminal
[05.1991 - 08.1996] 1UZFE..UZZ32 |
27387-50070 |
— | ||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[05.1991 - 01.1994] 1JZGTE,1UZFE..JZZ30,UZZ3# |
27388-42010 |
US $10.66 |
||
|
27411
|
27411
27411-50030
Pulley, Alternator
[05.1991 - 09.1997] 1UZFE..UZZ3# |
27411-50030 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[05.1991 -] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-46040 Regulator Assy, Generator[05.1991 - 01.1994] 1UZFE..UZZ3# |
27700-46040 |
US $263.54 |
||
|
27700A
|
27700A
27700-46050 Regulator Assy, Generator[01.1994 - 09.1997] 1UZFE..UZZ3# |
27700-46050 |
from US $141.18 |
||
|
2438942010
|
2438942010
24389-42010
New Genuine Part
|
24389-42010 |
— | ||
|
2736555080
|
2736555080
27365-55080
Plate, Terminal
|
27365-55080 |
— | ||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905231
|
9009905231
90099-05231
New Genuine Part
|
90099-05231 |
— | ||
|
9011910554
|
9011910554
90119-10554 New Genuine Part |
90119-10554 |
US $3.93 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9017910144
|
9017910144
90179-10144 NUT |
90179-10144 |
US $2.77 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
