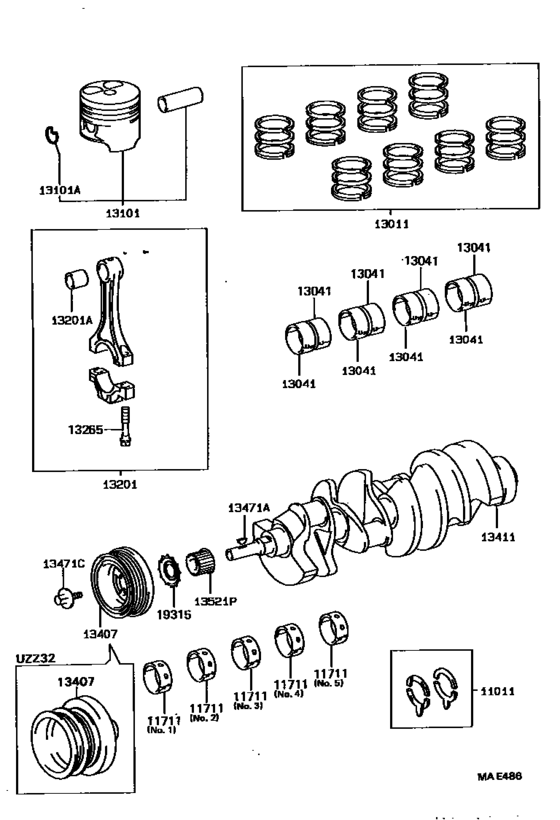

Crankshaft & Piston ([05.1991 - ] (9105- )1UZFE) Diagram Toyota SOARER
- Year
- 1991 - 1996
- Sales region
- Japan
- Frame
- UZZ32
- grade
- GTL
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- From
- 05.1991
- To
- 08.1996
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-50010 Washer Set, Crankshaft Thrust[05.1991 - 09.1997] 1UZFE..UZZ3# ＳＴＤ |
11011-50010 |
from US $29.53 |
||
|
11711
|
11711
11071-50010-01
Bearing, Crankshaft
[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 1,ＮＯ．２，３，４ |
11071-50010-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-50031-A1 Bearing, Crankshaft[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 1,ＮＯ．２，３，４ |
11071-50031-A1 |
from US $45.09 |
||
|
11711
|
11711
11071-50010-02
Bearing, Crankshaft
[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 2,ＮＯ．２，３，４ |
11071-50010-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-50031-B2 Bearing, Crankshaft[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 2,ＮＯ．２，３，４ |
11071-50031-B2 |
US $49.27 |
||
|
11711
|
11711
11071-50010-03
Bearing, Crankshaft
[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 3,ＮＯ．２，３，４ |
11071-50010-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-50031-C3 Bearing, Crankshaft[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 3,ＮＯ．２，３，４ |
11071-50031-C3 |
from US $63.95 |
||
|
11711
|
11711
11071-50010-04
Bearing, Crankshaft
[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 4,ＮＯ．２，３，４ |
11071-50010-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-50031-D4 Bearing, Crankshaft[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 4,ＮＯ．２，３，４ |
11071-50031-D4 |
US $63.95 |
||
|
11711
|
11711
11071-50010-05
Bearing, Crankshaft
[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 5,ＮＯ．２，３，４ |
11071-50010-05 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-50031-E5 Bearing, Crankshaft[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 5,ＮＯ．２，３，４ |
11071-50031-E5 |
US $63.95 |
||
|
11711
|
11711
11701-50010-01
Bearing, Crankshaft
[05.1991 - 05.1997] 1UZFE..UZZ3# MARK 1,ＮＯ．１，５ |
11701-50010-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-50041-C3 Bearing, Crankshaft[05.1991 - 05.1997] 1UZFE..UZZ3# MARK 1,ＮＯ．１，５ |
11701-50041-C3 |
US $57.22 |
||
|
11711
|
11711
11701-50010-02
Bearing, Crankshaft
[05.1991 - 05.1997] 1UZFE..UZZ3# MARK 2,ＮＯ．１，５ |
11701-50010-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-50041-D4 Bearing, Crankshaft[05.1991 - 05.1997] 1UZFE..UZZ3# MARK 2,ＮＯ．１，５ |
11701-50041-D4 |
US $55.56 |
||
|
11711
|
11711
11701-50010-03
Bearing, Crankshaft
[05.1991 - 05.1997] 1UZFE..UZZ3# MARK 3,ＮＯ．１，５ |
11701-50010-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-50041-C3 Bearing, Crankshaft[05.1991 - 05.1997] 1UZFE..UZZ3# MARK 3,ＮＯ．１，５ |
11701-50041-C3 |
US $57.22 |
||
|
11711
|
11711
11701-50010-04
Bearing, Crankshaft
[05.1991 - 05.1997] 1UZFE..UZZ3# MARK 4,ＮＯ．１，５ |
11701-50010-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-50041-D4 Bearing, Crankshaft[05.1991 - 05.1997] 1UZFE..UZZ3# MARK 4,ＮＯ．１，５ |
11701-50041-D4 |
US $55.56 |
||
|
11711
|
11711
11701-50010-05
Bearing, Crankshaft
[05.1991 - 05.1997] 1UZFE..UZZ3# MARK 5,ＮＯ．１，５ |
11701-50010-05 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-50041-E5 Bearing, Crankshaft[05.1991 - 05.1997] 1UZFE..UZZ3# MARK 5,ＮＯ．１，５ |
11701-50041-E5 |
US $60.10 |
||
|
11711
|
11711
11701-50010-06
Bearing, Crankshaft
[12.1994 - 05.1997] 1UZFE..UZZ3# MARK 6,ＮＯ．１，５ |
11701-50010-06 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-50041-F6 Bearing, Crankshaft[12.1994 - 05.1997] 1UZFE..UZZ3# MARK 6,ＮＯ．１，５ |
11701-50041-F6 |
US $55.56 |
||
|
11711
|
11711
11701-50010-07 Bearing, Crankshaft[12.1994 - 05.1997] 1UZFE..UZZ3# MARK 7,ＮＯ．１，５ |
11701-50010-07 |
US $56.93 |
||
| replacement | |||||
|
11711
|
11711
11701-50041-G7 Bearing, Crankshaft[12.1994 - 05.1997] 1UZFE..UZZ3# MARK 7,ＮＯ．１，５ |
11701-50041-G7 |
US $55.56 |
||
|
13011
|
13011
13011-50040
Ring Set, Piston
[05.1991 - 05.1995] 1UZFE..UZZ3# ＳＴＤ |
13011-50040 |
— | ||
|
13011
|
13011
13011-50080
Ring Set, Piston
[05.1995 - 01.1996] 1UZFE..UZZ3# ＳＴＤ |
13011-50080 |
— | ||
| replacements | |||||
|
13011
|
13011
13011-50100
Ring Set, Piston
[05.1995 - 01.1996] 1UZFE..UZZ3# ＳＴＤ |
13011-50100 |
— | ||
|
13011
|
13011
13011-50110
Ring Set, Piston
[05.1995 - 01.1996] 1UZFE..UZZ3# ＳＴＤ |
13011-50110 |
— | ||
|
13011
|
13011
13011-50110
Ring Set, Piston
[01.1996 - 09.1997] 1UZFE..UZZ3# ＳＴＤ |
13011-50110 |
— | ||
|
13041
|
13041
13041-50020-02
Bearing, Connecting Rod
[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 2 |
13041-50020-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-50031-02 Bearing, Connecting Rod[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 2 |
13041-50031-02 |
from US $14.06 |
||
|
13041
|
13041
13041-50020-03
Bearing, Connecting Rod
[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 3 |
13041-50020-03 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-50031-03 Bearing, Connecting Rod[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 3 |
13041-50031-03 |
from US $13.88 |
||
|
13041
|
13041
13041-50020-04
Bearing, Connecting Rod
[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 4 |
13041-50020-04 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-50031-04 Bearing, Connecting Rod[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 4 |
13041-50031-04 |
from US $13.81 |
||
|
13041
|
13041
13041-50020-05
Bearing, Connecting Rod
[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 5 |
13041-50020-05 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-50031-05 Bearing, Connecting Rod[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 5 |
13041-50031-05 |
US $36.18 |
||
|
13041
|
13041
13041-50020-06 Bearing, Connecting Rod[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 6 |
13041-50020-06 |
US $33.92 |
||
| replacement | |||||
|
13041
|
13041
13041-50031-06 Bearing, Connecting Rod[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 6 |
13041-50031-06 |
US $36.18 |
||
|
13041
|
13041
13041-50020-07 Bearing, Connecting Rod[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 7 |
13041-50020-07 |
US $33.92 |
||
| replacement | |||||
|
13041
|
13041
13041-50031-07 Bearing, Connecting Rod[05.1991 - 09.1997] 1UZFE..UZZ3# MARK 7 |
13041-50031-07 |
US $36.18 |
||
|
13101
|
13101
13101-50020-01 Piston Sub-Assy, W/pin[05.1991 - 05.1995] 1UZFE..UZZ3# ＳＴＤ,MARK 1,右側 |
13101-50020-01 |
from US $96.58 |
||
|
13101
|
13101
13101-50020-02
Piston Sub-Assy, W/pin
[05.1991 - 05.1995] 1UZFE..UZZ3# ＳＴＤ,MARK 2,右側 |
13101-50020-02 |
— | ||
|
13101
|
13101
13101-50020-03 Piston Sub-Assy, W/pin[05.1991 - 05.1995] 1UZFE..UZZ3# ＳＴＤ,MARK 3,右側 |
13101-50020-03 |
US $107.74 |
||
|
13101
|
13101
13101-50030-01 Piston Sub-Assy, W/pin[05.1995 - 09.1997] 1UZFE..UZZ3# ＳＴＤ,MARK 1,右側 |
13101-50030-01 |
US $99.01 |
||
|
13101
|
13101
13101-50030-02 Piston Sub-Assy, W/pin[05.1995 - 09.1997] 1UZFE..UZZ3# ＳＴＤ,MARK 2,右側 |
13101-50030-02 |
US $99.01 |
||
|
13101
|
13101
13101-50030-03 Piston Sub-Assy, W/pin[05.1995 - 09.1997] 1UZFE..UZZ3# ＳＴＤ,MARK 3,右側 |
13101-50030-03 |
US $99.01 |
||
|
13101
|
13101
13301-50010-01 Piston Sub-Assy, W/pin[05.1991 - 05.1995] 1UZFE..UZZ3# ＳＴＤ,MARK 1,左側 |
13301-50010-01 |
US $107.74 |
||
|
13101
|
13101
13301-50010-02 Piston Sub-Assy, W/pin[05.1991 - 05.1995] 1UZFE..UZZ3# ＳＴＤ,MARK 2,左側 |
13301-50010-02 |
US $107.74 |
||
|
13101
|
13101
13301-50010-03 Piston Sub-Assy, W/pin[05.1991 - 05.1995] 1UZFE..UZZ3# ＳＴＤ,MARK 3,左側 |
13301-50010-03 |
US $107.74 |
||
|
13101
|
13101
13301-50020-01 Piston Sub-Assy, W/pin[05.1995 - 09.1997] 1UZFE..UZZ3# ＳＴＤ,MARK 1,左側 |
13301-50020-01 |
US $99.01 |
||
|
13101
|
13101
13301-50020-02 Piston Sub-Assy, W/pin[05.1995 - 09.1997] 1UZFE..UZZ3# ＳＴＤ,MARK 2,左側 |
13301-50020-02 |
US $99.01 |
||
|
13101
|
13101
13301-50020-03 Piston Sub-Assy, W/pin[05.1995 - 09.1997] 1UZFE..UZZ3# ＳＴＤ,MARK 3,左側 |
13301-50020-03 |
US $99.01 |
||
|
13101A
|
13101A
90521-25004
Ring, Hole Snap(For Piston Pin)
[05.1991 - 09.1997] 1UZFE..UZZ3# |
90521-25004 |
— | ||
| replacement | |||||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[05.1991 - 09.1997] 1UZFE..UZZ3# |
90520-22025 |
from US $1.76 |
||
|
13201
|
13201
13201-50020 Rod Sub-Assy, Connecting[05.1991 - 08.1994] 1UZFE..UZZ3# |
13201-50020 |
US $208.21 |
||
|
13201
|
13201
13201-50030 Rod Sub-Assy, Connecting[08.1994 - 09.1997] 1UZFE..UZZ3# |
13201-50030 |
US $208.21 |
||
| replacement | |||||
|
13201
|
13201
13201-50032 Rod Sub-Assy, Connecting[08.1994 - 09.1997] 1UZFE..UZZ3# |
13201-50032 |
from US $159.61 |
||
|
13201A
|
13201A
90999-73119 Bush(For Connecting Rod Small End)[05.1991 - 09.1997] 1UZFE..UZZ3# |
90999-73119 |
US $9.76 |
||
|
13265
|
13265
13265-50020 Bolt, Connecting Rod[05.1991 - 09.1997] 1UZFE..UZZ3# |
13265-50020 |
US $8.48 |
||
|
13407
|
13407
13407-50050 Damper Sub-Assy, Crankshaft[05.1991 - 08.1996] 1UZFE..UZZ32 |
13407-50050 |
US $362.54 |
||
|
13411
|
13411
13411-50020 Crankshaft[05.1991 - 10.1994] 1UZFE..UZZ3# |
13411-50020 |
US $3,669.12 |
||
|
13411
|
13411
13411-50021 Crankshaft[10.1994 - 05.1995] 1UZFE..UZZ3# |
13411-50021 |
US $3,669.12 |
||
|
13411
|
13411
13411-50030 Crankshaft[05.1995 - 09.1997] 1UZFE..UZZ3# |
13411-50030 |
US $3,669.12 |
||
|
13471A
|
13471A
90280-05005 Key(For Oil Pump Drive Spline)[03.1992 - 09.1997] 1UZFE..UZZ3# |
90280-05005 |
from US $0.98 |
||
|
13471A
|
13471A
95161-20519 Key, Crankshaft(For Crankshaft Pulley Set)[05.1991 - 03.1992] 1UZFE..UZZ3# |
95161-20519 |
from US $1.25 |
||
|
13471C
|
13471C
90109-18003 Bolt(For Crankshaft Pulley Set)[05.1991 - 09.1997] 1UZFE..UZZ3# |
90109-18003 |
from US $7.08 |
||
|
13521P
|
13521P
13521-50020
Pulley, Crankshaft Timing
[05.1991 - 12.1994] 1UZFE..UZZ3# |
13521-50020 |
— | ||
| replacement | |||||
|
13521P
|
13521P
13521-50022 Pulley, Crankshaft Timing[05.1991 - 12.1994] 1UZFE..UZZ3# |
13521-50022 |
from US $31.61 |
||
|
13521P
|
13521P
13521-50021 Pulley, Crankshaft Timing[12.1994 - 05.1997] 1UZFE..UZZ3# |
13521-50021 |
US $39.60 |
||
| replacement | |||||
|
13521P
|
13521P
13521-50022 Pulley, Crankshaft Timing[12.1994 - 05.1997] 1UZFE..UZZ3# |
13521-50022 |
from US $31.61 |
||
|
19315
|
19315
19315-50010
Plate, Crank Angle Sensor, No.1
[05.1991 - 09.1997] 1UZFE..UZZ3# |
19315-50010 |
— | ||
