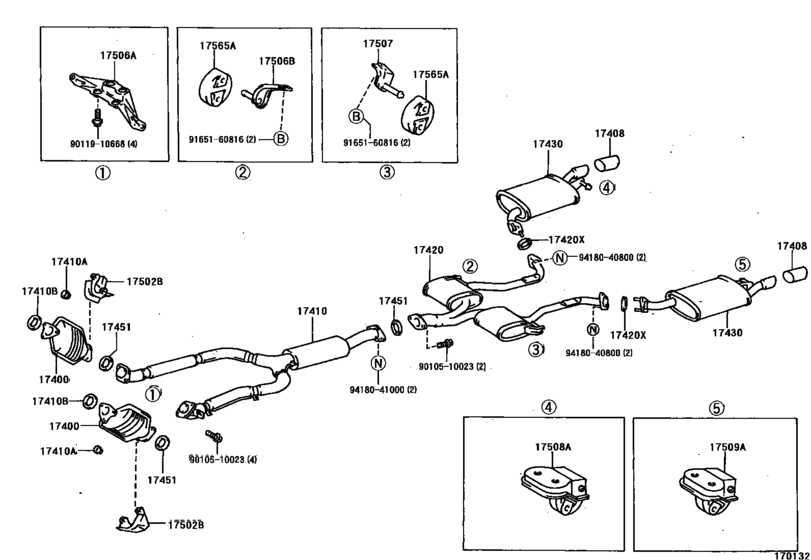

Exhaust Pipe ([05.1991 - 09.1997] (9105-9709)1UZFE) Diagram Toyota SOARER
- Year
- 1991 - 1996
- Sales region
- Japan
- Frame
- UZZ32
- grade
- GTL
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- From
- 05.1991
- To
- 08.1996
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-50060 Converter Assy, W/catalyst[05.1991 - 01.1994] 1UZFE..UZZ3# 右側 |
18450-50060 |
US $1,137.14 |
||
|
17400
|
17400
18450-50080 Converter Assy, W/catalyst[05.1991 - 01.1994] 1UZFE..UZZ3# 左側 |
18450-50080 |
US $1,137.14 |
||
|
17400
|
17400
18450-50140 Converter Assy, W/catalyst[01.1994 - 05.1995] 1UZFE..UZZ3# 左側 |
18450-50140 |
US $1,137.14 |
||
|
17400
|
17400
18450-50150 Converter Assy, W/catalyst[01.1994 - 05.1995] 1UZFE..UZZ3# 右側 |
18450-50150 |
US $1,137.14 |
||
|
17400
|
17400
18450-50160 Converter Assy, W/catalyst[05.1995 - 09.1997] 1UZFE..UZZ3# 右側 |
18450-50160 |
US $1,089.09 |
||
|
17400
|
17400
18450-50200 Converter Assy, W/catalyst[05.1995 - 09.1997] 1UZFE..UZZ3# 左側 |
18450-50200 |
US $1,086.18 |
||
|
17408
|
17408
17408-46020 Baffle Sub Assy, Exhaust Tail Pipe[05.1991 -] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
17408-46020 |
from US $58.31 |
||
|
17410
|
17410
17410-50070 Pipe Assy, Exhaust, Front[05.1991 - 05.1995] 1UZFE..UZZ3# |
17410-50070 |
US $547.46 |
||
|
17410
|
17410
17410-50160 Pipe Assy, Exhaust, Front[05.1995 - 09.1997] 1UZFE..UZZ3# |
17410-50160 |
US $611.52 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[05.1991 - 09.1997] 1UZFE..UZZ3# |
90179-10070 |
from US $1.40 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[05.1991 - 09.1997] 1UZFE..UZZ3# |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06043
Gasket, Exhaust Pipe
[05.1991 - 09.1997] 1UZFE..UZZ3# |
90917-06043 |
— | ||
| replacement | |||||
|
17410B
|
17410B
17451-52060 GASKET, EXHAUST PIPE[05.1991 - 09.1997] 1UZFE..UZZ3# |
17451-52060 |
from US $5.48 |
||
|
17420
|
17420
17420-50050 Pipe Assy, Exhaust, Center[05.1991 - 09.1997] 1UZFE..UZZ3# |
17420-50050 |
US $678.50 |
||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[05.1991 -] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
90917-06045 |
from US $1.70 |
||
| replacement | |||||
|
17420X
|
17420X
90080-43028 Gasket, Exhaust Pipe[05.1991 -] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
90080-43028 |
US $19.44 |
||
|
17430
|
17430
17430-50030 Pipe Assy, Exhaust, Tail[05.1991 - 09.1997] 1UZFE..UZZ3# 右側 |
17430-50030 |
US $410.59 |
||
|
17430
|
17430
17440-50020 Pipe Assy, Exhaust, Tail[05.1991 - 09.1997] 1UZFE..UZZ3# 左側 |
17440-50020 |
US $410.59 |
||
|
17451
|
17451
90917-06050 Gasket, Exhaust Pipe[05.1991 - 09.1997] 1UZFE..UZZ3# リヤ |
90917-06050 |
US $5.60 |
||
|
17451
|
17451
90917-06054 Gasket, Exhaust Pipe[05.1991 - 09.1997] 1UZFE..UZZ3# フロント |
90917-06054 |
from US $4.23 |
||
|
17502B
|
17502B
17502-50010 Bracket Sub-Assy, Catalytic Converter, Front[05.1991 - 09.1997] 1UZFE..UZZ3# 右側 |
17502-50010 |
US $50.23 |
||
|
17502B
|
17502B
17503-50020 Bracket Sub-Assy, Catalytic Converter, Front[05.1991 - 09.1997] 1UZFE..UZZ3# 左側 |
17503-50020 |
US $50.23 |
||
|
17506A
|
17506A
17506-50040 Bracket Sub-Assy, Exhaust Pipe No.1 Support[05.1991 - 09.1997] 1UZFE..UZZ3# |
17506-50040 |
US $75.71 |
||
|
17508A
|
17508A
17508-46010
Bracket Sub-Assy, Exhaust Pipe No.3 Support
[05.1991 - 01.1998] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
17508-46010 |
— | ||
|
17509A
|
17509A
17509-46010 Bracket Sub-Assy, Exhaust Pipe No.4 Support[05.1991 - 01.1998] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
17509-46010 |
US $22.71 |
||
|
17565A
|
17565A
17565-46010 Bolt Or Ring, Exhaust Tail Pipe (For Front)[05.1991 -] 1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
17565-46010 |
from US $16.30 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9011910668
|
9011910668
90119-10668 BOLT WWASHER |
90119-10668 |
US $2.08 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.70 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
