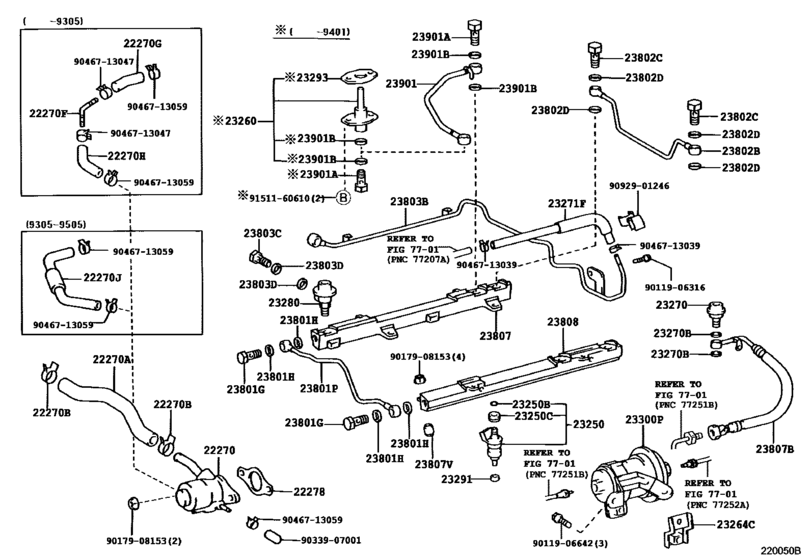

Fuel Injection System ([05.1991 - 05.1995] (9105-9505)1UZFE) Diagram Toyota SOARER
- Year
- 1991 - 1996
- Sales region
- Japan
- Frame
- UZZ32
- grade
- GTL
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- From
- 05.1991
- To
- 08.1996
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22270
|
22270
22270-50010
Valve Assy, Idle Speed Control(For Thlottle Body)
[05.1991 - 01.1994] 1UZFE..UZZ3# |
22270-50010 |
— | ||
|
22270
|
22270
22270-50020
Valve Assy, Idle Speed Control(For Thlottle Body)
[01.1994 - 09.1997] 1UZFE..UZZ3# |
22270-50020 |
— | ||
|
22270A
|
22270A
17341-50030
Hose, Air, No.1(For Idle Speed Control Valve)
[05.1991 - 01.1994] 1UZFE..UZZ3# |
17341-50030 |
— | ||
|
22270A
|
22270A
17341-50070
Hose, Air, No.1(For Idle Speed Control Valve)
[01.1994 - 05.1995] 1UZFE..UZZ3# |
17341-50070 |
— | ||
|
22270A
|
22270A
17341-50090 Hose, Air, No.1(For Idle Speed Control Valve)[05.1995 - 08.1996] 1UZFE..UZZ3# |
17341-50090 |
US $21.99 |
||
| replacement | |||||
|
22270A
|
22270A
17341-50100
Hose, Air, No.1(For Idle Speed Control Valve)
[05.1995 - 08.1996] 1UZFE..UZZ3# |
17341-50100 |
— | ||
|
22270B
|
22270B
90467-23009 Clip Or Clamp(For Ventilation Hose)[05.1991 - 01.1994] 1UZFE..UZZ3# |
90467-23009 |
US $3.20 |
||
|
22270B
|
22270B
90467-26006
Clamp Or Clip(For Air Hose, No.1)
[01.1994 - 09.1997] 1UZFE..UZZ3# |
90467-26006 |
— | ||
| replacement | |||||
|
22270B
|
22270B
96134-52600 Clip Or Clamp(For Ventilation Hose)[01.1994 - 09.1997] 1UZFE..UZZ3# |
96134-52600 |
from US $3.24 |
||
|
22270F
|
22270F
16289-50010 Pipe, Water By-Pass, No.5[05.1991 - 05.1993] 1UZFE..UZZ3# |
16289-50010 |
US $9.03 |
||
|
22270G
|
22270G
90910-05204
Hose(For Water By-Pass Pipe No.5)
[05.1991 - 05.1993] 1UZFE..UZZ3# |
90910-05204 |
— | ||
|
22270H
|
22270H
90910-05205
Hose(For Water By-Pass Pipe No.5)
[05.1991 - 05.1993] 1UZFE..UZZ3# |
90910-05205 |
— | ||
|
22270J
|
22270J
16295-50010
Hose, Water, No.3(For Idel Speed Control Valve)
[05.1993 - 05.1995] 1UZFE..UZZ3# |
16295-50010 |
— | ||
|
22270J
|
22270J
99555-10200 Hose, Water By-Pass[05.1995 - 09.1997] 1UZFE..UZZ3# |
99555-10200 |
from US $5.12 |
||
|
22278
|
22278
22278-50010 Gasket, Idle Speed Control Valve[05.1991 - 08.1994] 1UZFE..UZZ3# |
22278-50010 |
US $4.80 |
||
|
22278
|
22278
22278-50011
Gasket, Idle Speed Control Valve
[08.1994 - 09.1997] 1UZFE..UZZ3# |
22278-50011 |
— | ||
|
23250
|
23250
23209-50020 Injector Assy, Fuel[05.1991 - 09.1997] 1UZFE..UZZ3# |
23209-50020 |
US $256.18 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[05.1991 - 09.1997] 1UZFE..UZZ3# |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[05.1991 - 09.1997] 1UZFE..UZZ3# |
90480-13005 |
from US $2.50 |
||
|
23260
|
23260
23260-59045 Injector Assy, Cold Start Fuel[05.1991 - 01.1994] 1UZFE..UZZ3# |
23260-59045 |
US $136.86 |
||
|
23264C
|
23264C
23264-50010 Bracket, Fuel Filter[05.1991 - 09.1997] 1UZFE..UZZ3# |
23264-50010 |
US $5.24 |
||
|
23270
|
23270
23270-50010
Damper Assy, Fuel Pressure Pulsation
[05.1991 - 09.1997] 1UZFE..UZZ3# |
23270-50010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-50012 Damper Assy, Fuel Pressure Pulsation[05.1991 - 09.1997] 1UZFE..UZZ3# |
23270-50012 |
from US $78.57 |
||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[05.1991 - 09.1997] 1UZFE..UZZ3# ﾊﾟﾙｾ-ｼﾖﾝﾀﾞﾝﾊﾟ ｻｲﾄﾞ |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
90430-12026 Gasket[05.1991 - 09.1997] 1UZFE..UZZ3# デリバリパイプ側 |
90430-12026 |
from US $0.88 |
||
|
23271F
|
23271F
23271-50040
Hose, Fuel
[05.1991 - 09.1997] 1UZFE..UZZ3# |
23271-50040 |
— | ||
|
23271F
|
23271F
23271-50120 Hose, Fuel[05.1995 - 09.1997] 1UZFE..UZZ3# ﾌﾟﾚﾂｼﾔ ﾚｷﾞﾕﾚ-ﾀ ｻｲﾄﾞ |
23271-50120 |
US $6.99 |
||
|
23280
|
23280
23280-50010 Regulator Assy, Fuel Pressure[05.1991 - 05.1995] 1UZFE..UZZ3# |
23280-50010 |
US $164.81 |
||
|
23280
|
23280
23280-50020
Regulator Assy, Fuel Pressure
[05.1995 - 09.1997] 1UZFE..UZZ3# |
23280-50020 |
— | ||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[05.1991 - 09.1997] 1UZFE..UZZ3# |
23291-41010 |
from US $2.87 |
||
|
23293
|
23293
23293-50010
Gasket, Cold Start Injector
[05.1991 - 01.1994] 1UZFE..UZZ3# |
23293-50010 |
— | ||
|
23300P
|
23300P
23300-50040
Filter, Fuel(For Efi)
[05.1991 - 09.1997] 1UZFE..UZZ3#; 1JZGTE,2JZGE..JZZ3# |
23300-50040 |
— | ||
|
23801G
|
23801G
90401-12023 Bolt, Union(For Fuel Pipe)[05.1991 - 09.1997] 1UZFE..UZZ3# |
90401-12023 |
US $5.44 |
||
|
23801H
|
23801H
90430-12026 Gasket[05.1991 - 09.1997] 1UZFE..UZZ3# |
90430-12026 |
from US $0.88 |
||
|
23801P
|
23801P
23801-50010
Pipe Sub-Assy, Fuel, No.1
[05.1991 - 09.1997] 1UZFE..UZZ3# |
23801-50010 |
— | ||
|
23802B
|
23802B
23802-50010
Pipe Sub-Assy, Fuel, No.2
[05.1991 - 08.1992] 1UZFE..UZZ3# |
23802-50010 |
— | ||
| replacement | |||||
|
23802B
|
23802B
23802-50011 Pipe Sub-Assy, Fuel, No.2[05.1991 - 08.1992] 1UZFE..UZZ3# |
23802-50011 |
US $41.64 |
||
|
23802B
|
23802B
23802-50011 Pipe Sub-Assy, Fuel, No.2[08.1992 - 05.1995] 1UZFE..UZZ3# |
23802-50011 |
US $41.64 |
||
|
23802C
|
23802C
90401-12023 Bolt, Union(For Fuel Pipe)[05.1991 - 05.1995] 1UZFE..UZZ3# |
90401-12023 |
US $5.44 |
||
|
23802D
|
23802D
90430-12026 Gasket[05.1991 - 05.1995] 1UZFE..UZZ3# |
90430-12026 |
from US $0.88 |
||
|
23803B
|
23803B
23803-50040 Pipe Sub-Assy, Fuel, No.3[05.1991 - 05.1995] 1UZFE..UZZ3# |
23803-50040 |
US $81.54 |
||
|
23803B
|
23803B
23803-50090
Pipe Sub-Assy, Fuel, No.3
[05.1995 - 06.1995] 1UZFE..UZZ3# |
23803-50090 |
— | ||
| replacement | |||||
|
23803B
|
23803B
23803-50091 Pipe Sub-Assy, Fuel, No.3[05.1995 - 06.1995] 1UZFE..UZZ3# |
23803-50091 |
US $66.25 |
||
|
23803B
|
23803B
23803-50091 Pipe Sub-Assy, Fuel, No.3[06.1995 - 09.1997] 1UZFE..UZZ3# |
23803-50091 |
US $66.25 |
||
|
23803C
|
23803C
90401-10038 Bolt, Union(For Fuel Pipe Or Hose Set)[05.1991 - 05.1995] 1UZFE..UZZ3# |
90401-10038 |
US $3.06 |
||
|
23803D
|
23803D
90430-10012 Gasket(For Turbo Oil Inlet Pipe)[05.1991 - 05.1995] 1UZFE..UZZ3# |
90430-10012 |
US $2.40 |
||
|
23807
|
23807
23807-50010 Pipe Sub-Assy, Fuel Delivery[05.1991 - 01.1994] 1UZFE..UZZ3# |
23807-50010 |
US $173.26 |
||
| replacement | |||||
|
23807
|
23807
23807-50011 Pipe Sub-Assy, Fuel Delivery[05.1991 - 01.1994] 1UZFE..UZZ3# |
23807-50011 |
US $171.81 |
||
|
23807
|
23807
23807-50020 Pipe Sub-Assy, Fuel Delivery[01.1994 - 05.1995] 1UZFE..UZZ3# |
23807-50020 |
US $170.35 |
||
| replacement | |||||
|
23807
|
23807
23807-50021 Pipe Sub-Assy, Fuel Delivery[01.1994 - 05.1995] 1UZFE..UZZ3# |
23807-50021 |
US $170.35 |
||
|
23807B
|
23807B
90923-01388 Hose, Fuel Delivery Pipe[05.1991 - 05.1995] 1UZFE..UZZ3# |
90923-01388 |
US $85.90 |
||
|
23807B
|
23807B
90923-01407
Hose, Fuel Delivery Pipe
[05.1995 - 09.1997] 1UZFE..UZZ3# |
90923-01407 |
— | ||
|
23807V
|
23807V
90561-08029 Spacer, No.1(For Delivery Pipe)[05.1991 - 09.1997] 1UZFE..UZZ3# |
90561-08029 |
from US $1.60 |
||
|
23808
|
23808
23808-50010 Pipe Sub-Assy, Fuel Delivery, No.2[05.1991 - 05.1995] 1UZFE..UZZ3# |
23808-50010 |
US $154.34 |
||
| replacement | |||||
|
23808
|
23808
23808-50011 Pipe Sub-Assy, Fuel Delivery, No.2[05.1991 - 05.1995] 1UZFE..UZZ3# |
23808-50011 |
US $154.34 |
||
|
23901
|
23901
23901-50010
Tube Sub-Assy, Fuel
[05.1991 - 01.1994] 1UZFE..UZZ3# |
23901-50010 |
— | ||
|
23901A
|
23901A
90401-08007
Bolt, Union(For Fuel Tube)
[05.1991 - 01.1994] 1UZFE..UZZ3# |
90401-08007 |
— | ||
|
23901B
|
23901B
90430-08012 Gasket[05.1991 - 01.1994] 1UZFE..UZZ3# |
90430-08012 |
US $1.92 |
||
|
9011906316
|
9011906316
90119-06316 New Genuine Part |
90119-06316 |
US $1.75 |
||
|
9011906642
|
9011906642
90119-06642
New Genuine Part
|
90119-06642 |
— | ||
| replacement | |||||
|
9011906642
|
9011906642
90119-06512 BOLT WWASHER |
90119-06512 |
US $2.56 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9033907001
|
9033907001
90339-07001 Plug, Heater Water |
90339-07001 |
from US $3.20 |
||
|
9046713039
|
9046713039
90467-13039
Clamp, Hose
|
90467-13039 |
— | ||
| replacement | |||||
|
9046713039
|
9046713039
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9046713047
|
9046713047
90467-13047
Clamp Or Clip, Hose(For Water By-Pass Pipe)
|
90467-13047 |
— | ||
| replacement | |||||
|
9046713047
|
9046713047
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9046713059
|
9046713059
90467-13059
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13059 |
— | ||
| replacement | |||||
|
9046713059
|
9046713059
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90467-13054 |
from US $0.96 |
||
|
9092901246
|
9092901246
90929-01246 Clamp |
90929-01246 |
US $3.64 |
||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.76 |
||
