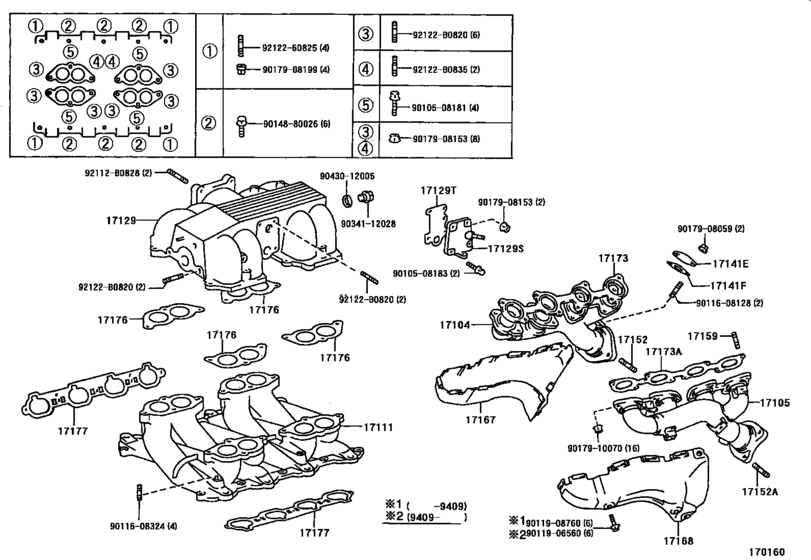

Manifold ([05.1991 - ] (9105- )1UZFE) Diagram Toyota SOARER
- Year
- 1991 - 1996
- Sales region
- Japan
- Frame
- UZZ32
- grade
- GTL
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- From
- 05.1991
- To
- 08.1996
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17104
|
17104
17104-50030 Manifold Sub-Assy, Exhaust, Rh[05.1991 - 09.1994] 1UZFE..UZZ3# |
17104-50030 |
US $563.47 |
||
| replacements | |||||
|
17104
|
17104
17104-50032 Manifold Sub-Assy, Exhaust, Rh[05.1991 - 09.1994] 1UZFE..UZZ3# |
17104-50032 |
US $566.38 |
||
|
17104
|
17104
90119-06560 Bolt[05.1991 - 09.1994] 1UZFE..UZZ3# |
90119-06560 |
US $1.92 |
||
|
17104
|
17104
17104-50032 Manifold Sub-Assy, Exhaust, Rh[09.1994 - 09.1997] 1UZFE..UZZ3# |
17104-50032 |
US $566.38 |
||
|
17105
|
17105
17105-50030 Manifold Sub-Assy, Exhaust, Lh[05.1991 - 09.1994] 1UZFE..UZZ3# |
17105-50030 |
US $563.47 |
||
| replacements | |||||
|
17105
|
17105
17105-50032 Manifold Sub-Assy, Exhaust, Lh[05.1991 - 09.1994] 1UZFE..UZZ3# |
17105-50032 |
US $566.38 |
||
|
17105
|
17105
90119-06560 Bolt[05.1991 - 09.1994] 1UZFE..UZZ3# |
90119-06560 |
US $1.92 |
||
|
17105
|
17105
17105-50032 Manifold Sub-Assy, Exhaust, Lh[09.1994 - 09.1997] 1UZFE..UZZ3# |
17105-50032 |
US $566.38 |
||
|
17111
|
17111
17111-50020 Manifold, Intake[05.1991 - 09.1997] 1UZFE..UZZ3# |
17111-50020 |
US $685.78 |
||
|
17129
|
17129
17109-50020 Tank, Intake Air Surge[05.1991 - 01.1994] 1UZFE..UZZ3# |
17109-50020 |
US $1,150.24 |
||
| replacement | |||||
|
17129
|
17129
17109-50010 Tank, Intake Air Surge[05.1991 - 01.1994] 1UZFE..UZZ3# |
17109-50010 |
US $1,150.24 |
||
|
17129
|
17129
17109-50030 Tank, Intake Air Surge[01.1994 - 09.1997] 1UZFE..UZZ3# |
17109-50030 |
US $1,153.15 |
||
|
17129S
|
17129S
25615-50010
Plate(For Intake Air Surge Tank)
[05.1991 - 09.1997] 1UZFE..UZZ3# |
25615-50010 |
— | ||
|
17129T
|
17129T
25629-50010
Gasket(For Intake Air Surge Tank)
[05.1991 - 09.1997] 1UZFE..UZZ3# |
25629-50010 |
— | ||
|
17141E
|
17141E
25617-50010 Plate, Exhaust Manifold[05.1991 - 09.1997] 1UZFE..UZZ3# |
25617-50010 |
US $17.18 |
||
|
17141F
|
17141F
25634-50010 Gasket(For Exhaust Manifold Plate)[05.1991 - 09.1997] 1UZFE..UZZ3# |
25634-50010 |
from US $7.16 |
||
|
17152
|
17152
90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1991 - 09.1997] 1UZFE..UZZ3# |
90126-10006 |
from US $4.78 |
||
|
17152A
|
17152A
90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1991 - 09.1997] 1UZFE..UZZ3# |
90126-10006 |
from US $4.78 |
||
|
17159
|
17159
90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1991 - 07.1994] 1UZFE..UZZ3# |
90126-10006 |
from US $4.78 |
||
|
17159
|
17159
90126-10015 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[07.1994 - 09.1997] 1UZFE..UZZ3# |
90126-10015 |
from US $2.87 |
||
|
17167
|
17167
17167-50040 Insulator, Exhaust Manifold Heat, No.1[05.1991 - 09.1997] 1UZFE..UZZ3# |
17167-50040 |
US $101.92 |
||
|
17168
|
17168
17168-50040 Insulator, Exhaust Manifold Heat, No.2[05.1991 - 09.1997] 1UZFE..UZZ3# |
17168-50040 |
US $123.76 |
||
|
17173
|
17173
17173-50020
Gasket, Exhaust Manifold To Head
[05.1991 - 09.1997] 1UZFE..UZZ3# |
17173-50020 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-50021 Gasket, Exhaust Manifold To Head[05.1991 - 09.1997] 1UZFE..UZZ3# |
17173-50021 |
from US $31.61 |
||
|
17173A
|
17173A
17173-50020
Gasket, Exhaust Manifold To Head
[05.1991 - 09.1997] 1UZFE..UZZ3# |
17173-50020 |
— | ||
| replacement | |||||
|
17173A
|
17173A
17173-50021 Gasket, Exhaust Manifold To Head[05.1991 - 09.1997] 1UZFE..UZZ3# |
17173-50021 |
from US $31.61 |
||
|
17176
|
17176
17176-50020
Gasket, Air Surge Tank To Intake Manifold
[05.1991 - 09.1994] 1UZFE..UZZ3# |
17176-50020 |
— | ||
| replacement | |||||
|
17176
|
17176
17176-50021 Gasket, Air Surge Tank To Intake Manifold[05.1991 - 09.1994] 1UZFE..UZZ3# |
17176-50021 |
from US $7.66 |
||
|
17176
|
17176
17176-50021 Gasket, Air Surge Tank To Intake Manifold[09.1994 - 09.1997] 1UZFE..UZZ3# |
17176-50021 |
from US $7.66 |
||
|
17177
|
17177
17171-50010
Gasket, Intake Manifold To Head, No.1
[05.1991 - 09.1994] 1UZFE..UZZ3# |
17171-50010 |
— | ||
| replacement | |||||
|
17177
|
17177
17171-50011 Gasket, Intake Manifold To Head, No.1[05.1991 - 09.1994] 1UZFE..UZZ3# |
17171-50011 |
from US $24.67 |
||
|
17177
|
17177
17171-50011 Gasket, Intake Manifold To Head, No.1[09.1994 - 09.1997] 1UZFE..UZZ3# |
17171-50011 |
from US $24.67 |
||
|
92112B0828
|
92112B0828
92112-B0828 New Genuine Part |
92112-B0828 |
US $1.89 |
||
|
92122B0820
|
92122B0820
92122-B0820 Bolt, Stud(For Water Outlet) |
92122-B0820 |
US $1.22 |
||
|
92122B0835
|
92122B0835
92122-B0835
Bolt, Stud
|
92122-B0835 |
— | ||
|
9010508181
|
9010508181
90105-08181
Bolt(For Alternator)
|
90105-08181 |
— | ||
| replacement | |||||
|
9010508181
|
9010508181
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
9010508183
|
9010508183
90105-08183
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
90105-08183 |
— | ||
| replacement | |||||
|
9010508183
|
9010508183
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9011608128
|
9011608128
90116-08128 Bolt, Stud(For Manifold Stay) |
90116-08128 |
US $4.16 |
||
|
9011608324
|
9011608324
90116-08324 New Genuine Part |
90116-08324 |
US $1.49 |
||
|
9011906560
|
9011906560
90119-06560 Bolt |
90119-06560 |
US $1.92 |
||
|
9011908760
|
9011908760
90119-08760 Bolt |
90119-08760 |
US $0.96 |
||
|
9014880026
|
9014880026
90148-80026 Bolt |
90148-80026 |
US $6.64 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
|
9017908199
|
9017908199
90179-08199 Nut |
90179-08199 |
US $1.05 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9034112028
|
9034112028
90341-12028 PLUG STRAIGHT SCREW |
90341-12028 |
US $3.35 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9212260825
|
9212260825
92122-60825 Bolt, Stud(For Manifold To Carburetor) |
92122-60825 |
US $1.31 |
||
