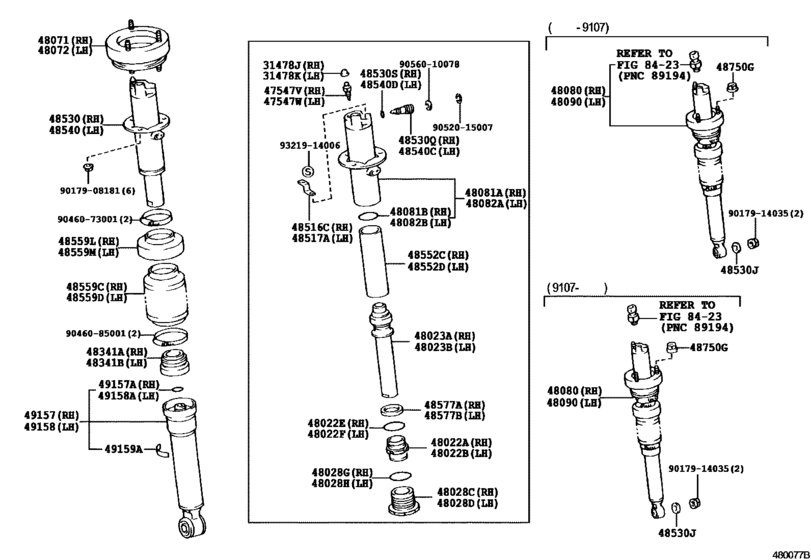

Rear Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ32) Diagram Toyota SOARER
- Year
- 1991 - 1996
- Sales region
- Japan
- Frame
- UZZ32
- grade
- GTL
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- From
- 05.1991
- To
- 08.1996
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31478J
|
31478J
31478-20020 Cap, Rear Shock Absorber Bleeder Plug, Rh[05.1991 - 08.1996] UZZ32 |
31478-20020 |
US $2.48 |
||
|
31478K
|
31478K
31478-20020 Cap, Rear Shock Absorber Bleeder Plug, Rh[05.1991 - 08.1996] UZZ32 |
31478-20020 |
US $2.48 |
||
|
47547V
|
47547V
47547-20010 Plug, Bleeder(For Release Cylinder)[05.1991 - 08.1996] UZZ32 |
47547-20010 |
from US $3.20 |
||
|
47547W
|
47547W
47547-20010 Plug, Bleeder(For Release Cylinder)[05.1991 - 08.1996] UZZ32 |
47547-20010 |
from US $3.20 |
||
|
48022A
|
48022A
48022-24040 Guide Sub-Assy, Rear Shock Absorber Rod, Rh[05.1991 - 08.1996] UZZ32 |
48022-24040 |
US $65.08 |
||
|
48022B
|
48022B
48022-24040 Guide Sub-Assy, Rear Shock Absorber Rod, Rh[05.1991 - 08.1996] UZZ32 |
48022-24040 |
US $65.08 |
||
|
48022E
|
48022E
90301-42003
Ring, O(For Rear Shock Absorber Rod Guide Rh)
[05.1991 - 08.1996] UZZ32 内径＝４２．６，外径＝４７．４ |
90301-42003 |
— | ||
|
48022F
|
48022F
90301-42003
Ring, O(For Rear Shock Absorber Rod Guide Rh)
[05.1991 - 08.1996] UZZ32 内径＝４２．６，外径＝４７．４ |
90301-42003 |
— | ||
|
48023A
|
48023A
48023-24110 Rod Sub-Assy, Rear Shock Absorber Piston, Rh[05.1991 - 01.1994] UZZ32 |
48023-24110 |
US $1,432.70 |
||
| replacement | |||||
|
48023A
|
48023A
48023-24130 Rod Sub-Assy, Rear Shock Absorber Piston, Rh[05.1991 - 01.1994] UZZ32 |
48023-24130 |
US $77.17 |
||
|
48023A
|
48023A
48023-24130 Rod Sub-Assy, Rear Shock Absorber Piston, Rh[01.1994 - 08.1996] UZZ32 |
48023-24130 |
US $77.17 |
||
|
48023B
|
48023B
48023-24110 Rod Sub-Assy, Rear Shock Absorber Piston, Rh[05.1991 - 01.1994] UZZ32 |
48023-24110 |
US $1,432.70 |
||
| replacement | |||||
|
48023B
|
48023B
48023-24130 Rod Sub-Assy, Rear Shock Absorber Piston, Rh[05.1991 - 01.1994] UZZ32 |
48023-24130 |
US $77.17 |
||
|
48023B
|
48023B
48023-24130 Rod Sub-Assy, Rear Shock Absorber Piston, Rh[01.1994 - 08.1996] UZZ32 |
48023-24130 |
US $77.17 |
||
|
48028C
|
48028C
48028-24050
Nut Sub-Assy, Rear Shock Absorber Ring, Rh
[05.1991 - 08.1996] UZZ32 |
48028-24050 |
— | ||
|
48028D
|
48028D
48028-24050
Nut Sub-Assy, Rear Shock Absorber Ring, Rh
[05.1991 - 08.1996] UZZ32 |
48028-24050 |
— | ||
|
48028G
|
48028G
90301-53005
Ring, O(For Rear Shock Absorber Ring Nut Rh)
[05.1991 - 08.1996] UZZ32 |
90301-53005 |
— | ||
|
48028H
|
48028H
90301-53005
Ring, O(For Rear Shock Absorber Ring Nut Rh)
[05.1991 - 08.1996] UZZ32 |
90301-53005 |
— | ||
|
48071
|
48071
48071-24010 Support Sub-Assy, Rear Suspension, Rh[05.1991 - 05.1993] UZZ32 |
48071-24010 |
US $426.61 |
||
| replacement | |||||
|
48071
|
48071
48071-24011 Support Sub-Assy, Rear Suspension, Rh[05.1991 - 05.1993] UZZ32 |
48071-24011 |
US $426.61 |
||
|
48071
|
48071
48071-24011 Support Sub-Assy, Rear Suspension, Rh[05.1993 - 08.1996] UZZ32 |
48071-24011 |
US $426.61 |
||
|
48072
|
48072
48072-24010 Support Sub-Assy, Rear Suspension, Lh[05.1991 - 05.1993] UZZ32 |
48072-24010 |
US $426.61 |
||
| replacement | |||||
|
48072
|
48072
48072-24011 Support Sub-Assy, Rear Suspension, Lh[05.1991 - 05.1993] UZZ32 |
48072-24011 |
US $426.61 |
||
|
48072
|
48072
48072-24011 Support Sub-Assy, Rear Suspension, Lh[05.1993 - 08.1996] UZZ32 |
48072-24011 |
US $426.61 |
||
|
48080
|
48080
48050-24020 Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber[07.1991 - 06.1993] UZZ32 |
48050-24020 |
US $4,295.20 |
||
| replacement | |||||
|
48080
|
48080
48050-24040 Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber[07.1991 - 06.1993] UZZ32 |
48050-24040 |
US $4,295.20 |
||
|
48080
|
48080
48050-24030 Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber[06.1993 - 01.1994] UZZ32 |
48050-24030 |
US $4,295.20 |
||
| replacement | |||||
|
48080
|
48080
48050-24040 Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber[06.1993 - 01.1994] UZZ32 |
48050-24040 |
US $4,295.20 |
||
|
48080
|
48080
48050-24040 Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber[01.1994 - 08.1996] UZZ32 |
48050-24040 |
US $4,295.20 |
||
|
48080
|
48080
48080-24050 Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber[05.1991 - 07.1991] UZZ32 |
48080-24050 |
US $3,814.72 |
||
| replacements | |||||
|
48080
|
48080
48050-24040 Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber[05.1991 - 07.1991] UZZ32 |
48050-24040 |
US $4,295.20 |
||
|
48080
|
48080
89194-24011 Sensor, Pressure Absorber, No.1[05.1991 - 07.1991] UZZ32 |
89194-24011 |
US $339.25 |
||
|
48081A
|
48081A
48081-24010 Shell Sub-Assy, Rear Shock Absorber, Rh[05.1991 - 08.1996] UZZ32 |
48081-24010 |
US $1,223.04 |
||
|
48081B
|
48081B
90301-42003
Ring, O(For Rear Shock Absorber Rod Guide Rh)
[05.1991 - 01.1994] UZZ32 |
90301-42003 |
— | ||
|
48082A
|
48082A
48082-24010 Shell Sub-Assy, Rear Shock Absorber, Lh[05.1991 - 08.1996] UZZ32 |
48082-24010 |
US $1,223.04 |
||
|
48082B
|
48082B
90301-42003
Ring, O(For Rear Shock Absorber Rod Guide Rh)
[05.1991 - 01.1994] UZZ32 |
90301-42003 |
— | ||
|
48090
|
48090
48070-24010 Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber[07.1991 - 06.1993] UZZ32 |
48070-24010 |
US $4,295.20 |
||
| replacement | |||||
|
48090
|
48090
48070-24030 Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber[07.1991 - 06.1993] UZZ32 |
48070-24030 |
US $4,295.20 |
||
|
48090
|
48090
48070-24020 Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber[06.1993 - 01.1994] UZZ32 |
48070-24020 |
US $4,295.20 |
||
| replacement | |||||
|
48090
|
48090
48070-24030 Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber[06.1993 - 01.1994] UZZ32 |
48070-24030 |
US $4,295.20 |
||
|
48090
|
48090
48070-24030 Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber[01.1994 - 08.1996] UZZ32 |
48070-24030 |
US $4,295.20 |
||
|
48090
|
48090
48090-24050 Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber[05.1991 - 07.1991] UZZ32 |
48090-24050 |
US $3,814.72 |
||
| replacements | |||||
|
48090
|
48090
48070-24030 Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber[05.1991 - 07.1991] UZZ32 |
48070-24030 |
US $4,295.20 |
||
|
48090
|
48090
89194-24011 Sensor, Pressure Absorber, No.1[05.1991 - 07.1991] UZZ32 |
89194-24011 |
US $339.25 |
||
|
48341A
|
48341A
48341-24050
Bumper, Rear Spring, No.1 Rh
[05.1991 - 08.1996] UZZ32 |
48341-24050 |
— | ||
|
48341B
|
48341B
48341-24050
Bumper, Rear Spring, No.1 Rh
[05.1991 - 08.1996] UZZ32 |
48341-24050 |
— | ||
|
48516C
|
48516C
48516-24010 Bracket, Rear Shock Absorber, No.1 Rh[07.1991 - 08.1996] UZZ32 |
48516-24010 |
US $2.33 |
||
|
48517A
|
48517A
48516-24010 Bracket, Rear Shock Absorber, No.1 Rh[07.1991 - 08.1996] UZZ32 |
48516-24010 |
US $2.33 |
||
|
48530
|
48530
48531-24130 Absorber Assy, Shock, Rear Rh[01.1994 - 08.1996] UZZ32 |
48531-24130 |
US $2,722.72 |
||
|
48530
|
48530
48531-24150 Absorber Assy, Shock, Rear Rh[05.1991 - 01.1994] UZZ32 |
48531-24150 |
US $2,722.72 |
||
| replacement | |||||
|
48530
|
48530
48531-24130 Absorber Assy, Shock, Rear Rh[05.1991 - 01.1994] UZZ32 |
48531-24130 |
US $2,722.72 |
||
|
48530J
|
48530J
90948-02060 Retainer, Cushion, No.1(For Rear Shock Absorber)[05.1991 - 08.1996] UZZ32 |
90948-02060 |
US $3.68 |
||
|
48530Q
|
48530Q
47547-24010
Plug, Front Shock Absorber Breather, Rh
[05.1991 - 08.1996] UZZ32 |
47547-24010 |
— | ||
|
48530S
|
48530S
90301-08007
Ring, O(For Front Shock Absorber Breather Plug Rh)
[05.1991 - 08.1996] UZZ32 |
90301-08007 |
— | ||
|
48540
|
48540
48541-24020 Absorber Assy, Shock, Rear Lh[05.1991 - 01.1994] UZZ32 |
48541-24020 |
US $2,722.72 |
||
| replacement | |||||
|
48540
|
48540
48541-24030 Absorber Assy, Shock, Rear Lh[05.1991 - 01.1994] UZZ32 |
48541-24030 |
US $2,722.72 |
||
|
48540
|
48540
48541-24030 Absorber Assy, Shock, Rear Lh[01.1994 - 08.1996] UZZ32 |
48541-24030 |
US $2,722.72 |
||
|
48540C
|
48540C
47547-24010
Plug, Front Shock Absorber Breather, Rh
[05.1991 - 08.1996] UZZ32 |
47547-24010 |
— | ||
|
48540D
|
48540D
90301-08007
Ring, O(For Front Shock Absorber Breather Plug Rh)
[05.1991 - 08.1996] UZZ32 |
90301-08007 |
— | ||
|
48552C
|
48552C
48552-24060 Cylinder, Rear Shock Absorber, Rh[01.1994 - 08.1996] UZZ32 |
48552-24060 |
US $34.65 |
||
|
48552D
|
48552D
48552-24060 Cylinder, Rear Shock Absorber, Rh[01.1994 - 08.1996] UZZ32 |
48552-24060 |
US $34.65 |
||
|
48559C
|
48559C
48559-24030
Cover, Rear Shock Absober Dust, Rh No.1
[05.1991 - 08.1996] UZZ32 |
48559-24030 |
— | ||
|
48559D
|
48559D
48559-24030
Cover, Rear Shock Absober Dust, Rh No.1
[05.1991 - 08.1996] UZZ32 |
48559-24030 |
— | ||
|
48559L
|
48559L
45222-24030
Cover, Rear Shock Absober Dust, Rh No.2
[05.1991 - 08.1996] UZZ32 |
45222-24030 |
— | ||
|
48559M
|
48559M
45222-24030
Cover, Rear Shock Absober Dust, Rh No.2
[05.1991 - 08.1996] UZZ32 |
45222-24030 |
— | ||
|
48577A
|
48577A
48577-24030 Stopper, Rear Shock Absorber Rebound, Rh[05.1991 - 08.1996] UZZ32 |
48577-24030 |
US $6.26 |
||
|
48577B
|
48577B
48577-24030 Stopper, Rear Shock Absorber Rebound, Rh[05.1991 - 08.1996] UZZ32 |
48577-24030 |
US $6.26 |
||
|
48750G
|
48750G
90179-08087 Nut[05.1991 - 05.1993] JZZ30,UZZ3# |
90179-08087 |
US $1.60 |
||
|
48750G
|
48750G
90179-08235 Nut(For Rear Suspension Support)[05.1993 -] JZZ3#,UZZ3# |
90179-08235 |
US $1.60 |
||
|
49157
|
49157
49157-24010 Accumulator, Rear Shock Absorber, Rh[05.1991 - 01.1994] UZZ32 |
49157-24010 |
US $1,029.39 |
||
| replacement | |||||
|
49157
|
49157
49157-24020 Accumulator, Rear Shock Absorber, Rh[05.1991 - 01.1994] UZZ32 |
49157-24020 |
US $1,029.39 |
||
|
49157
|
49157
49157-24020 Accumulator, Rear Shock Absorber, Rh[01.1994 - 08.1996] UZZ32 |
49157-24020 |
US $1,029.39 |
||
|
49157A
|
49157A
90301-23009
Ring, O(For Rear Shock Absorber Accumulator Rh)
[05.1991 - 08.1996] UZZ32 |
90301-23009 |
— | ||
|
49158
|
49158
49157-24010 Accumulator, Rear Shock Absorber, Rh[05.1991 - 01.1994] UZZ32 |
49157-24010 |
US $1,029.39 |
||
| replacement | |||||
|
49158
|
49158
49157-24020 Accumulator, Rear Shock Absorber, Rh[05.1991 - 01.1994] UZZ32 |
49157-24020 |
US $1,029.39 |
||
|
49158
|
49158
49157-24020 Accumulator, Rear Shock Absorber, Rh[01.1994 - 08.1996] UZZ32 |
49157-24020 |
US $1,029.39 |
||
|
49158A
|
49158A
90301-23009
Ring, O(For Rear Shock Absorber Accumulator Rh)
[05.1991 - 08.1996] UZZ32 |
90301-23009 |
— | ||
|
49159A
|
49159A
49159-24010 Label, Front Suspension Control Accumulator Caution[05.1991 - 08.1996] UZZ32 |
49159-24010 |
US $2.18 |
||
|
9017908181
|
9017908181
90179-08181 New Genuine Part |
90179-08181 |
US $1.75 |
||
|
9017914035
|
9017914035
90179-14035
New Genuine Part
|
90179-14035 |
— | ||
|
9046073001
|
9046073001
90460-73001
Clamp Or Clip(For Air Hose, No.1)
|
90460-73001 |
— | ||
| replacement | |||||
|
9046073001
|
9046073001
90460-73011 Clamp Or Clip(For Air Hose, No.1) |
90460-73011 |
US $7.04 |
||
|
9046085001
|
9046085001
90460-85001 Clamp Or Clip(For Air Hose, No.2) |
90460-85001 |
US $5.76 |
||
|
9052015007
|
9052015007
90520-15007 New Genuine Part |
90520-15007 |
US $1.89 |
||
|
9056010078
|
9056010078
90560-10078 New Genuine Part |
90560-10078 |
US $1.89 |
||
|
9321914006
|
9321914006
93219-14006
New Genuine Part
|
93219-14006 |
— | ||
