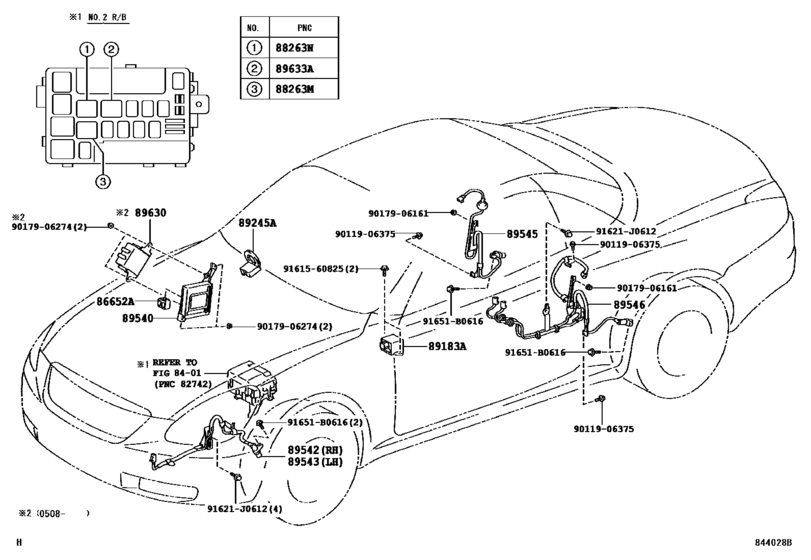

Abs & Vsc ([04.2001 - ] (0104- )) Diagram Toyota SOARER
- Year
- 2001 - 2005
- Sales region
- Japan
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- From
- 04.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86652A
|
86652A
86652-51010 Buzzer Assy[04.2001 - 08.2005] UZZ40 |
86652-51010 |
US $35.67 |
||
|
88263M
|
88263M
88263-24030 Relay, Skid Control[04.2001 - 08.2005] UZZ40 |
88263-24030 |
from US $48.40 |
||
|
88263N
|
88263N
88263-24020 Relay, Skid Control[04.2001 - 08.2005] UZZ40 |
88263-24020 |
from US $45.98 |
||
|
89183A
|
89183A
89183-30060 Sensor, Yawrate[04.2001 - 08.2005] UZZ40 |
89183-30060 |
US $1,116.75 |
||
|
89245A
|
89245A
89245-12010 Sensor, Steering[04.2001 - 08.2005] UZZ40 |
89245-12010 |
US $216.94 |
||
|
89540
|
89540
89540-24150 Computer Assy, Skid Control[04.2001 - 08.2005] UZZ40 |
89540-24150 |
US $3,640 |
||
|
89542
|
89542
89542-30160 Sensor, Speed, Front Rh[04.2001 - 08.2005] UZZ40 |
89542-30160 |
from US $251.16 |
||
|
89543
|
89543
89543-30160 Sensor, Speed, Front Lh[04.2001 - 08.2005] UZZ40 |
89543-30160 |
US $303.80 |
||
|
89545
|
89545
89545-24030 Sensor, Speed, Rear Rh[04.2001 - 08.2005] UZZ40 |
89545-24030 |
US $284.79 |
||
|
89546
|
89546
89546-24020 Sensor, Speed, Rear Lh[04.2001 - 08.2005] UZZ40 |
89546-24020 |
US $243.15 |
||
|
89633A
|
89633A
89633-24010 Relay, Skid Control[04.2001 - 08.2005] UZZ40 |
89633-24010 |
from US $50.67 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.86 |
||
|
9011906375
|
9011906375
90119-06375 Bolt (For Transmission Housing & Case Setting) |
90119-06375 |
US $1.12 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.84 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9161560825
|
9161560825
91615-60825
Bolt(For Intake Manifold To Exhaust Manifold)
|
91615-60825 |
— | ||
| replacement | |||||
|
9161560825
|
9161560825
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
