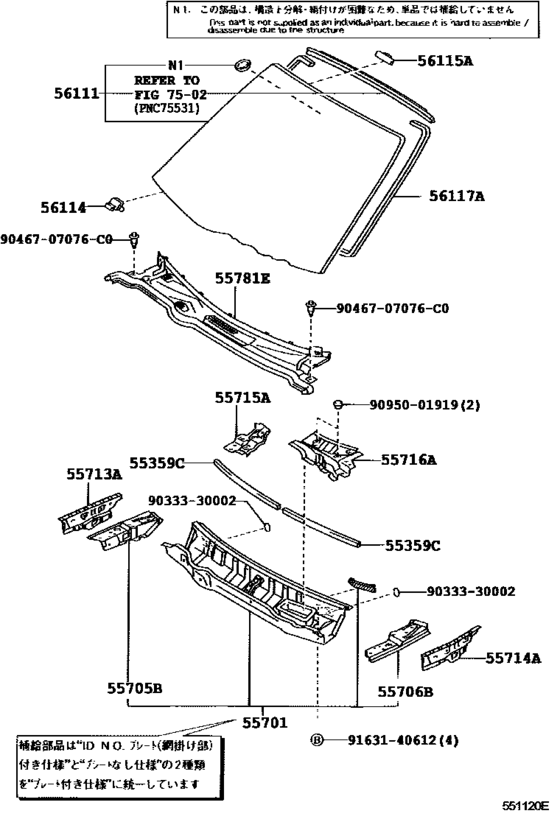

Cowl Panel & Windshield Glass ([04.2001 - ] (0104- )) Diagram Toyota SOARER
- Year
- 2001 - 2005
- Sales region
- Japan
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- From
- 04.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55359C
|
55359C
55359-50010 Coshion, Instrument Panel, No.5[04.2001 - 08.2005] UZZ40 |
55359-50010 |
US $3.20 |
||
|
55701
|
55701
55700-24120 Panel Sub-Assy, Cowl[04.2001 - 08.2005] UZZ40 |
55700-24120 |
US $454.27 |
||
|
55705B
|
55705B
55705-24030 Panel Sub-Assy, Cowl Top Side, Rh[04.2001 - 08.2005] UZZ40 |
55705-24030 |
US $49.50 |
||
|
55706B
|
55706B
55706-24030 Panel Sub-Assy, Cowl Top Side, Lh[04.2001 - 08.2005] UZZ40 |
55706-24030 |
US $49.50 |
||
|
55713A
|
55713A
55713-24040 Panel, Cowl Top Side, Rh[04.2001 - 08.2005] UZZ40 |
55713-24040 |
US $23.59 |
||
|
55714A
|
55714A
55714-24040 Panel, Cowl Top Side, Lh[04.2001 - 08.2005] UZZ40 |
55714-24040 |
US $23.59 |
||
|
55715A
|
55715A
55715-24060 Brace, Cowl Top To Apron, Rh[04.2001 - 08.2005] UZZ40 |
55715-24060 |
US $23.59 |
||
|
55716A
|
55716A
55716-24060 Brace, Cowl Top To Apron, Lh[04.2001 - 08.2005] UZZ40 |
55716-24060 |
US $66.98 |
||
|
55781E
|
55781E
55708-24020 Louver Sub-Assy, Cowl Top Ventilator[04.2001 - 08.2005] UZZ40 |
55708-24020 |
US $120.85 |
||
|
56111
|
56111
56101-24030 Glass, Windshield[04.2001 - 01.2003] UZZ40..5FC ＊ＬＡＭ，Ｔ＝５．３６，グリーン |
56101-24030 |
US $2,285.92 |
||
| replacement | |||||
|
56111
|
56111
56101-24061
Glass, Windshield
[04.2001 - 01.2003] UZZ40..5FC ＊ＬＡＭ，Ｔ＝５．３６，グリーン |
56101-24061 |
— | ||
|
56111
|
56111
56101-24060
Glass, Windshield
[01.2003 - 12.2003] UZZ40..5FC ＊ＥＨＴＬ，Ｔ＝５．３６，グリーン |
56101-24060 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-24061
Glass, Windshield
[01.2003 - 12.2003] UZZ40..5FC ＊ＥＨＴＬ，Ｔ＝５．３６，グリーン |
56101-24061 |
— | ||
|
56111
|
56111
56101-24061
Glass, Windshield
[12.2003 - 08.2005] UZZ40 ＊ＥＨＴＬ，Ｔ＝５．３６，グリーン |
56101-24061 |
— | ||
|
56114
|
56114
56114-50020 Retainer, Windshield Glass[04.2001 - 08.2005] UZZ40 |
56114-50020 |
from US $4.33 |
||
|
56115A
|
56115A
56116-35050 Stopper, Windshield Glass, No.1[04.2001 - 08.2005] UZZ40 |
56116-35050 |
from US $1.92 |
||
|
56117A
|
56117A
56117-24060 Dam, Window Glass Adhesive[04.2001 - 08.2005] UZZ40 長さ＝２６８０ |
56117-24060 |
US $20.97 |
||
| replacement | |||||
|
56117A
|
56117A
56117-64010 Dam, Window Glass Adhesive[04.2001 - 08.2005] UZZ40 長さ＝２６８０ |
56117-64010 |
US $22.50 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9046707076C0
|
9046707076C0
90467-07076-C0 Clip, Radiator Grille |
90467-07076-C0 |
from US $0.99 |
||
|
9095001919
|
9095001919
90950-01919 Cushion, Rear Seat |
90950-01919 |
US $1.60 |
||
|
9163140612
|
9163140612
91631-40612 New Genuine Part |
91631-40612 |
US $1.75 |
||
