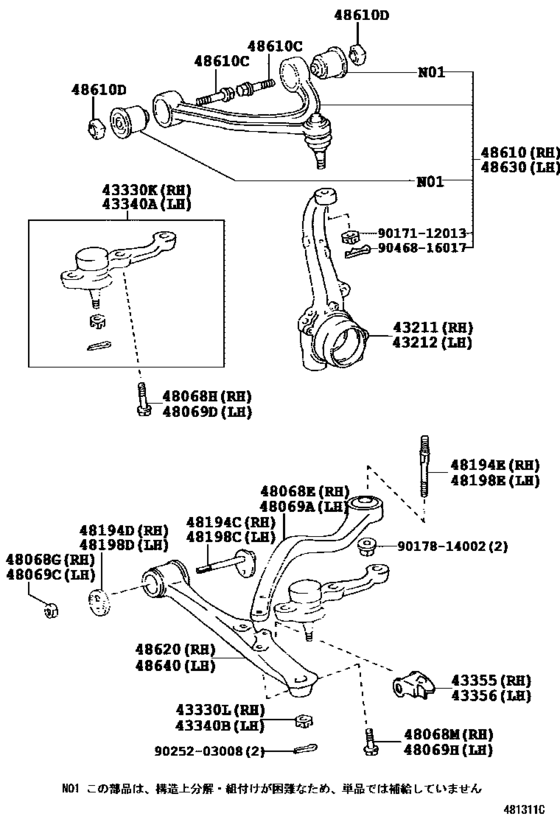

Front Axle Arm & Steering Knuckle ([04.2001 - ] (0104- )) Diagram Toyota SOARER
- Year
- 2001 - 2005
- Sales region
- Japan
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- From
- 04.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-30210 Knuckle, Steering, Rh[04.2001 - 08.2005] UZZ40 |
43211-30210 |
from US $313.92 |
||
|
43212
|
43212
43212-30210 Knuckle, Steering, Lh[04.2001 - 08.2005] UZZ40 |
43212-30210 |
from US $313.92 |
||
|
43330K
|
43330K
43330-39535 Joint Assy, Lower Ball, Front Rh[04.2001 - 08.2005] UZZ40 |
43330-39535 |
from US $73.57 |
||
|
43330L
|
43330L
90171-14002 Nut (For Rear Steering Knuckle Arm)[04.2001 - 08.2005] UZZ40 |
90171-14002 |
US $3.84 |
||
|
43340A
|
43340A
43340-39415 Joint Assy, Lower Ball, Front Lh[04.2001 - 08.2005] UZZ40 |
43340-39415 |
from US $73.57 |
||
|
43340B
|
43340B
90171-14002 Nut (For Rear Steering Knuckle Arm)[04.2001 - 08.2005] UZZ40 |
90171-14002 |
US $3.84 |
||
|
43355
|
43355
43355-30030 Deflector, Lower Arm Ice, Rh[04.2001 - 08.2005] UZZ40 |
43355-30030 |
US $6.84 |
||
|
43356
|
43356
43355-30030 Deflector, Lower Arm Ice, Rh[04.2001 - 08.2005] UZZ40 |
43355-30030 |
US $6.84 |
||
|
48068E
|
48068E
48660-24020 Arm Sub-Assy, Front Suspension, Lower No.2 Rh[04.2001 - 08.2005] UZZ40 |
48660-24020 |
US $139.12 |
||
|
48068G
|
48068G
90179-14019 Nut[04.2001 - 08.2005] UZZ40 |
90179-14019 |
from US $1.40 |
||
|
48068H
|
48068H
90105-12141 Bolt (For Front Lower Ball Joint)[04.2001 - 08.2005] UZZ40 |
90105-12141 |
from US $2.22 |
||
|
48068M
|
48068M
90105-14127 Bolt (For Front Suspension Lower Arm No.2)[04.2001 - 08.2005] UZZ40 |
90105-14127 |
US $6.24 |
||
|
48069A
|
48069A
48670-24020 Arm Sub-Assy, Front Suspension, Lower No.2 Lh[04.2001 - 08.2005] UZZ40 |
48670-24020 |
from US $139.12 |
||
|
48069C
|
48069C
90179-14019 Nut[04.2001 - 08.2005] UZZ40 |
90179-14019 |
from US $1.40 |
||
|
48069D
|
48069D
90105-12141 Bolt (For Front Lower Ball Joint)[04.2001 - 08.2005] UZZ40 |
90105-12141 |
from US $2.22 |
||
|
48069H
|
48069H
90105-14127 Bolt (For Front Suspension Lower Arm No.2)[04.2001 - 08.2005] UZZ40 |
90105-14127 |
US $6.24 |
||
|
48194C
|
48194C
48190-30040 Cam, Suspension Camber Adjust, No.1[04.2001 - 08.2005] UZZ40 |
48190-30040 |
from US $11.78 |
||
|
48194D
|
48194D
48198-30060 Cam, Front Suspension Camber Adjust, No.2[04.2001 - 08.2005] UZZ40 |
48198-30060 |
from US $10.72 |
||
|
48194E
|
48194E
90109-14009 Cam, Front Suspension Camber Adjust, No.3[04.2001 - 08.2005] UZZ40 |
90109-14009 |
US $9.44 |
||
|
48198C
|
48198C
48190-30040 Cam, Suspension Camber Adjust, No.1[04.2001 - 08.2005] UZZ40 |
48190-30040 |
from US $11.78 |
||
|
48198D
|
48198D
48198-30060 Cam, Front Suspension Camber Adjust, No.2[04.2001 - 08.2005] UZZ40 |
48198-30060 |
from US $10.72 |
||
|
48198E
|
48198E
90109-14009 Cam, Front Suspension Camber Adjust, No.3[04.2001 - 08.2005] UZZ40 |
90109-14009 |
US $9.44 |
||
|
48610
|
48610
48610-39085 Arm Assy, Front Suspension Upper, Rh[04.2001 - 08.2005] UZZ40 |
48610-39085 |
US $371 |
||
|
48610C
|
48610C
90119-10853 Bolt(For Suspension Upper Arm)[04.2001 - 01.2004] UZZ40..5FC |
90119-10853 |
US $4.16 |
||
|
48610C
|
48610C
91672-G1070 Bolt(For Suspension Upper Arm)[01.2004 - 08.2005] UZZ40 |
91672-G1070 |
US $3.04 |
||
|
48610D
|
48610D
90173-10010 Nut(For Suspension Upper Arm)[04.2001 - 07.2001] UZZ40..5FC |
90173-10010 |
US $2.24 |
||
|
48610D
|
48610D
90173-10012 Nut(For Suspension Upper Arm)[07.2001 - 08.2005] UZZ40 |
90173-10012 |
US $1.60 |
||
|
48620
|
48620
48068-30300 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[04.2001 - 08.2005] UZZ40 |
48068-30300 |
from US $273.60 |
||
|
48630
|
48630
48630-39055 Arm Assy, Front Suspension, Upper Lh[04.2001 - 08.2005] UZZ40 |
48630-39055 |
US $371 |
||
|
48640
|
48640
48069-30300 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[04.2001 - 08.2005] UZZ40 |
48069-30300 |
from US $273.60 |
||
|
9017112013
|
9017112013
90171-12013 New Genuine Part |
90171-12013 |
US $1.75 |
||
|
9017814002
|
9017814002
90178-14002 NUT, FLANGE |
90178-14002 |
US $1.92 |
||
|
9025203008
|
9025203008
90252-03008 PIN COTTER |
90252-03008 |
US $1.12 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.80 |
