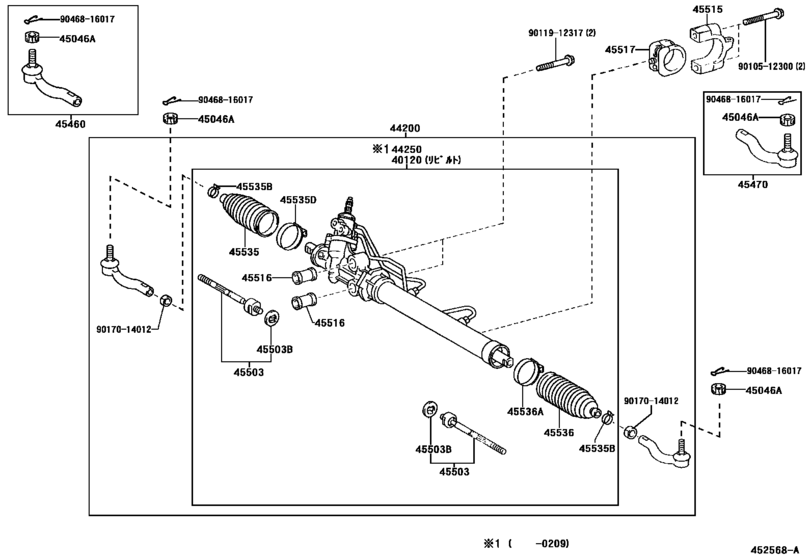

Front Steering Gear & Link ([04.2001 - ] (0104- )) Diagram Toyota SOARER
- Year
- 2001 - 2005
- Sales region
- Japan
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- From
- 04.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
40120
|
40120
40120-24170 Gear Assy,power Steering,rebuilt[04.2001 - 08.2005] UZZ40 ＴＯＹＯＤＡ ＫＯＫＩ |
40120-24170 |
US $910.29 |
||
|
44200
|
44200
44200-24190 Link Assy, Power Steering[04.2001 - 08.2005] UZZ40 |
44200-24190 |
US $1,313.31 |
||
|
44250
|
44250
44250-24170 Gear Assy, Power Steering(For Rack & Pinion)[04.2001 - 09.2002] UZZ40..5FC |
44250-24170 |
US $1,438.53 |
||
| replacement | |||||
|
44250
|
44250
44200-24190 Link Assy, Power Steering[04.2001 - 09.2002] UZZ40..5FC |
44200-24190 |
US $1,313.31 |
||
|
45046A
|
45046A
90171-12002 Nut, Castle(For Tie Rod End)[04.2001 - 08.2005] UZZ40 |
90171-12002 |
from US $1.19 |
||
|
45460
|
45460
45460-59015 Rod Assy, Tie, Rh[04.2001 - 08.2005] UZZ40 |
45460-59015 |
from US $75.48 |
||
|
45470
|
45470
45470-59015 Rod Assy, Tie, Lh[04.2001 - 08.2005] UZZ40 |
45470-59015 |
from US $75.48 |
||
|
45503
|
45503
45503-29795 End Sub-Assy, Steering Rack[04.2001 - 08.2005] UZZ40 |
45503-29795 |
from US $91.76 |
||
|
45503B
|
45503B
90214-14007 Washer, Claw(For Power Steering Rack End)[04.2001 - 08.2005] UZZ40 外径＝３８ |
90214-14007 |
from US $1.56 |
||
|
45515
|
45515
45515-30080 Bracket, Steering Rack Housing, No.2[04.2001 - 08.2005] UZZ40 |
45515-30080 |
US $13.40 |
||
|
45516
|
45516
45516-30060 Grommet, Steering Rack Housing, No.1[04.2001 - 08.2005] UZZ40 |
45516-30060 |
US $20.52 |
||
|
45517
|
45517
45517-30050 Grommet, Steering Rack Housing, No.2[04.2001 - 08.2005] UZZ40 |
45517-30050 |
from US $13.44 |
||
|
45535
|
45535
45535-30010 Boot, Steering Rack, No.1[04.2001 - 08.2005] UZZ40 |
45535-30010 |
US $19.46 |
||
|
45535B
|
45535B
90467-19012
Clip
[04.2001 - 04.2002] UZZ40..5FC |
90467-19012 |
— | ||
| replacement | |||||
|
45535B
|
45535B
90467-19019 Clip[04.2001 - 04.2002] UZZ40..5FC |
90467-19019 |
from US $4.41 |
||
|
45535B
|
45535B
90467-19019 Clip[04.2002 - 08.2005] UZZ40 |
90467-19019 |
from US $4.41 |
||
|
45535D
|
45535D
90460-49004 Clamp(For Steering Rack Boot No.1)[04.2001 - 08.2005] UZZ40 |
90460-49004 |
US $4 |
||
|
45536
|
45536
45535-30010 Boot, Steering Rack, No.1[04.2001 - 08.2005] UZZ40 |
45535-30010 |
US $19.46 |
||
|
45536A
|
45536A
90460-49004 Clamp(For Steering Rack Boot No.1)[04.2001 - 08.2005] UZZ40 |
90460-49004 |
US $4 |
||
|
9010512300
|
9010512300
90105-12300 BOLT WASHER BASED |
90105-12300 |
US $5.07 |
||
|
9011912317
|
9011912317
90119-12317 New Genuine Part |
90119-12317 |
US $5.07 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.80 |
||
