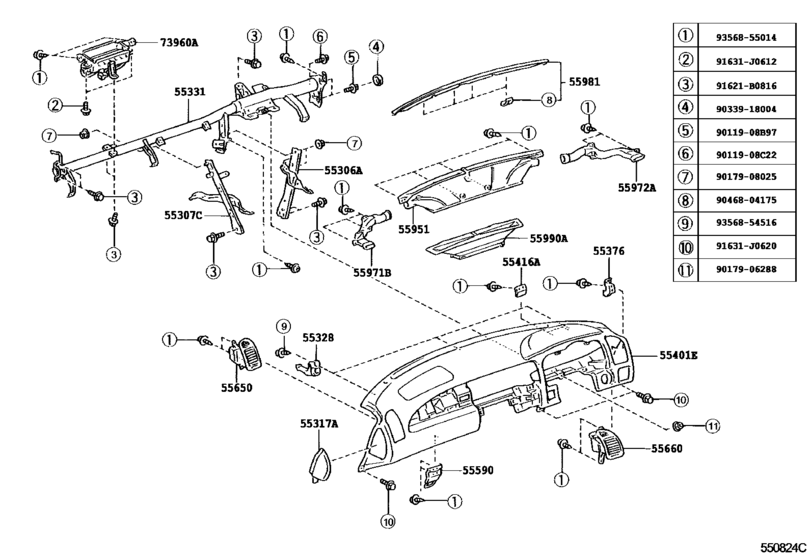

Instrument Panel & Glove Compartment ([04.2001 - 08.2006] (0104-0608)) Diagram Toyota SOARER
- Year
- 2001 - 2005
- Sales region
- Japan
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- From
- 04.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55306A
|
55306A
55306-24060 Brace Sub-Assy, Instrument Panel, No.1[04.2001 - 08.2005] UZZ40 |
55306-24060 |
US $46.16 |
||
|
55307C
|
55307C
55307-24040 Brace Sub-Assy, Instrument Panel, No.2[04.2001 - 08.2005] UZZ40 |
55307-24040 |
US $43.68 |
||
|
55317A
|
55317A
55317-24030-C0 Panel, Instrument Side, Rh[04.2001 - 08.2002] UZZ40 BLACK,TRIM0#,20,21 |
55317-24030-C0 |
US $17.04 |
||
|
55328
|
55328
55328-48010 Pin, Instrument Panel, No.1[04.2001 - 06.2001] UZZ40..5FC |
55328-48010 |
US $6.41 |
||
| replacement | |||||
|
55328
|
55328
55328-48040 Pin, Instrument Panel, No.1[04.2001 - 06.2001] UZZ40..5FC |
55328-48040 |
US $5.10 |
||
|
55328
|
55328
55328-48040 Pin, Instrument Panel, No.1[06.2001 - 08.2005] UZZ40 |
55328-48040 |
US $5.10 |
||
|
55331
|
55331
55330-24100 Reinforcement, Instrument Panel[04.2001 - 08.2005] UZZ40 |
55330-24100 |
US $248.98 |
||
|
55376
|
55376
55376-24040 Bracket, Instrument Panel Mounting, No.1[04.2001 - 08.2005] UZZ40 |
55376-24040 |
US $3.93 |
||
|
55401E
|
55401E
55401-24110-C0 Pad Sub-Assy, Instrument Panel Safety[04.2001 - 08.2002] UZZ40 BLACK,TRIM0#,20,21 |
55401-24110-C0 |
US $1,074.53 |
||
| replacement | |||||
|
55401E
|
55401E
55400-24010-C0 Pad Sub-Assy, Instrument Panel Safety[04.2001 - 08.2002] UZZ40 BLACK,TRIM0#,20,21 |
55400-24010-C0 |
US $1,173.54 |
||
|
55416A
|
55416A
55416-30140 Retainer, Meter Hood, No.1[04.2001 - 08.2005] UZZ40 |
55416-30140 |
US $2.04 |
||
|
55590
|
55590
55590-24030 Plate Assy, Grove Compartment Door Lock Striker[04.2001 - 08.2005] UZZ40 |
55590-24030 |
US $9.90 |
||
|
55650
|
55650
55650-24050-C0
Register Assy, Instrument Panel, No.1
[04.2001 - 08.2002] UZZ40 BLACK,TRIM0#,20,21 |
55650-24050-C0 |
— | ||
|
55660
|
55660
55660-24090-C0
Register Assy, Instrument Panel, No.2
[04.2001 - 08.2002] UZZ40 BLACK,TRIM0#,20,21 |
55660-24090-C0 |
— | ||
|
55951
|
55951
55951-24040 Nozzle, Defroster, Front[04.2001 - 08.2005] UZZ40 |
55951-24040 |
US $63.19 |
||
|
55971B
|
55971B
55971-24060 Duct, Side Defroster Nozzle, No.1[04.2001 - 08.2005] UZZ40 |
55971-24060 |
US $13.83 |
||
|
55972A
|
55972A
55972-24050 Duct, Side Defroster Nozzle, No.2[04.2001 - 08.2005] UZZ40 |
55972-24050 |
US $13.83 |
||
|
55981
|
55981
55981-24060-C0 Garnish, Defroster Nozzle, No.1[04.2001 - 08.2002] UZZ40 BLACK,TRIM0#,20,21 |
55981-24060-C0 |
US $38 |
||
|
55990A
|
55990A
55990-24020 Nozzle Assy, Defroster, Lower[04.2001 - 08.2005] UZZ40 |
55990-24020 |
US $30.87 |
||
|
73960A
|
73960A
73960-24020 Air Bag Assy, Instrument Panel Passenger W/o Door[04.2001 - 08.2005] UZZ40 |
73960-24020 |
US $1,616.16 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
91631J0620
|
91631J0620
91631-J0620 New Genuine Part |
91631-J0620 |
US $0.44 |
||
|
9011908B97
|
9011908B97
90119-08B97 New Genuine Part |
90119-08B97 |
US $2.33 |
||
|
9011908C22
|
9011908C22
90119-08C22 New Genuine Part |
90119-08C22 |
US $3.35 |
||
|
9017906288
|
9017906288
90179-06288 NUT |
90179-06288 |
US $1.12 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9033918004
|
9033918004
90339-18004 New Genuine Part |
90339-18004 |
US $1.93 |
||
|
9046804175
|
9046804175
90468-04175 Retainer, Side Defroster |
90468-04175 |
US $0.58 |
||
|
9356854516
|
9356854516
93568-54516 SCREW TAPPING |
93568-54516 |
US $1.76 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
