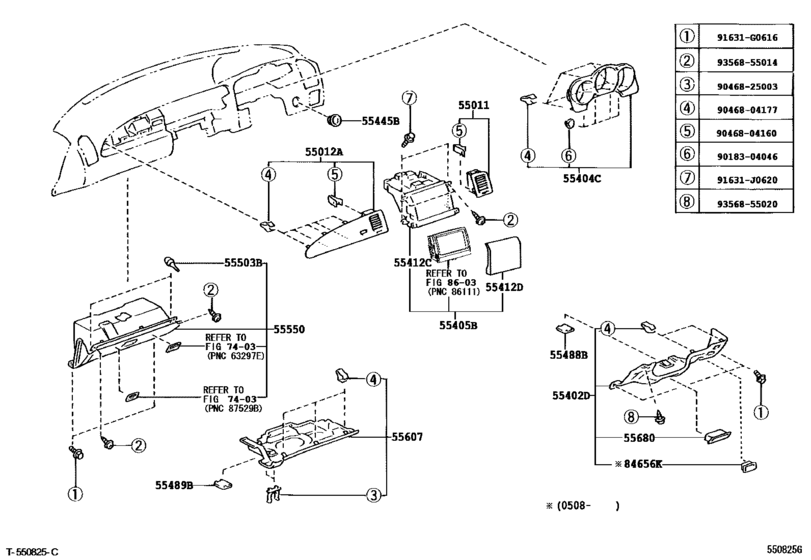

Instrument Panel & Glove Compartment ([04.2001 - 08.2006] (0104-0608)) Diagram Toyota SOARER
- Year
- 2001 - 2005
- Sales region
- Japan
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- From
- 04.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55011
|
55011
55011-24080-B0 Garnish Sub-Assy, Instrument Panel Safety Pad[04.2001 - 07.2005] UZZ40 ECRU BROWN,TRIM0# |
55011-24080-B0 |
US $366.91 |
||
| replacement | |||||
|
55011
|
55011
55011-24080-B3 Garnish Sub-Assy, Instrument Panel Safety Pad[04.2001 - 07.2005] UZZ40 ECRU BROWN,TRIM0# |
55011-24080-B3 |
US $305.76 |
||
|
55011
|
55011
55011-24080-B3 Garnish Sub-Assy, Instrument Panel Safety Pad[07.2005 - 08.2005] UZZ40 ECRU BROWN,TRIM00 |
55011-24080-B3 |
US $305.76 |
||
|
55011
|
55011
55011-24080-D0 Garnish Sub-Assy, Instrument Panel Safety Pad[04.2001 - 07.2005] UZZ40 RED,TRIM3# |
55011-24080-D0 |
US $366.91 |
||
| replacement | |||||
|
55011
|
55011
55011-24080-D1 Garnish Sub-Assy, Instrument Panel Safety Pad[04.2001 - 07.2005] UZZ40 RED,TRIM3# |
55011-24080-D1 |
US $366.91 |
||
|
55011
|
55011
55011-24080-D1 Garnish Sub-Assy, Instrument Panel Safety Pad[07.2005 - 08.2005] UZZ40 RED,TRIM30 |
55011-24080-D1 |
US $366.91 |
||
|
55011
|
55011
55011-24080-E0
Garnish Sub-Assy, Instrument Panel Safety Pad
[04.2001 - 07.2005] UZZ40 MD.BROWN,TRIM20,21 |
55011-24080-E0 |
— | ||
| replacement | |||||
|
55011
|
55011
55011-24080-E3
Garnish Sub-Assy, Instrument Panel Safety Pad
[04.2001 - 07.2005] UZZ40 MD.BROWN,TRIM20,21 |
55011-24080-E3 |
— | ||
|
55011
|
55011
55011-24080-E3
Garnish Sub-Assy, Instrument Panel Safety Pad
[07.2005 - 08.2005] UZZ40 MD.BROWN,TRIM20,21 |
55011-24080-E3 |
— | ||
|
55012A
|
55012A
55012-24030-B0 Garnish Sub-Assy, Instrument Panel, No.2[04.2001 - 07.2005] UZZ40 ECRU BROWN,TRIM0# |
55012-24030-B0 |
US $832.83 |
||
| replacement | |||||
|
55012A
|
55012A
55012-24050-B1 Garnish Sub-Assy, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [04.2001 - 07.2005] UZZ40 ECRU BROWN,TRIM0# |
55012-24050-B1 |
US $832.83 |
||
|
55012A
|
55012A
55012-24030-B3 Garnish Sub-Assy, Instrument Panel, No.2[07.2005 - 08.2005] UZZ40 ECRU BROWN,TRIM00 |
55012-24030-B3 |
US $690.14 |
||
| replacement | |||||
|
55012A
|
55012A
55012-24050-B1 Garnish Sub-Assy, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [07.2005 - 08.2005] UZZ40 ECRU BROWN,TRIM00 |
55012-24050-B1 |
US $832.83 |
||
|
55012A
|
55012A
55012-24030-D0 Garnish Sub-Assy, Instrument Panel, No.2[04.2001 - 07.2005] UZZ40 RED,TRIM3# |
55012-24030-D0 |
US $832.83 |
||
| replacement | |||||
|
55012A
|
55012A
55012-24030-D1 Garnish Sub-Assy, Instrument Panel, No.2[04.2001 - 07.2005] UZZ40 RED,TRIM3# |
55012-24030-D1 |
US $832.83 |
||
|
55012A
|
55012A
55012-24030-D1 Garnish Sub-Assy, Instrument Panel, No.2[07.2005 - 08.2005] UZZ40 RED,TRIM30 |
55012-24030-D1 |
US $832.83 |
||
|
55012A
|
55012A
55012-24030-E0
Garnish Sub-Assy, Instrument Panel, No.2
[04.2001 - 07.2005] UZZ40 MD.BROWN,TRIM20,21 |
55012-24030-E0 |
— | ||
| replacement | |||||
|
55012A
|
55012A
55012-24050-E2 Garnish Sub-Assy, Instrument Panel, No.2[04.2001 - 07.2005] UZZ40 MD.BROWN,TRIM20,21 |
55012-24050-E2 |
US $899.81 |
||
|
55012A
|
55012A
55012-24030-E3 Garnish Sub-Assy, Instrument Panel, No.2[07.2005 - 08.2005] UZZ40 MD.BROWN,TRIM20,21 |
55012-24030-E3 |
US $690.14 |
||
| replacement | |||||
|
55012A
|
55012A
55012-24050-E2 Garnish Sub-Assy, Instrument Panel, No.2[07.2005 - 08.2005] UZZ40 MD.BROWN,TRIM20,21 |
55012-24050-E2 |
US $899.81 |
||
|
55402D
|
55402D
55402-24020-A0 Pad Sub-Assy, Instrument Panel Safety, No.1[04.2001 - 08.2005] UZZ40 ECRU,TRIM0# |
55402-24020-A0 |
US $250.43 |
||
|
55402D
|
55402D
55402-24020-C0 Pad Sub-Assy, Instrument Panel Safety, No.1[04.2001 - 08.2005] UZZ40 BLACK,TRIM20,21 |
55402-24020-C0 |
US $250.43 |
||
|
55402D
|
55402D
55402-24020-D0 Pad Sub-Assy, Instrument Panel Safety, No.1[08.2002 - 08.2005] UZZ40 RED,TRIM3# |
55402-24020-D0 |
US $250.43 |
||
|
55404C
|
55404C
55404-24060 Panel Sub-Assy, Instrument Cluster Finish, No.2[04.2001 - 08.2005] UZZ40 |
55404-24060 |
US $139.78 |
||
|
55405B
|
55405B
55405-24030-B0 Panel Sub-Assy, Instrument Cluster Finish, Center[04.2001 - 05.2004] UZZ40 ECRU BROWN,TRIM0# |
55405-24030-B0 |
US $7,411.04 |
||
|
55405B
|
55405B
55405-24030-D0 Panel Sub-Assy, Instrument Cluster Finish, Center[04.2001 - 05.2004] UZZ40 RED,TRIM3# |
55405-24030-D0 |
US $7,411.04 |
||
|
55405B
|
55405B
55405-24030-E0 Panel Sub-Assy, Instrument Cluster Finish, Center[04.2001 - 05.2004] UZZ40 MD.BROWN,TRIM20,21 |
55405-24030-E0 |
US $7,411.04 |
||
|
55405B
|
55405B
55405-24031-B0 Panel Sub-Assy, Instrument Cluster Finish, Center[05.2004 - 08.2005] UZZ40 ECRU BROWN,TRIM0# |
55405-24031-B0 |
US $7,411.04 |
||
|
55405B
|
55405B
55405-24031-D0 Panel Sub-Assy, Instrument Cluster Finish, Center[05.2004 - 08.2005] UZZ40 RED,TRIM3# |
55405-24031-D0 |
US $7,411.04 |
||
|
55405B
|
55405B
55405-24031-E0 Panel Sub-Assy, Instrument Cluster Finish, Center[05.2004 - 08.2005] UZZ40 MD.BROWN,TRIM20,21 |
55405-24031-E0 |
US $7,411.04 |
||
|
55412C
|
55412C
55405-24080
Panel, Instrument Cluster Finish, Center No.1
[04.2001 - 05.2004] UZZ40 |
55405-24080 |
— | ||
|
55412C
|
55412C
55405-24090 Panel, Instrument Cluster Finish, Center No.1[05.2004 - 08.2005] UZZ40 |
55405-24090 |
US $2,446.08 |
||
|
55412D
|
55412D
55412-24050-B0 Panel, Instrument Cluster Finish, Center[04.2001 - 08.2005] UZZ40 ECRU BROWN,TRIM0# |
55412-24050-B0 |
US $384.38 |
||
|
55412D
|
55412D
55412-24050-D0 Panel, Instrument Cluster Finish, Center[04.2001 - 08.2005] UZZ40 RED,TRIM3# |
55412-24050-D0 |
US $467.38 |
||
|
55412D
|
55412D
55412-24050-E0 Panel, Instrument Cluster Finish, Center[04.2001 - 08.2005] UZZ40 MD.BROWN,TRIM20,21 |
55412-24050-E0 |
US $384.38 |
||
|
55445B
|
55445B
55445-30160-C0 Plate, Instrument Panel Finish[04.2001 - 08.2002] UZZ40 BLACK,TRIM0#,20,21 |
55445-30160-C0 |
US $3.06 |
||
|
55488B
|
55488B
55489-50010 Lens, Front Foot Lamp, No.1[04.2001 - 08.2005] UZZ40 |
55489-50010 |
US $3.79 |
||
|
55489B
|
55489B
55489-50010 Lens, Front Foot Lamp, No.1[04.2001 - 08.2005] UZZ40 |
55489-50010 |
US $3.79 |
||
|
55503B
|
55503B
90541-05020 Cushion(For Glove Compartment)[04.2001 - 08.2005] UZZ40 |
90541-05020 |
from US $0.87 |
||
|
55550
|
55550
55550-24090-A0 Door Assy, Glove Compartment[04.2001 - 08.2005] UZZ40 ECRU,TRIM0# |
55550-24090-A0 |
US $313.04 |
||
|
55550
|
55550
55550-24090-C0 Door Assy, Glove Compartment[04.2001 - 08.2005] UZZ40 BLACK,TRIM20,21 |
55550-24090-C0 |
US $313.04 |
||
|
55550
|
55550
55550-24090-D0 Door Assy, Glove Compartment[08.2002 - 08.2005] UZZ40 RED,TRIM3# |
55550-24090-D0 |
US $313.04 |
||
|
55607
|
55607
55607-24080-A0 Cover Sub-Assy, Instrument Panel Under, No.2[04.2001 - 08.2005] UZZ40 ECRU,TRIM0# |
55607-24080-A0 |
US $75.71 |
||
| replacement | |||||
|
55607
|
55607
55607-24080-C0 Cover Sub-Assy, Instrument Panel Under, No.2[04.2001 - 08.2005] UZZ40 ECRU,TRIM0# |
55607-24080-C0 |
US $75.71 |
||
|
55607
|
55607
55607-24080-C0 Cover Sub-Assy, Instrument Panel Under, No.2[04.2001 - 08.2005] UZZ40 BLACK,TRIM20,21 |
55607-24080-C0 |
US $75.71 |
||
|
55607
|
55607
55607-24080-D0 Cover Sub-Assy, Instrument Panel Under, No.2[08.2002 - 08.2005] UZZ40 RED,TRIM3# |
55607-24080-D0 |
US $75.71 |
||
|
55680
|
55680
55680-17050-22 Register Assy, Instrument Panel, Lower No.1[04.2001 - 08.2005] UZZ40 BLACK,TRIM20,21 |
55680-17050-22 |
US $18.87 |
||
|
55680
|
55680
55680-17050-A1 Register Assy, Instrument Panel, Lower No.1[04.2001 - 08.2005] UZZ40 ECRU,TRIM0# |
55680-17050-A1 |
US $17.91 |
||
|
55680
|
55680
55680-17050-D0 Register Assy, Instrument Panel, Lower No.1[08.2002 - 08.2005] UZZ40 RED,TRIM3# |
55680-17050-D0 |
US $17.91 |
||
|
91631G0616
|
91631G0616
91631-G0616 New Genuine Part |
91631-G0616 |
US $1.60 |
||
|
91631J0620
|
91631J0620
91631-J0620 New Genuine Part |
91631-J0620 |
US $0.44 |
||
|
9018304046
|
9018304046
90183-04046 New Genuine Part |
90183-04046 |
US $1.92 |
||
|
9046804160
|
9046804160
90468-04160 Clip, Instrument Panel, No.2 |
90468-04160 |
from US $0.96 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.64 |
||
|
9046825003
|
9046825003
90468-25003 Clip, Instrument Panel, No.2 |
90468-25003 |
US $2.56 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
|
9356855020
|
9356855020
93568-55020 New Genuine Part |
93568-55020 |
US $1.02 |
||
