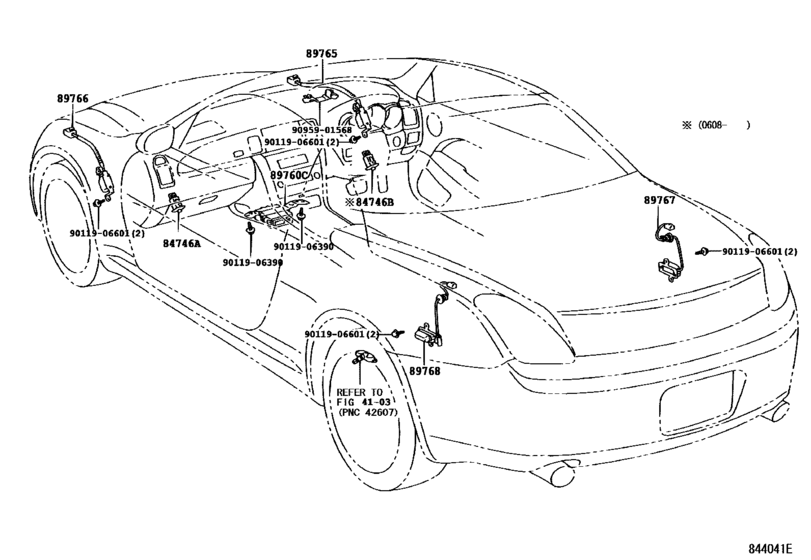

Tire Pressure Warning System ([04.2001 - ] (0104- )) Diagram Toyota SOARER
- Year
- 2001 - 2005
- Sales region
- Japan
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- From
- 04.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84746A
|
84746A
84746-24010 Switch, Tire Pressure Warning, No.1[04.2001 - 08.2005] UZZ40 |
84746-24010 |
US $41.35 |
||
| replacement | |||||
|
84746A
|
84746A
84746-60020 Switch, Tire Pressure Warning, No.1TIRE PRESSURE WARNING, NO.1 [04.2001 - 08.2005] UZZ40 |
84746-60020 |
US $41.35 |
||
|
89760C
|
89760C
89760-24010 Receiver Assy, Tire Pressure Monitor[04.2001 - 08.2005] UZZ40 |
89760-24010 |
US $623.17 |
||
|
89765
|
89765
89765-24010 Antenna, Tire Pressure, Front Rh[04.2001 - 08.2005] UZZ40 |
89765-24010 |
US $116.48 |
||
| replacement | |||||
|
89765
|
89765
89765-24011 Antenna, Tire Pressure, Front Rh[04.2001 - 08.2005] UZZ40 |
89765-24011 |
US $94.64 |
||
|
89766
|
89766
89766-24010 Antenna, Tire Pressure, Front Lh[04.2001 - 08.2005] UZZ40 |
89766-24010 |
US $116.48 |
||
| replacement | |||||
|
89766
|
89766
89766-24011 Antenna, Tire Pressure, Front Lh[04.2001 - 08.2005] UZZ40 |
89766-24011 |
US $94.64 |
||
|
89767
|
89767
89767-24010 Antenna, Tire Pressure, Rear Rh[04.2001 - 08.2005] UZZ40 |
89767-24010 |
US $116.48 |
||
| replacement | |||||
|
89767
|
89767
89767-24011 Antenna, Tire Pressure, Rear Rh[04.2001 - 08.2005] UZZ40 |
89767-24011 |
US $94.64 |
||
|
89768
|
89768
89768-24010 Antenna, Tire Pressure, Rear Lh[04.2001 - 08.2005] UZZ40 |
89768-24010 |
US $116.48 |
||
| replacement | |||||
|
89768
|
89768
89768-24011 Antenna, Tire Pressure, Rear Lh[04.2001 - 08.2005] UZZ40 |
89768-24011 |
US $94.64 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9011906601
|
9011906601
90119-06601
New Genuine Part
|
90119-06601 |
— | ||
|
9095901568
|
9095901568
90959-01568 Clamp |
90959-01568 |
US $1.76 |
||
