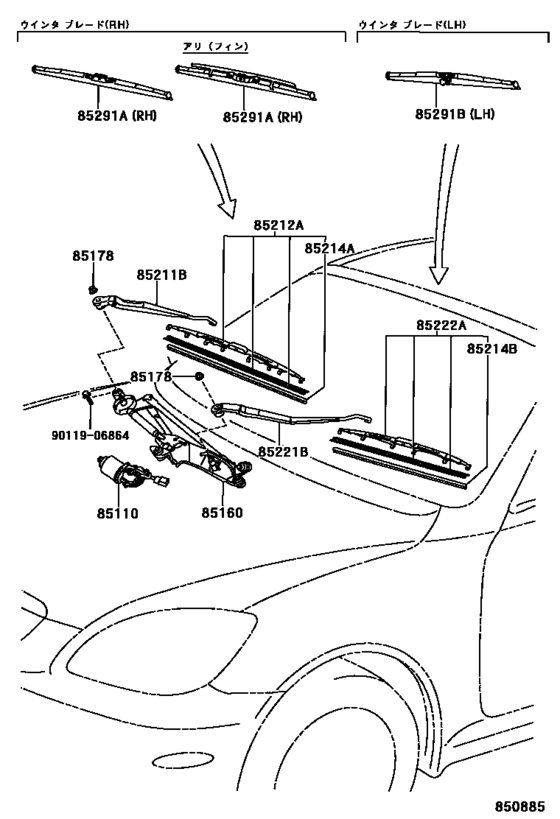

Windshield Wiper ([04.2001 - ] (0104- )) Diagram Toyota SOARER
- Year
- 2001 - 2005
- Sales region
- Japan
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- From
- 04.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-24090 Motor Assy, Windshield Wiper[04.2001 - 08.2005] UZZ40 |
85110-24090 |
US $346.53 |
||
|
85160
|
85160
85150-24100 Link Assy, Windshield Wiper[04.2001 - 08.2005] UZZ40 ｶﾝﾚｲﾁ ｼﾖｳ |
85150-24100 |
US $186.37 |
||
| replacement | |||||
|
85160
|
85160
85150-24101 Link Assy, Windshield Wiper[04.2001 - 08.2005] UZZ40 ｶﾝﾚｲﾁ ｼﾖｳ |
85150-24101 |
US $154.34 |
||
|
85160
|
85160
85150-24110 Link Assy, Windshield Wiper[04.2001 - 08.2005] UZZ40 |
85150-24110 |
US $154.34 |
||
|
85178
|
85178
90176-10005 Nut (For Front Wiper Arm Setting)[04.2001 - 08.2005] UZZ40 |
90176-10005 |
from US $1.05 |
||
|
85211B
|
85211B
85211-24120 Arm, Front Wiper, Rh[04.2001 - 08.2005] UZZ40 |
85211-24120 |
US $62.75 |
||
| replacement | |||||
|
85211B
|
85211B
85211-24121 Arm, Front Wiper, Rh[04.2001 - 08.2005] UZZ40 |
85211-24121 |
US $52.27 |
||
|
85212A
|
85212A
85212-24100
Blade, Fr Wiper, Rh
[04.2001 - 08.2005] UZZ40 |
85212-24100 |
— | ||
| replacement | |||||
|
85212A
|
85212A
85212-30370 Blade, Fr Wiper, Rh[04.2001 - 08.2005] UZZ40 |
85212-30370 |
US $51.07 |
||
|
85214A
|
85214A
85214-50100 Rubber, Wiper, Rh[04.2001 - 08.2005] UZZ40 |
85214-50100 |
from US $13.34 |
||
|
85214B
|
85214B
85214-24050
Rubber, Wiper, Rh
[04.2001 - 08.2005] UZZ40 |
85214-24050 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-24051 Rubber, Wiper, Rh[04.2001 - 08.2005] UZZ40 |
85214-24051 |
from US $12.80 |
||
|
85221B
|
85221B
85221-24120 Arm, Front Wiper, Lh[04.2001 - 08.2005] UZZ40 |
85221-24120 |
US $71.34 |
||
| replacement | |||||
|
85221B
|
85221B
85221-24121 Arm, Front Wiper, Lh[04.2001 - 08.2005] UZZ40 |
85221-24121 |
US $73.64 |
||
|
85222A
|
85222A
85222-24100
Blade, Fr Wiper, Lh
[04.2001 - 08.2005] UZZ40 |
85222-24100 |
— | ||
| replacement | |||||
|
85222A
|
85222A
85222-43021 Blade, Fr Wiper, Lh[04.2001 - 08.2005] UZZ40 |
85222-43021 |
US $36.48 |
||
|
85291A
|
85291A
85291-24090 Blade, Front Wiper, Winter, Rh[04.2001 - 08.2005] UZZ40 |
85291-24090 |
US $51.72 |
||
|
85291A
|
85291A
85291-24100 Blade, Front Wiper, Winter, Rh[04.2001 - 08.2005] UZZ40 ｱﾘ(ﾌｲﾝ) |
85291-24100 |
US $102.12 |
||
|
85291B
|
85291B
85291-24110 Blade, Front Wiper, Winter, Lh[04.2001 - 08.2005] UZZ40 |
85291-24110 |
US $43.68 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.28 |
||
