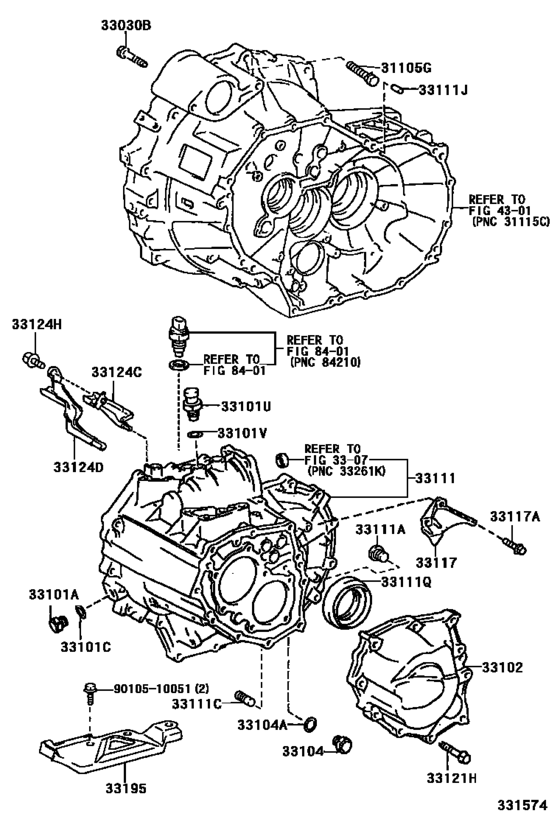

Clutch Housing & Transmission Case (Mtm) ([07.2001 - ] E351 (0107- )ACV20..MTM) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CP
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
90080-10133
Bolt(For Transaxle Case & Engine Setting)
[08.1999 - 07.2002] ACV20,MCV20..MTM *12-1.25PX74.5-25,(L) |
90080-10133 |
— | ||
|
31105G
|
31105G
90080-11417 Bolt(For Transaxle Case & Engine Setting)[07.2001 - 12.2002] ACV20..MTM *12-1.25PX60-30,(L) |
90080-11417 |
US $2.48 |
||
|
31105G
|
31105G
90105-12147 Bolt(For Transaxle Case & Engine Setting)[08.1999 - 07.2002] ACV20,MCV20..MTM *12-1.25PX74.5-25,(J) |
90105-12147 |
US $4.08 |
||
|
31105G
|
31105G
90119-12252 Bolt(For Transaxle Case & Engine Setting)[07.2001 - 12.2002] ACV20..MTM *12-1.25PX60-30,(J) |
90119-12252 |
US $2.48 |
||
|
31105G
|
31105G
91512-61060 Bolt(For Transaxle Case & Engine Setting)[07.2001 - 12.2002] ACV20..MTM *10-1.25PX60-30 |
91512-61060 |
US $2.20 |
||
|
31105G
|
31105G
91512-61065 Bolt(For Transaxle & Engine Setting)[07.2001 - 12.2002] ACV20..MTM *10-1.25PX65-30 |
91512-61065 |
US $2.04 |
||
|
33030B
|
33030B
90105-08126 Bolt(For Transaxle Case & Transmission Case Setting)[06.1998 - 07.2002] ACV20,MCV20..MTM *8-1.25PX45-27.5 |
90105-08126 |
US $1.93 |
||
|
33101A
|
33101A
90341-18033 Plug(For Manual Transmission Filler)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90341-18033 |
from US $2.34 |
||
|
33101C
|
33101C
90430-18008 Gasket[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90430-18008 |
from US $0.82 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90430-T0021 |
— | ||
|
33101U
|
33101U
90930-03148 Plug, Breather(For Manual Transmission)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90930-03148 |
US $21.49 |
||
|
33101V
|
33101V
90430-18008 Gasket[06.1998 - 07.2002] ACV20,MCV20..MTM |
90430-18008 |
from US $0.82 |
||
| replacement | |||||
|
33101V
|
33101V
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[06.1998 - 07.2002] ACV20,MCV20..MTM |
90430-T0021 |
— | ||
|
33102
|
33102
33102-12041 Cover Sub-Assy, Manual Transmission Case[07.2001 - 12.2002] ACV20..MTM |
33102-12041 |
US $66.54 |
||
| replacement | |||||
|
33102
|
33102
33102-12043 Cover Sub-Assy, Manual Transmission CaseMANUAL TRANSMISSION CASE [07.2001 - 12.2002] ACV20..MTM |
33102-12043 |
US $55.47 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90341-18006 |
from US $2.20 |
||
|
33104A
|
33104A
90430-18008 Gasket[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90430-18008 |
from US $0.82 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90430-T0021 |
— | ||
|
33111
|
33111
33101-28041 Case, Manual Transmission[07.2001 - 12.2002] ACV20..MTM |
33101-28041 |
US $550.37 |
||
| replacements | |||||
|
33111
|
33111
33250-12183 Shaft Assy, Shift & Select Lever[07.2001 - 12.2002] ACV20..MTM |
33250-12183 |
US $240.24 |
||
|
33111
|
33111
33101-20090 Case, Manual Transmission[07.2001 - 12.2002] ACV20..MTM |
33101-20090 |
US $550.37 |
||
|
33111A
|
33111A
90341-12004 Plug, Oil Pan(For Oil Cooler)[07.2001 - 12.2002] ACV20..MTM |
90341-12004 |
US $1.93 |
||
|
33111C
|
33111C
90340-10005 Plug(For Transmission Case)[07.2001 - 12.2002] ACV20..MTM |
90340-10005 |
US $3.06 |
||
|
33111J
|
33111J
90250-08054 Pin, Straight[07.2001 - 12.2002] ACV20..MTM L=23,OD=8 |
90250-08054 |
from US $0.91 |
||
|
33111Q
|
33111Q
90311-50024
Oil Seal, Front Drive Shaft, Lh
[07.2001 - 12.2002] ACV20..MTM |
90311-50024 |
— | ||
| replacement | |||||
|
33111Q
|
33111Q
90311-50047 Seal, Oil(For Transmission Case)[07.2001 - 12.2002] ACV20..MTM |
90311-50047 |
from US $7.16 |
||
|
33117
|
33117
33117-20020 Protector, Manual Transmission Case[06.1998 - 07.2002] ACV20,MCV20..MTM |
33117-20020 |
US $21.32 |
||
|
33117A
|
33117A
90080-10083
Bolt(For Automatic Transmission Case Protector)
[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM (L) |
90080-10083 |
— | ||
|
33117A
|
33117A
90105-08040
Bolt(For Plate Bolt Lock)
[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM (J) |
90105-08040 |
— | ||
| replacement | |||||
|
33117A
|
33117A
91641-H0820 Bolt[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM (J) |
91641-H0820 |
from US $0.76 |
||
|
33121H
|
33121H
90119-08630 Bolt, W/washer(For Transmission Case Cover)[07.2001 - 12.2002] ACV20..MTM |
90119-08630 |
US $1.24 |
||
|
33124C
|
33124C
33124-28050 Pipe, Oil Receiver, No.1(Mtm)[07.2001 - 12.2002] ACV20..MTM |
33124-28050 |
US $10.48 |
||
|
33124D
|
33124D
33124-28060 Pipe, Oil Receiver, No.2(Mtm)[07.2001 - 12.2002] ACV20..MTM |
33124-28060 |
US $10.63 |
||
|
33124H
|
33124H
90119-08648 Bolt(For Oil Receiver Pipe)[07.2001 - 12.2002] ACV20..MTM |
90119-08648 |
US $1.89 |
||
| replacement | |||||
|
33124H
|
33124H
90119-08830 Bolt(For Oil Receiver Pipe)[07.2001 - 12.2002] ACV20..MTM |
90119-08830 |
US $1.24 |
||
|
33195
|
33195
33195-33020 Hanger, Transmission Case, No.1TRANSMISSION CASE, NO.1 [06.1998 - 07.2002] ACV20,MCV20..MTM |
33195-33020 |
US $26.64 |
||
|
9010510051
|
9010510051
90105-10051
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
|
90105-10051 |
— | ||
| replacement | |||||
|
9010510051
|
9010510051
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $1.65 |
||
