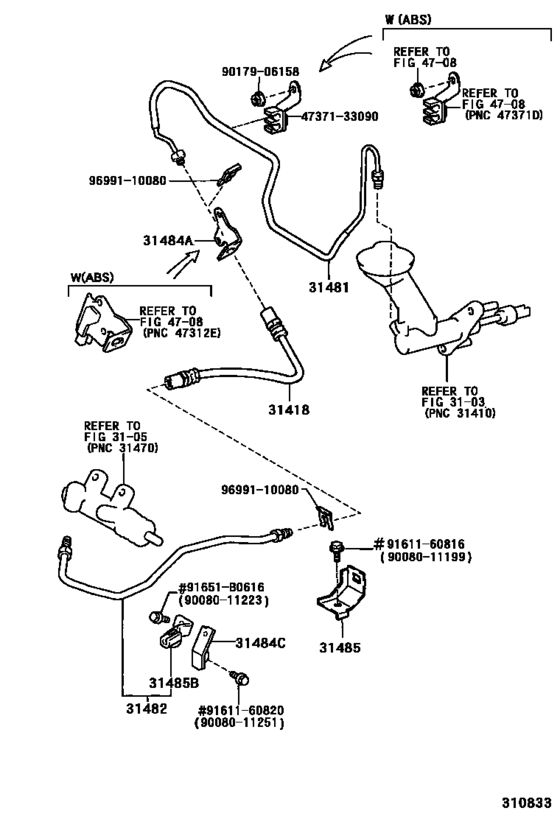

Clutch Pedal & Flexible Hose ([07.2001 - ] (0107- )ACV20..MTM) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CP
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31418
|
31418
90931-01118
Hose, Clutch
[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90931-01118 |
— | ||
|
31481
|
31481
31481-06040
Tube, Clutch Master Cylinder To Flexible Hose
[01.1999 - 07.2002] ACV20,MCV20,SXV20..MTM |
31481-06040 |
— | ||
|
31482
|
31482
31482-06050
Tube, Clutch Release Cylinder To Flexible Hose
[07.2001 - 12.2002] ACV20..MTM |
31482-06050 |
— | ||
|
31484A
|
31484A
31484-33010 Bracket, Flexible Hose, No.1(For Clutch)FLEXIBLE HOSE, NO.1(FOR CLUTCH) [12.1998 - 12.2002] ACV20,SXV20..MTM |
31484-33010 |
US $7.86 |
||
|
31484C
|
31484C
31484-20320 Bracket, Flexible Hose(For Clutch)[07.2001 - 12.2002] ACV20..MTM |
31484-20320 |
US $5.42 |
||
|
31485
|
31485
31484-33040 Bracket, Flexible Hose, No.2(For Clutch)FLEXIBLE HOSE, NO.2(FOR CLUTCH) [07.2001 - 07.2002] ACV20,MCV20..MTM |
31484-33040 |
US $7.86 |
||
|
31485B
|
31485B
47386-33040 Bracket, Tube ClampTUBE CLAMP [07.2001 - 12.2002] ACV20..MTM |
47386-33040 |
US $5.10 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.82 |
||
|
4737133090
|
4737133090
47371-33090 Clamp, Brake Tube, No.6 |
47371-33090 |
US $8.15 |
||
|
9008011199
|
9008011199
90080-11199 Bolt (For Transmission Control Cable Bracket) |
90080-11199 |
US $0.69 |
||
|
9008011223
|
9008011223
90080-11223 New Genuine Part |
90080-11223 |
US $1.16 |
||
|
9008011251
|
9008011251
90080-11251
Bolt (For Transfer Case Lower Protector)
|
90080-11251 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.16 |
||
