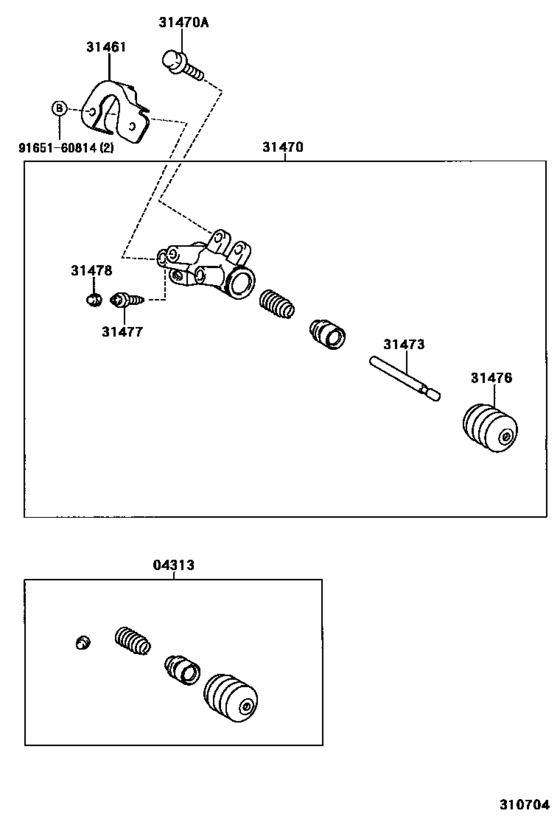

Clutch Release Cylinder ([07.2001 - ] (0107- )ACV20..MTM) Diagram Toyota SOLARA

Year
2001 - 2002
Sales region
U.S.A.
Frame
ACV20
body
CP
ENGINE
2AZFE
TRANSMISSION
MTM
DESTINATION
USA
From
07.2001
To
12.2002
Vehicle Model
SOLARA

Difficulties in parts search?

Parts list
Clutch Release Cylinder

Difficulties in parts search?

Clutch Release Cylinder
Description OEM Part # Price
04313
04313

04313-17010

Cylinder Kit, Clutch Release

[04.1999 - 07.2002] ACV20,MCV20,SXV20..MTM

04313-17010

from US $13.98

31461
31461

31461-42010

Insulator, Release Cylinder Heat

[07.2001 - 12.2002] ACV20..MTM

31461-42010

US $13.40

replacement
31461
31461
31461-42011
Insulator, Release Cylinder Heat

[07.2001 - 12.2002] ACV20..MTM

31461-42011

31470
31470

31470-42030

Cylinder Assy, Clutch Release

[07.2001 - 12.2002] ACV20..MTM

31470-42030

US $99.01

replacement
31470
31470

31470-42031

Cylinder Assy, Clutch Release

CLUTCH RELEASE

[07.2001 - 12.2002] ACV20..MTM

31470-42031

from US $62.43

31470A
31470A

91611-60822

Bolt

[06.1998 - 07.2002] ACV20,MCV20..MTM *8-1.25PX22-17.1

91611-60822

from US $1.16

31473
31473

31473-22010

Rod, Clutch Release Cylinder Push, No.1

[09.2002 - 12.2002] ACV20..MTM

31473-22010

US $10.13

31473
31473

31473-32010

Rod, Clutch Release Cylinder Push, No.1

[07.2001 - 09.2002] ACV20..MTM

31473-32010

US $6.29

31476
31476

31476-22010

Boot, Clutch Release Cylinder

[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM

31476-22010

from US $3.99

31477
31477

47547-20010

Plug, Bleeder(For Release Cylinder)

[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM

47547-20010

from US $3.58

31478
31478

31478-30010

Bleeder Plug Cap

[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM

31478-30010

from US $1.48

9165160814
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)

91651-60814

replacement
9165160814
9165160814

91651-B0814

Bolt with washer

91651-B0814

from US $0.84
