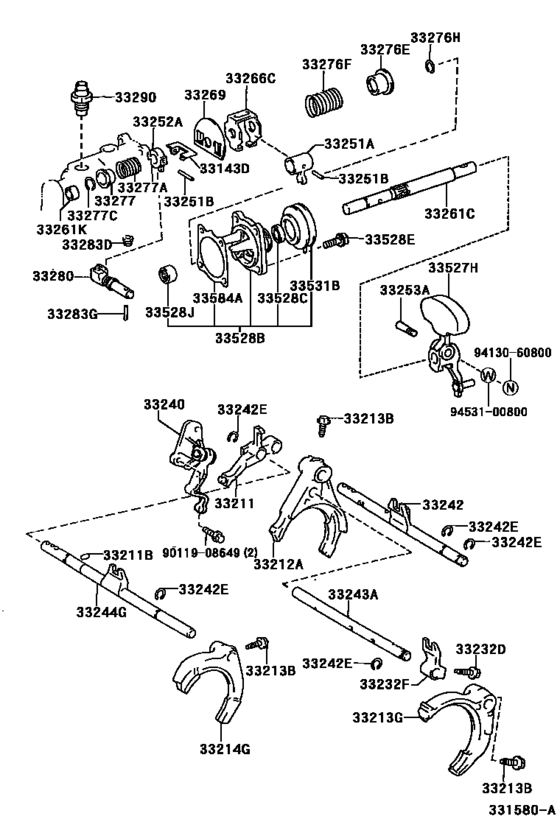

Gear Shift Fork & Lever Shaft (Mtm) ([07.2001 - ] E351 (0107- )ACV20..MTM) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CP
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33143D
|
33143D
33143-12020 Baffle, Transmission Oil[06.2001 - 07.2002] ACV20,MCV20..MTM |
33143-12020 |
US $2.77 |
||
|
33211
|
33211
33211-20020 Fork, Reverse Shift[06.1998 - 07.2002] ACV20,MCV20..MTM |
33211-20020 |
US $31.16 |
||
|
33211B
|
33211B
90361-08005 Roller(For Reverse Shift Fork)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90361-08005 |
US $3.32 |
||
|
33212A
|
33212A
33212-12030
Fork, Gear Shift, No.1
[07.2001 - 12.2002] ACV20..MTM |
33212-12030 |
— | ||
|
33213B
|
33213B
90105-07002 Bolt(For Shift Fork Set)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90105-07002 |
US $1.61 |
||
|
33213G
|
33213G
33220-28020
Fork, Gear Shift, No.2
[07.2001 - 12.2002] ACV20..MTM |
33220-28020 |
— | ||
|
33214G
|
33214G
33214-12020 Fork, Gear Shift, No.3[07.2001 - 12.2002] ACV20..MTM |
33214-12020 |
from US $48.05 |
||
|
33232D
|
33232D
90105-07002 Bolt(For Shift Fork Set)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90105-07002 |
US $1.61 |
||
|
33232F
|
33232F
33232-12030
Head, Gear Shift, No.1
[07.2001 - 12.2002] ACV20..MTM |
33232-12030 |
— | ||
|
33240
|
33240
33240-28010 Bracket Assy, Reverse Shift Arm[07.2001 - 12.2002] ACV20..MTM |
33240-28010 |
US $64.50 |
||
|
33242
|
33242
33242-28030 Shaft, Gear Shift Fork, No.1[07.2001 - 12.2002] ACV20..MTM |
33242-28030 |
US $57.22 |
||
|
33242E
|
33242E
90520-13002 Ring, Shaft Snap (For Shift Fork Shaft)[07.2001 - 12.2002] ACV20..MTM |
90520-13002 |
from US $1.43 |
||
|
33243A
|
33243A
33243-28040 Shaft, Gear Shift Fork, No.2[07.2001 - 12.2002] ACV20..MTM |
33243-28040 |
US $39.46 |
||
|
33244G
|
33244G
33244-28030 Shaft, Gear Shift Fork, No.3[07.2001 - 12.2002] ACV20..MTM |
33244-28030 |
US $57.22 |
||
|
33251A
|
33251A
33251-28040 Lever, Shift, Inner No.1[06.2001 - 07.2002] ACV20,MCV20..MTM |
33251-28040 |
US $67.70 |
||
|
33251B
|
33251B
90254-05007 Pin, Slotted Spring (For Shift Inner Lever)[06.2001 - 07.2002] ACV20,MCV20,SXV20..MTM L=47.0 |
90254-05007 |
US $3.68 |
||
|
33251B
|
33251B
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[06.2001 - 07.2002] ACV20,MCV20..MTM L=25.5 |
90254-05016 |
from US $1.90 |
||
|
33252A
|
33252A
33252-20020
Lever, Shift, Inner No.2
[06.1998 - 07.2002] ACV20,MCV20..MTM |
33252-20020 |
— | ||
|
33253A
|
33253A
33281-16020 Pin, Lever Lock (For Shift Outer Lever)[07.2001 - 12.2002] ACV20..MTM |
33281-16020 |
from US $1.31 |
||
|
33261C
|
33261C
33261-28040
Shaft, Shift & Select Lever
[07.2001 - 12.2002] ACV20..MTM |
33261-28040 |
— | ||
|
33261K
|
33261K
90384-15002 Bush, Bimetal Formed(For Outer Select Lever)[11.1999 - 07.2002] ACV20,MCV20..MTM |
90384-15002 |
US $1.97 |
||
|
33266C
|
33266C
33266-28010
Plate, Shift Inter Lock
[06.2001 - 07.2002] ACV20,MCV20..MTM |
33266-28010 |
— | ||
| replacement | |||||
|
33266C
|
33266C
33266-28011
Plate, Shift Inter Lock
[06.2001 - 07.2002] ACV20,MCV20..MTM |
33266-28011 |
— | ||
|
33269
|
33269
33269-12010 Cover, Shift Inter Lock Plate[06.2001 - 07.2002] ACV20,MCV20..MTM |
33269-12010 |
US $2.33 |
||
|
33276E
|
33276E
33276-20020 Seat, Select Spring, No.1[06.1998 - 07.2002] ACV20,MCV20..MTM |
33276-20020 |
US $5.42 |
||
|
33276F
|
33276F
90501-16134
Spring, Compression, No.1 (For Select Return)
[06.2001 - 07.2002] ACV20,MCV20..MTM |
90501-16134 |
— | ||
|
33276H
|
33276H
90520-15003 Ring, Shaft Snap (For Select Spring No.1 Seat)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90520-15003 |
US $0.79 |
||
|
33277
|
33277
33277-17010 Seat, Select Spring, No.2[06.1998 - 07.2002] ACV20,MCV20..MTM |
33277-17010 |
US $9.43 |
||
|
33277A
|
33277A
90501-17028 Spring, Compression, No.2 (For Select Return)[06.2001 - 07.2002] ACV20,MCV20..MTM |
90501-17028 |
US $2.62 |
||
|
33277C
|
33277C
90520-12003 Ring(For Reverse Shift Head)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90520-12003 |
from US $0.89 |
||
|
33280
|
33280
33280-20041
Pin Assy, Reverse Restrict
[06.1998 - 07.2002] ACV20,MCV20..MTM |
33280-20041 |
— | ||
|
33283D
|
33283D
90341-10065 Plug, Straight, No.1[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90341-10065 |
US $3.94 |
||
|
33283G
|
33283G
90254-05003 Pin, Slotted Spring(For Shift Fork Set)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90254-05003 |
US $0.70 |
||
|
33290
|
33290
33290-28010 Ball Assy, Lock, No.1[07.2001 - 08.2001] ACV20..MTM |
33290-28010 |
US $26.35 |
||
| replacement | |||||
|
33290
|
33290
33290-33020 Ball Assy, Lock, No.1[07.2001 - 08.2001] ACV20..MTM |
33290-33020 |
US $21.49 |
||
|
33290
|
33290
33290-33020 Ball Assy, Lock, No.1[08.2001 - 07.2002] ACV20,MCV20..MTM |
33290-33020 |
US $21.49 |
||
|
33527H
|
33527H
33527-28130 Lever, Control Shift[07.2001 - 12.2002] ACV20..MTM |
33527-28130 |
US $49.21 |
||
|
33528B
|
33528B
33506-28210 Cover, Control Shaft[12.1999 - 07.2002] ACV20,MCV20..MTM |
33506-28210 |
US $56.64 |
||
|
33528C
|
33528C
90311-18013 Seal, Oil (For Control Shaft Cover)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90311-18013 |
from US $2.32 |
||
|
33528E
|
33528E
90119-10288 Bolt (For Control Shaft Cover)[06.1998 - 07.2002] ACV20,MCV20..MTM *10-1.25PX25-19.8 |
90119-10288 |
US $0.70 |
||
|
33528J
|
33528J
90384-18017 Bush, Bimetal Formed (For Shift & Select Lever Shaft)[12.1999 - 07.2002] ACV20,MCV20,SXV20..MTM |
90384-18017 |
US $3.32 |
||
|
33531B
|
33531B
33531-12020 Boot, Dust (For Shift & Select Lever Shaft)[06.1998 - 07.2002] ACV20,MCV20..MTM |
33531-12020 |
from US $9.41 |
||
|
33584A
|
33584A
33584-20020
Gasket, Control Shift Lever Retainer
[06.1998 - 07.2002] ACV20,MCV20..MTM |
33584-20020 |
— | ||
|
9011908649
|
9011908649
90119-08649 Bolt(For Intake Manifold To Exhaust Manifold) |
90119-08649 |
US $1.89 |
||
| replacement | |||||
|
9011908649
|
9011908649
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.67 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.84 |
||
