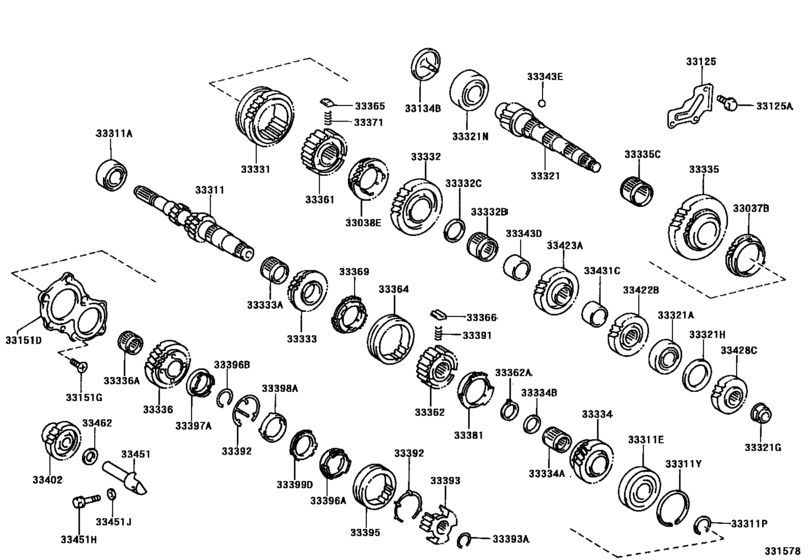

Transmission Gear (Mtm) ([07.2001 - ] E351 (0107- )ACV20..MTM) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CP
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33037B
|
33037B
33037-28010 Ring Set, Synchronizer, No.1[07.2001 - 12.2002] ACV20..MTM |
33037-28010 |
US $92.60 |
||
|
33038E
|
33038E
33038-28010 Ring Set, Synchronizer, No.2[07.2001 - 12.2002] ACV20..MTM |
33038-28010 |
US $92.60 |
||
|
33125
|
33125
33125-20010 Receiver, Manual Transaxle Case[06.1998 - 07.2002] ACV20,MCV20..MTM |
33125-20010 |
US $4.02 |
||
|
33125A
|
33125A
91611-B0616 Bolt(For Transaxle Case Receiver)[06.1998 - 07.2002] ACV20,MCV20..MTM |
91611-B0616 |
from US $0.84 |
||
|
33134B
|
33134B
33134-20010 Cover, Output Shaft(Mtm)[06.1998 - 07.2002] ACV20,MCV20..MTM |
33134-20010 |
US $6.33 |
||
|
33151D
|
33151D
33151-28020 Retainer, Bearing, Rear(Mtm)[07.2001 - 12.2002] ACV20..MTM |
33151-28020 |
US $44.12 |
||
|
33151G
|
33151G
90149-80029 Screw(For Rear Bearing Retainer)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90149-80029 |
US $2.15 |
||
|
33311
|
33311
33311-12152 Shaft, Input[07.2001 - 12.2002] ACV20..MTM |
33311-12152 |
US $412.05 |
||
| replacements | |||||
|
33311
|
33311
33311-20H10 Shaft, Input[07.2001 - 12.2002] ACV20..MTM |
33311-20H10 |
US $412.05 |
||
|
33311
|
33311
33311-12H20 Shaft, Input[07.2001 - 12.2002] ACV20..MTM |
33311-12H20 |
US $474.66 |
||
|
33311A
|
33311A
90365-30023 Bearing (For Input Shaft Front)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90365-30023 |
from US $56.24 |
||
|
33311E
|
33311E
90363-33007 Bearing, Radial Ball (For Input Shaft Rear)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90363-33007 |
from US $28.35 |
||
|
33311P
|
33311P
90520-30008 Ring, Shaft Snap (For Input Shaft Rear Bearing)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.35-2.40,MARK 1 |
90520-30008 |
US $1.49 |
||
|
33311P
|
33311P
90520-30009 Ring, Shaft Snap (For Input Shaft Rear Bearing)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.40-2.45,MARK 2 |
90520-30009 |
US $1.49 |
||
|
33311P
|
33311P
90520-30010 Ring, Shaft Snap (For Input Shaft Rear Bearing)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.45-2.50,MARK 3 |
90520-30010 |
US $1.49 |
||
|
33311P
|
33311P
90520-30011 Ring, Shaft Snap (For Input Shaft Rear Bearing)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.50-2.55,MARK 4 |
90520-30011 |
US $1.49 |
||
|
33311P
|
33311P
90520-30012 Ring, Shaft Snap (For Input Shaft Rear Bearing)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.55-2.60,MARK 5 |
90520-30012 |
US $1.49 |
||
|
33311P
|
33311P
90520-30013 Ring, Shaft Snap (For Input Shaft Rear Bearing)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.60-2.65,MARK 6 |
90520-30013 |
US $1.49 |
||
|
33311P
|
33311P
90520-30021 Ring, Shaft Snap (For Input Shaft Rear Bearing)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.65-2.69,MARK 7 |
90520-30021 |
US $1.49 |
||
|
33311P
|
33311P
90520-30022 Ring, Shaft Snap (For Input Shaft Rear Bearing)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.70-2.74,MARK 8 |
90520-30022 |
US $1.49 |
||
|
33311Y
|
33311Y
90520-76003 Ring, Shaft Snap (For Input Shaft Rear Bearing)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90520-76003 |
US $3.32 |
||
|
33321
|
33321
33302-12071 Shaft, Output[07.2001 - 12.2002] ACV20..MTM |
33302-12071 |
US $224.22 |
||
| replacement | |||||
|
33321
|
33321
33302-20030
Shaft, Output
[07.2001 - 12.2002] ACV20..MTM |
33302-20030 |
— | ||
|
33321A
|
33321A
90366-28002 Bearing (For Output Shaft Rear)[07.2001 - 12.2002] ACV20..MTM |
90366-28002 |
from US $36.62 |
||
|
33321G
|
33321G
90179-20012 Nut (For Manual Transmission Output Shaft Rear Set)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90179-20012 |
from US $4.01 |
||
|
33321H
|
33321H
90564-59001 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=1.30,MARK 0 |
90564-59001 |
US $1.49 |
||
|
33321H
|
33321H
90564-59002 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=1.35,MARK 1 |
90564-59002 |
US $1.46 |
||
|
33321H
|
33321H
90564-59003 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=1.40,MARK 2 |
90564-59003 |
US $3.32 |
||
|
33321H
|
33321H
90564-59004 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=1.45,MARK 3 |
90564-59004 |
US $3.32 |
||
|
33321H
|
33321H
90564-59005 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=1.50,MARK 4 |
90564-59005 |
US $3.32 |
||
|
33321H
|
33321H
90564-59006 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=1.55,MARK 5 |
90564-59006 |
US $3.32 |
||
|
33321H
|
33321H
90564-59007 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=1.60,MARK 6 |
90564-59007 |
US $3.32 |
||
|
33321H
|
33321H
90564-59008 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=1.65,MARK 7 |
90564-59008 |
US $3.32 |
||
|
33321H
|
33321H
90564-59009 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=1.70,MARK 8 |
90564-59009 |
US $2.04 |
||
|
33321H
|
33321H
90564-59010 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=1.75,MARK 9 |
90564-59010 |
US $3.32 |
||
|
33321H
|
33321H
90564-59011 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=1.80,MARK A |
90564-59011 |
US $3.32 |
||
|
33321H
|
33321H
90564-59012 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=1.85,MARK B |
90564-59012 |
US $3.32 |
||
|
33321H
|
33321H
90564-59013 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=1.90,MARK C |
90564-59013 |
US $3.32 |
||
|
33321H
|
33321H
90564-59014 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=1.95,MARK D |
90564-59014 |
US $3.32 |
||
|
33321H
|
33321H
90564-59015 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=2.00,MARK E |
90564-59015 |
US $2.04 |
||
|
33321H
|
33321H
90564-59016 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=2.05,MARK F |
90564-59016 |
US $2.04 |
||
|
33321H
|
33321H
90564-59017 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=2.10,MARK G |
90564-59017 |
US $3.32 |
||
|
33321H
|
33321H
90564-59018 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=2.15,MARK H |
90564-59018 |
US $3.32 |
||
|
33321H
|
33321H
90564-59019 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=2.20,MARK J |
90564-59019 |
US $3.32 |
||
|
33321H
|
33321H
90564-59020 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=2.25,MARK K |
90564-59020 |
US $3.32 |
||
|
33321H
|
33321H
90564-59021 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=2.30,MARK L |
90564-59021 |
US $3.32 |
||
|
33321H
|
33321H
90564-59022 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=2.35,MARK M |
90564-59022 |
US $3.32 |
||
|
33321H
|
33321H
90564-59023 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=2.40,MARK N |
90564-59023 |
US $2.04 |
||
|
33321H
|
33321H
90564-59024 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=2.45,MARK P |
90564-59024 |
US $2.04 |
||
|
33321H
|
33321H
90564-59025 Shim (For Output Shaft Rear Bearing)[07.2001 - 12.2002] ACV20..MTM T=2.50,MARK Q |
90564-59025 |
US $2.04 |
||
|
33321N
|
33321N
90366-32025 Bearing (For Output Shaft Front)[07.2001 - 12.2002] ACV20..MTM |
90366-32025 |
from US $44.86 |
||
|
33331
|
33331
33331-28020
Gear, Reverse
[07.2001 - 12.2002] ACV20..MTM |
33331-28020 |
— | ||
| replacement | |||||
|
33331
|
33331
33331-28021
Gear, Reverse
[07.2001 - 12.2002] ACV20..MTM |
33331-28021 |
— | ||
|
33332
|
33332
33332-28020
Gear, 2Nd
[07.2001 - 12.2002] ACV20..MTM |
33332-28020 |
— | ||
| replacements | |||||
|
33332
|
33332
33332-42050 Gear, 2nd[07.2001 - 12.2002] ACV20..MTM |
33332-42050 |
US $181.71 |
||
|
33332
|
33332
33343-12020 Bush, 2Nd Gear[07.2001 - 12.2002] ACV20..MTM |
33343-12020 |
US $15.03 |
||
|
33332B
|
33332B
90364-44001 Bearing, Needle Roller (For 2Nd Gear)[07.2001 - 12.2002] ACV20..MTM |
90364-44001 |
US $24.11 |
||
|
33332C
|
33332C
90560-44001 Spacer (For 2Nd Gear Bearing)[07.2001 - 12.2002] ACV20..MTM |
90560-44001 |
US $3.64 |
||
|
33333
|
33333
33034-28030
Gear, 3Rd
[07.2001 - 08.2002] ACV20..MTM |
33034-28030 |
— | ||
| replacement | |||||
|
33333
|
33333
33034-42040
Gear, 3Rd
[07.2001 - 08.2002] ACV20..MTM |
33034-42040 |
— | ||
|
33333
|
33333
33034-28031 Gear, 3Rd[08.2002 - 12.2002] ACV20..MTM |
33034-28031 |
US $157.25 |
||
| replacement | |||||
|
33333
|
33333
33034-42040
Gear, 3Rd
[08.2002 - 12.2002] ACV20..MTM |
33034-42040 |
— | ||
|
33333A
|
33333A
90364-36011
Bearing, Needle Roller (For 3Rd Gear)
[07.2001 - 12.2002] ACV20..MTM |
90364-36011 |
— | ||
| replacement | |||||
|
33333A
|
33333A
90364-36024 Bearing, Needle Roller (For 3Rd Gear)[07.2001 - 12.2002] ACV20..MTM |
90364-36024 |
US $27.96 |
||
|
33334
|
33334
33035-28010 Gear, 4Th[07.2001 - 12.2002] ACV20..MTM |
33035-28010 |
US $182 |
||
| replacement | |||||
|
33334
|
33334
33035-42021 Gear, 4Th[07.2001 - 12.2002] ACV20..MTM |
33035-42021 |
US $146.76 |
||
|
33334A
|
33334A
90364-36014
Bearing, Needle Roller (For 4Th Gear)
[07.2001 - 12.2002] ACV20..MTM |
90364-36014 |
— | ||
| replacement | |||||
|
33334A
|
33334A
90364-36027 Bearing, Needle Roller (For 4Th Gear)[07.2001 - 12.2002] ACV20..MTM |
90364-36027 |
US $24.88 |
||
|
33334B
|
33334B
90560-36002 Spacer (For 4Th Gear Bearing)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90560-36002 |
US $1.14 |
||
|
33335
|
33335
33335-28040 Gear, 1St[07.2001 - 12.2002] ACV20..MTM |
33335-28040 |
US $196.56 |
||
| replacement | |||||
|
33335
|
33335
33335-20190 Gear, 1St1ST [07.2001 - 12.2002] ACV20..MTM |
33335-20190 |
US $133.95 |
||
|
33335C
|
33335C
90364-45007 Bearing, Needle Roller(For 1St Gear)[07.2001 - 12.2002] ACV20..MTM |
90364-45007 |
US $12.41 |
||
|
33336
|
33336
33336-20081
Gear, 5Th
[07.2001 - 12.2002] ACV20..MTM |
33336-20081 |
— | ||
| replacement | |||||
|
33336
|
33336
33336-42020 Gear, 5Th5TH [07.2001 - 12.2002] ACV20..MTM |
33336-42020 |
from US $133.27 |
||
|
33336A
|
33336A
90364-28023 Bearing, Needle Roller (For 5Th Gear)[07.2001 - 12.2002] ACV20..MTM |
90364-28023 |
from US $19.49 |
||
|
33343D
|
33343D
33343-12020 Bush, 2Nd Gear[07.2001 - 12.2002] ACV20..MTM |
33343-12020 |
US $15.03 |
||
|
33343E
|
33343E
90360-05012 Ball, Reverse Shift Restrict[06.1998 - 12.2002] ACV20,SXV20..MTM |
90360-05012 |
from US $0.84 |
||
|
33361
|
33361
33361-28010
Hub, Transmission Clutch, No.1
[07.2001 - 12.2002] ACV20..MTM |
33361-28010 |
— | ||
| replacement | |||||
|
33361
|
33361
33361-42010 Hub, Transmission Clutch, No.1[07.2001 - 12.2002] ACV20..MTM |
33361-42010 |
US $101.34 |
||
|
33362
|
33362
33362-28021 Hub, Transmission Clutch, No.2[01.2001 - 07.2002] ACV20,MCV20..MTM |
33362-28021 |
US $84.45 |
||
| replacement | |||||
|
33362
|
33362
33362-42012 Hub, Transmission Clutch, No.2[01.2001 - 07.2002] ACV20,MCV20..MTM |
33362-42012 |
US $89.11 |
||
|
33362A
|
33362A
90520-34003 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.30-2.35,MARK H |
90520-34003 |
US $1.05 |
||
|
33362A
|
33362A
90520-34004 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.35-2.40,MARK J |
90520-34004 |
US $1.05 |
||
|
33362A
|
33362A
90520-34005 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.40-2.45,MARK K |
90520-34005 |
US $1.46 |
||
|
33362A
|
33362A
90520-34006 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.45-2.50,MARK L |
90520-34006 |
US $1.05 |
||
|
33362A
|
33362A
90520-34007 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.50-2.55,MARK M |
90520-34007 |
US $1.05 |
||
|
33362A
|
33362A
90520-34008 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.55-2.60,MARK N |
90520-34008 |
US $1.05 |
||
|
33362A
|
33362A
90520-34009 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.60-2.65,MARK P |
90520-34009 |
US $1.05 |
||
|
33364
|
33364
33364-28011
Sleeve, Transmission Hub, No.2
[01.2001 - 07.2002] ACV20,MCV20..MTM |
33364-28011 |
— | ||
|
33365
|
33365
33365-12040 Key, Synchromesh Shifting, No.1[07.2001 - 12.2002] ACV20..MTM |
33365-12040 |
US $3.32 |
||
|
33366
|
33366
33366-12031
Key, Synchromesh Shifting, No.2
[06.1998 - 07.2002] ACV20,MCV20..MTM |
33366-12031 |
— | ||
|
33369
|
33369
33369-28010
Ring, Synchronizer, No.3
[12.1999 - 07.2002] ACV20,MCV20..MTM |
33369-28010 |
— | ||
| replacement | |||||
|
33369
|
33369
33369-28011 Ring, Synchronizer, No.3[12.1999 - 07.2002] ACV20,MCV20..MTM |
33369-28011 |
from US $26.79 |
||
|
33371
|
33371
90501-08112 Spring, Synchromesh Shifting Key, No.1[07.2001 - 12.2002] ACV20..MTM |
90501-08112 |
US $1.40 |
||
|
33381
|
33381
33381-28010
Ring, 2Nd Synchronizer Outer
[12.1999 - 07.2002] ACV20,MCV20..MTM |
33381-28010 |
— | ||
| replacement | |||||
|
33381
|
33381
33381-28011 Ring, 2Nd Synchronizer Outer2ND SYNCHRONIZER OUTER [12.1999 - 07.2002] ACV20,MCV20..MTM |
33381-28011 |
from US $30.10 |
||
|
33391
|
33391
90501-08131 Spring, Synchromesh Shifting Key, No.2[06.1998 - 07.2002] ACV20,MCV20..MTM |
90501-08131 |
US $2.87 |
||
|
33392
|
33392
33392-12010 Spring, Synchromesh Shifting Key, No.3[06.1998 - 07.2002] ACV20,MCV20..MTM OUTER RING SIDE |
33392-12010 |
from US $2.96 |
||
|
33392
|
33392
33392-12020 Spring, Synchromesh Shifting Key, No.3[06.1998 - 07.2002] ACV20,MCV20..MTM PULL RING SIDE |
33392-12020 |
from US $1.10 |
||
|
33393
|
33393
33393-12022
Hub, Transmission Clutch, No.3
[07.1999 - 07.2002] ACV20,MCV20..MTM |
33393-12022 |
— | ||
| replacement | |||||
|
33393
|
33393
33393-42010 Hub, Transmission Clutch, No.3[07.1999 - 07.2002] ACV20,MCV20..MTM |
33393-42010 |
from US $72.41 |
||
|
33393A
|
33393A
90520-27061 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[06.1998 - 07.2002] ACV20,MCV20..MTM T=1.75-1.80,MARK A |
90520-27061 |
US $1.05 |
||
|
33393A
|
33393A
90520-27062 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[06.1998 - 07.2002] ACV20,MCV20..MTM T=1.80-1.85,MARK B |
90520-27062 |
US $0.96 |
||
|
33393A
|
33393A
90520-27063 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[06.1998 - 07.2002] ACV20,MCV20..MTM T=1.85-1.90,MARK C |
90520-27063 |
US $0.96 |
||
|
33393A
|
33393A
90520-27064 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[06.1998 - 07.2002] ACV20,MCV20..MTM T=1.90-1.95,MARK D |
90520-27064 |
US $0.96 |
||
|
33393A
|
33393A
90520-27065 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[06.1998 - 07.2002] ACV20,MCV20..MTM T=1.95-2.00,MARK E |
90520-27065 |
US $0.96 |
||
|
33393A
|
33393A
90520-27066 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.00-2.05,MARK F |
90520-27066 |
US $0.96 |
||
|
33393A
|
33393A
90520-27067 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.05-2.10,MARK G |
90520-27067 |
from US $0.96 |
||
|
33393A
|
33393A
90520-27068 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.10-2.15,MARK H |
90520-27068 |
US $0.96 |
||
|
33393A
|
33393A
90520-27069 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[06.1998 - 07.2002] ACV20,MCV20..MTM T=2.15-2.20,MARK J |
90520-27069 |
US $0.96 |
||
|
33395
|
33395
33395-12021
Sleeve, Transmission Hub, No.3
[07.1999 - 07.2002] ACV20,MCV20..MTM |
33395-12021 |
— | ||
| replacement | |||||
|
33395
|
33395
33395-42012 Sleeve, Transmission Hub, No.3TRANSMISSION HUB, NO.3 [07.1999 - 07.2002] ACV20,MCV20..MTM |
33395-42012 |
from US $64.77 |
||
|
33396A
|
33396A
33396-28010 Ring, Synchronizer Pull[12.1999 - 07.2002] ACV20,MCV20..MTM |
33396-28010 |
from US $46 |
||
|
33396B
|
33396B
90520-46035 Ring, Snap (For Synchronizer Pull Ring)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90520-46035 |
from US $2.17 |
||
|
33397A
|
33397A
33397-28010 Ring, Synchronizer, Inner No.5[12.1999 - 07.2002] ACV20,MCV20..MTM |
33397-28010 |
from US $43.51 |
||
|
33398A
|
33398A
33398-12010 Ring, Synchronizer, Middle No.5[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
33398-12010 |
from US $35.40 |
||
|
33399D
|
33399D
33399-12011 Ring, Synchronizer, Outer No.5[06.1998 - 07.2002] ACV20,MCV20..MTM |
33399-12011 |
from US $47.37 |
||
|
33402
|
33402
33402-28020 Gear Sub-Assy, Reverse Idler[07.2001 - 12.2002] ACV20..MTM |
33402-28020 |
US $138.03 |
||
|
33422B
|
33422B
33422-12030 Gear, 4Th Driven[07.2001 - 12.2002] ACV20..MTM |
33422-12030 |
US $116.48 |
||
| replacement | |||||
|
33422B
|
33422B
33422-42020 Gear, 4Th Driven4TH DRIVEN [07.2001 - 12.2002] ACV20..MTM |
33422-42020 |
US $75.71 |
||
|
33423A
|
33423A
33423-12030
Gear, 3Rd Driven
[07.2001 - 12.2002] ACV20..MTM |
33423-12030 |
— | ||
| replacement | |||||
|
33423A
|
33423A
33423-42020 Gear, 3Rd Driven[07.2001 - 12.2002] ACV20..MTM |
33423-42020 |
from US $155.79 |
||
|
33428C
|
33428C
33428-20071
Gear, 5Th Driven
[07.2001 - 12.2002] ACV20..MTM |
33428-20071 |
— | ||
| replacement | |||||
|
33428C
|
33428C
33428-42020
Gear, 5Th Driven
[07.2001 - 12.2002] ACV20..MTM |
33428-42020 |
— | ||
|
33431C
|
33431C
33431-20080 Spacer, Output Gear[06.1998 - 07.2002] ACV20,MCV20..MTM |
33431-20080 |
US $20.27 |
||
|
33451
|
33451
33451-12032
Shaft, Reverse Idler Gear
[07.2001 - 12.2002] ACV20..MTM |
33451-12032 |
— | ||
| replacement | |||||
|
33451
|
33451
33451-20070 Shaft, Reverse Idler GearREVERSE IDLER GEAR [07.2001 - 12.2002] ACV20..MTM |
33451-20070 |
US $19.51 |
||
|
33451H
|
33451H
90105-08150 Bolt (For Reverse Idler Gear Shaft)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90105-08150 |
US $0.87 |
||
|
33451J
|
33451J
90430-08010 Gasket (For Reverse Idler Gear Shaft)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90430-08010 |
from US $1.25 |
||
|
33462
|
33462
33462-20050 Washer, Reverse Idler Thrust[06.1998 - 07.2002] ACV20,MCV20..MTM |
33462-20050 |
US $5.07 |
||
