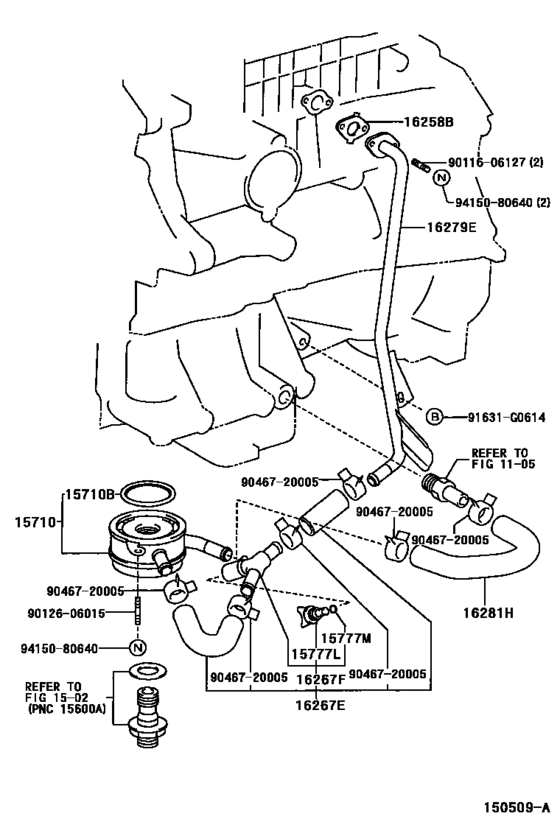

Engine Oil Cooler ([07.2001 - ] (0107- )2AZFE) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CP
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15710
|
15710
15710-28020 Cooler Assy, Oil[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
15710-28020 |
from US $396.80 |
||
|
15710B
|
15710B
90301-52006 Ring, O(For Oil Cooler)[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
90301-52006 |
from US $3.19 |
||
|
15777L
|
15777L
23322-54010 Plug,air(For Oil Cooler Drain Cock)[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
23322-54010 |
from US $4.73 |
||
|
15777M
|
15777M
16492-21050 Ring, O(For Oil Cooler Drain Cock)[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16492-21050 |
from US $2.13 |
||
|
16258B
|
16258B
16258-28020 Gasket(For Water By-Pass Pipe)[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16258-28020 |
US $6.12 |
||
| replacement | |||||
|
16258B
|
16258B
16258-28040 Gasket(For Oil Cooler Pipe Union Bolt)[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16258-28040 |
from US $2.53 |
||
|
16267E
|
16267E
16267-28020 Hose, Oil Cooler[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16267-28020 |
US $14.27 |
||
| replacement | |||||
|
16267E
|
16267E
16267-28080 Hose, Oil CoolerOIL COOLER [07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16267-28080 |
from US $7.62 |
||
|
16267F
|
16267F
90910-09119 Cock Assy, Drain(For Oil Cooler Hose)[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
90910-09119 |
US $23.52 |
||
|
16279E
|
16279E
16279-28010 Pipe, Oil Cooler[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16279-28010 |
US $33.49 |
||
|
16281H
|
16281H
16281-28010 Hose, Oil Cooler[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16281-28010 |
from US $5.09 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.65 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.91 |
||
|
9012606015
|
9012606015
90126-06015 Bolt, Stud(For Oil Pan) |
90126-06015 |
from US $1.20 |
||
|
9046720005
|
9046720005
90467-20005
Clip(For Ventilation Hose No.2)
|
90467-20005 |
— | ||
| replacement | |||||
|
9046720005
|
9046720005
96134-41900 Clip Or Clamp(For Ventilation Hose) |
96134-41900 |
from US $1.58 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.72 |
||
