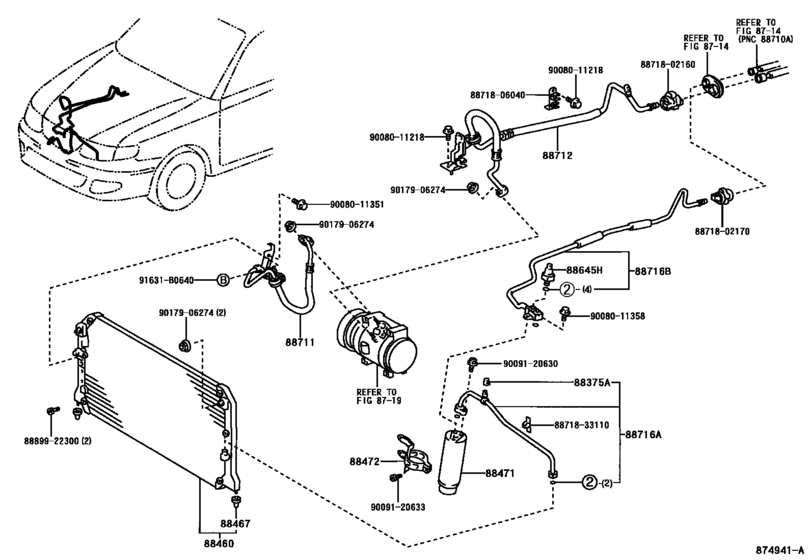

Heating & Air Conditioning - Cooler Piping ([07.2001 - ] (0107- )ACV20) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CP
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88375A
|
88375A
88375-30280 Cap, Service Valve (For Cooler Pipe)[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
88375-30280 |
from US $0.98 |
||
|
88460
|
88460
88460-06050
Condenser Assy, Cooler
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
88460-06050 |
— | ||
|
88467
|
88467
88467-06030
Cushion, Cooler Condenser, No.1
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
88467-06030 |
— | ||
|
88471
|
88471
88471-34010 Receiver & Dryer Assy, Cooler[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
88471-34010 |
from US $46.04 |
||
|
88472
|
88472
88473-06030
Bracket, Receiver Tank, No.1
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
88473-06030 |
— | ||
|
88645H
|
88645H
88645-60030 Switch, Pressure No.1[07.2001 - 12.2002] ACV20 |
88645-60030 |
from US $85.26 |
||
|
88711
|
88711
88703-06100
Hose, Cooler Refrigerant Discharge, No.1
[07.2001 - 12.2002] ACV20 |
88703-06100 |
— | ||
|
88712
|
88712
88704-06130
Hose, Cooler Refrigerant Suction, No.1
[07.2001 - 12.2002] ACV20 |
88704-06130 |
— | ||
|
88716A
|
88716A
88716-06150
Pipe, Cooler Refrigerant Liquid, A
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
88716-06150 |
— | ||
|
88716B
|
88716B
88716-06220
Pipe, Cooler Refrigerant Liquid, B
[07.2001 - 12.2002] ACV20 |
88716-06220 |
— | ||
|
91631B0640
|
91631B0640
91631-B0640 New Genuine Part |
91631-B0640 |
US $1.16 |
||
|
8871802160
|
8871802160
88718-02160 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-02160 |
US $15.87 |
||
|
8871802170
|
8871802170
88718-02170
Clamp(For Cooler Refrigerant Pipe), No.2
|
88718-02170 |
— | ||
|
8871806040
|
8871806040
88718-06040
Pipe, Cooler Refrigerant Suction, No.2
|
88718-06040 |
— | ||
|
8871833110
|
8871833110
88718-33110
Pipe, Cooler Refrigerant Suction, No.2
|
88718-33110 |
— | ||
|
8889922300
|
8889922300
88899-22300
Cover, Evaporator
|
88899-22300 |
— | ||
|
9008011218
|
9008011218
90080-11218
New Genuine Part
|
90080-11218 |
— | ||
|
9008011351
|
9008011351
90080-11351
New Genuine Part
|
90080-11351 |
— | ||
|
9008011358
|
9008011358
90080-11358
New Genuine Part
|
90080-11358 |
— | ||
|
9009120630
|
9009120630
90091-20630
New Genuine Part
|
90091-20630 |
— | ||
|
9009120633
|
9009120633
90091-20633
New Genuine Part
|
90091-20633 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
