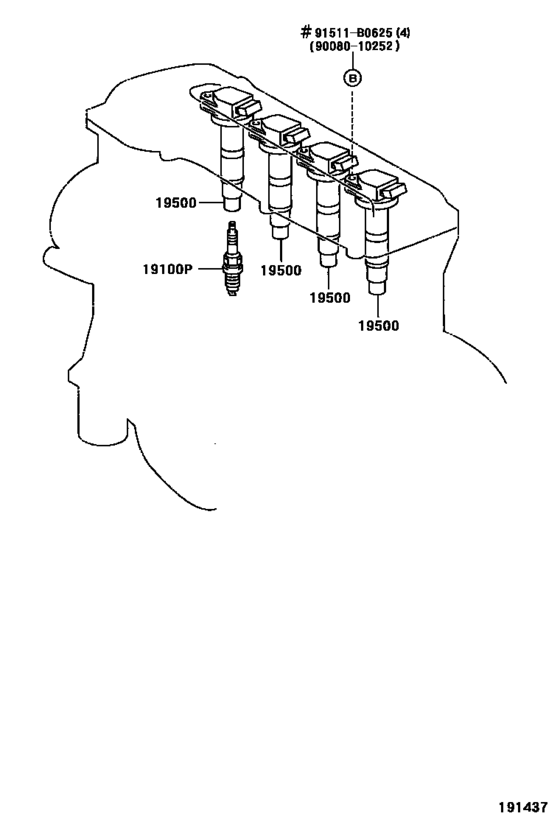

Ignition Coil & Spark Plug ([07.2001 - ] (0107- )2AZFE) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CP
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100P
|
19100P
90080-91180 Plug, Spark[07.2001 - 12.2002] 2AZFE..ACV20 SK20R11,(L) |
90080-91180 |
US $21.44 |
||
|
19100P
|
19100P
90919-01210 Spark Plug (Denso SK20R11)[07.2001 - 05.2002] 2AZFE..ACV20 SK20R11,(J) |
90919-01210 |
from US $16 |
||
|
19100P
|
19100P
90919-01237
Spark Plug (Denso SK20R11)
[05.2002 - 12.2002] 2AZFE..ACV20 SK20R11,(J) |
90919-01237 |
— | ||
| replacement | |||||
|
19100P
|
19100P
90919-01210 Spark Plug (Denso SK20R11)[05.2002 - 12.2002] 2AZFE..ACV20 SK20R11,(J) |
90919-01210 |
from US $16 |
||
|
19500
|
19500
90080-19023
Coil Assy, Ignition
[07.2001 - 12.2002] 2AZFE..ACV20 (L) |
90080-19023 |
— | ||
|
19500
|
19500
90919-02243
Coil Assy, Ignition
[07.2001 - 12.2002] 2AZFE..ACV20 MARK 90919-02243 |
90919-02243 |
— | ||
| replacement | |||||
|
19500
|
19500
90919-02266 Coil Assy, Ignition[07.2001 - 12.2002] 2AZFE..ACV20 MARK 90919-02243 |
90919-02266 |
from US $88.31 |
||
|
19500
|
19500
90919-02244
Coil Assy, Ignition
[07.2001 - 12.2002] 2AZFE..ACV20 MARK 90919-02244,(J) |
90919-02244 |
— | ||
| replacement | |||||
|
19500
|
19500
90919-02266 Coil Assy, Ignition[07.2001 - 12.2002] 2AZFE..ACV20 MARK 90919-02244,(J) |
90919-02266 |
from US $88.31 |
||
|
91511B0625
|
91511B0625
91511-B0625
Bolt(For Cylinder Head Cover)
|
91511-B0625 |
— | ||
| replacement | |||||
|
91511B0625
|
91511B0625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.76 |
||
|
9008010252
|
9008010252
90080-10252
New Genuine Part
|
90080-10252 |
— | ||
