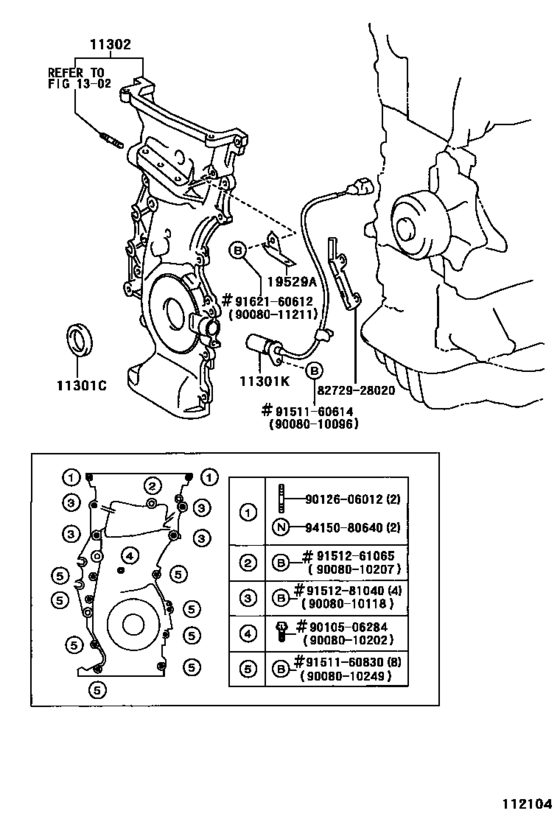

Timing Gear Cover & Rear End Plate ([07.2001 - ] (0107- )2AZFE) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CP
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301C
|
11301C
90080-31072
Seal, Oil(For Timing Gear Case Or Timing Chain Case)
[07.2001 - 12.2002] 2AZFE..ACV20 (L) |
90080-31072 |
— | ||
| replacement | |||||
|
11301C
|
11301C
90311-A0018
Seal, Oil(For Timing Chain Or Belt Cover)
[07.2001 - 12.2002] 2AZFE..ACV20 (L) |
90311-A0018 |
— | ||
|
11301C
|
11301C
90311-38078
Seal, Oil(For Timing Gear Case Or Timing Chain Case)
[07.2001 - 12.2002] 2AZFE..ACV20 (J) |
90311-38078 |
— | ||
| replacement | |||||
|
11301C
|
11301C
90311-38089 Seal, Oil(For Timing Gear Case Or Timing Chain Case)[07.2001 - 12.2002] 2AZFE..ACV20 (J) |
90311-38089 |
from US $7.17 |
||
|
11301K
|
11301K
90080-19024
Sensor, Crank Position
[07.2001 - 12.2002] 2AZFE..ACV20 (L) |
90080-19024 |
— | ||
|
11301K
|
11301K
90919-05047 Sensor, Crank Position[07.2001 - 12.2002] 2AZFE..ACV20 (J) |
90919-05047 |
from US $78.79 |
||
|
11302
|
11302
11310-0H010
Cover Sub-Assy, Timing Chain Or Belt
[07.2001 - 12.2002] 2AZFE..ACV20 (L) |
11310-0H010 |
— | ||
|
11302
|
11302
11310-28070 Cover Sub-Assy, Timing Chain Or Belt[07.2001 - 12.2002] 2AZFE..ACV20 (J) |
11310-28070 |
US $248 |
||
|
19529A
|
19529A
19529-28010 Clamp[07.2001 - 12.2002] 2AZFE..ACV20 |
19529-28010 |
US $4.22 |
||
|
8272928020
|
8272928020
82729-28020 New Genuine Part |
82729-28020 |
US $2.91 |
||
|
9008010096
|
9008010096
90080-10096
New Genuine Part
|
90080-10096 |
— | ||
| replacement | |||||
|
9008010096
|
9008010096
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
9008010118
|
9008010118
90080-10118
New Genuine Part
|
90080-10118 |
— | ||
|
9008010202
|
9008010202
90080-10202
New Genuine Part
|
90080-10202 |
— | ||
|
9008010207
|
9008010207
90080-10207
Bolt(For Transaxle & Engine Setting)
|
90080-10207 |
— | ||
|
9008010249
|
9008010249
90080-10249
New Genuine Part
|
90080-10249 |
— | ||
|
9008011211
|
9008011211
90080-11211
New Genuine Part
|
90080-11211 |
— | ||
|
9010506284
|
9010506284
90105-06284 New Genuine Part |
90105-06284 |
US $0.73 |
||
|
9012606012
|
9012606012
90126-06012 STUD, HEX LOBULAR |
90126-06012 |
from US $1.18 |
||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
9151160830
|
9151160830
91511-60830
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-60830 |
— | ||
| replacement | |||||
|
9151160830
|
9151160830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $0.80 |
||
|
9151261065
|
9151261065
91512-61065 Bolt(For Transaxle & Engine Setting) |
91512-61065 |
US $2.62 |
||
|
9151281040
|
9151281040
91512-81040 BOLTFLANGE |
91512-81040 |
US $2.04 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.72 |
||
