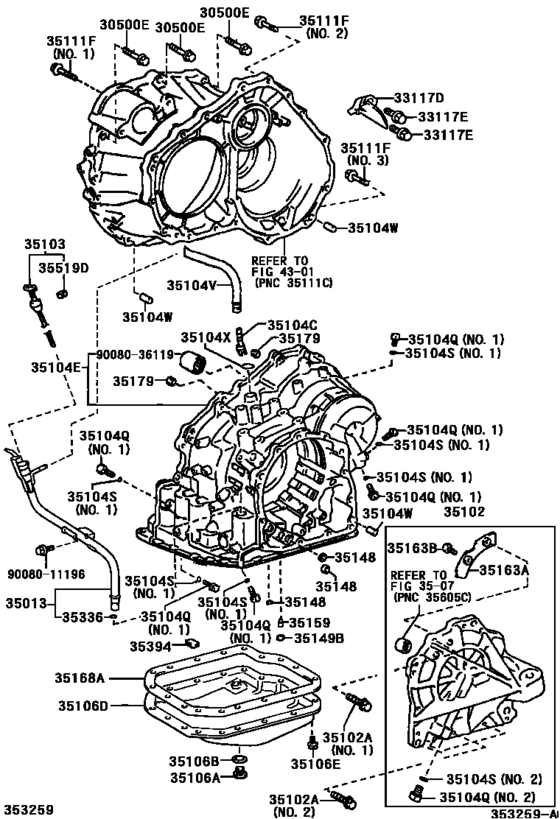

Transmission Case & Oil Pan (Atm) ([07.2001 - ] U241E (0107- )ACV20..ATM) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CP
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30500E
|
30500E
90080-11310 Bolt(For Transaxle & Engine Setting)[07.2001 - 12.2002] ACV20..ATM *12-1.25PX55-30,(L) |
90080-11310 |
US $4.08 |
||
|
30500E
|
30500E
90119-12168 Bolt(For Transaxle & Engine Setting)[07.2001 - 12.2002] ACV20..ATM *12-1.25PX55-30,(J) |
90119-12168 |
from US $1.96 |
||
|
30500E
|
30500E
91512-61050 Bolt(For Alternator)[07.2001 - 12.2002] ACV20..ATM *10-1.25PX50-30 |
91512-61050 |
US $2.15 |
||
|
30500E
|
30500E
91512-61065 Bolt(For Transaxle & Engine Setting)[07.2001 - 12.2002] ACV20..ATM *10-1.25PX65-30 |
91512-61065 |
US $2.62 |
||
|
33117D
|
33117D
33117-21010 Protector, Automatic Transmission Case[07.2001 - 12.2002] ACV20..ATM |
33117-21010 |
US $4.51 |
||
|
33117E
|
33117E
90080-10083
Bolt(For Automatic Transmission Case Protector)
[07.2001 - 12.2002] ACV20..ATM (L) |
90080-10083 |
— | ||
|
33117E
|
33117E
90105-08040
Bolt(For Plate Bolt Lock)
[07.2001 - 12.2002] ACV20..ATM (J) |
90105-08040 |
— | ||
| replacement | |||||
|
33117E
|
33117E
91641-H0820 Bolt[07.2001 - 12.2002] ACV20..ATM (J) |
91641-H0820 |
from US $0.80 |
||
|
35013
|
35013
35013-06060
Tube Sub-Assy, Transmission Oil Filler
[07.2001 - 12.2002] ACV20..ATM |
35013-06060 |
— | ||
|
35102
|
35102
35102-06020
Cover Sub-Assy, Transaxle Rear
[07.2001 - 12.2002] ACV20..ATM (L) |
35102-06020 |
— | ||
|
35102
|
35102
35102-33020 Cover Sub-Assy, Transaxle Rear[07.2001 - 12.2002] ACV20..ATM (J) |
35102-33020 |
from US $232.96 |
||
| replacements | |||||
|
35102
|
35102
35102-28020 Cover Sub-Assy, Transaxle Rear[07.2001 - 12.2002] ACV20..ATM (J) |
35102-28020 |
US $282.46 |
||
|
35102
|
35102
35102-42H00 Cover Sub-Assy, Transaxle Rear[07.2001 - 12.2002] ACV20..ATM (J) |
35102-42H00 |
US $33.49 |
||
|
35102A
|
35102A
90080-10197
Bolt (For Transaxle Rear Cover Setting)
[07.2001 - 12.2002] ACV20..ATM *8-1.25PX30-27.5,NO.1 |
90080-10197 |
— | ||
|
35102A
|
35102A
90080-10240
Bolt (For Transaxle Rear Cover Setting)
[07.2001 - 12.2002] ACV20..ATM *8-1.25PX30-27.5,NO.2 |
90080-10240 |
— | ||
| replacement | |||||
|
35102A
|
35102A
90080-10197
Bolt (For Transaxle Rear Cover Setting)
[07.2001 - 12.2002] ACV20..ATM *8-1.25PX30-27.5,NO.2 |
90080-10197 |
— | ||
|
35103
|
35103
35103-33210
Gage Sub-Assy, Transmission Oil Level
[07.2001 - 12.2002] ACV20..ATM |
35103-33210 |
— | ||
|
35104C
|
35104C
90930-03157 Plug, Breather, No.2 (Atm)[07.2001 - 12.2002] ACV20..ATM |
90930-03157 |
from US $4.66 |
||
|
35104E
|
35104E
35104-06020
Case Sub-Assy, Automatic Transaxle
[07.2001 - 12.2002] ACV20..ATM |
35104-06020 |
— | ||
|
35104Q
|
35104Q
90080-34016
Plug(For Transaxle Rear Cover)
[07.2001 - 12.2002] ACV20..ATM NO.2,(L) |
90080-34016 |
— | ||
|
35104Q
|
35104Q
90341-08001 Plug, Transaxle Case, No.1[07.2001 - 12.2002] ACV20..ATM NO.2,(J) |
90341-08001 |
from US $1.48 |
||
|
35104S
|
35104S
90080-30075
Ring, O(For Transaxle Rear Cover Pulg)
[07.2001 - 12.2002] ACV20..ATM NO.2,(L) |
90080-30075 |
— | ||
|
35104S
|
35104S
90301-06196 O Ring, Transaxle Case, No.1[07.2001 - 12.2002] ACV20..ATM NO.2,(J) |
90301-06196 |
from US $2.36 |
||
|
35104V
|
35104V
35121-33010 Hose (For Breather Plug)[07.2001 - 12.2002] ACV20..ATM |
35121-33010 |
US $13.98 |
||
|
35104W
|
35104W
90250-10017 Pin, Straight(For Clutch Housing Set)[07.2001 - 12.2002] ACV20..ATM |
90250-10017 |
from US $1.41 |
||
|
35104X
|
35104X
90301-06005 Ring, O (For Breather Plug)[07.2001 - 12.2002] ACV20..ATM |
90301-06005 |
from US $2.24 |
||
|
35106A
|
35106A
90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
90341-18016 |
from US $1.92 |
||
|
35106B
|
35106B
90430-18008 Gasket[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
35106B
|
35106B
90430-T0021 Gasket(For Manual Transmission Filler Plug)[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
90430-T0021 |
US $0.99 |
||
|
35106D
|
35106D
35106-06010
Pan Sub-Assy, Automatic Transaxle Oil
[07.2001 - 12.2002] ACV20..ATM (L) |
35106-06010 |
— | ||
|
35106D
|
35106D
35106-33030 Pan Sub-Assy, Automatic Transaxle Oil[07.2001 - 12.2002] ACV20..ATM (J) |
35106-33030 |
from US $82.56 |
||
|
35106E
|
35106E
90080-11496 Bolt (For Transaxle Oil Pan)[07.2001 - 12.2002] ACV20..ATM |
90080-11496 |
from US $0.72 |
||
|
35111F
|
35111F
90080-10182
Bolt (For Transaxle Housing & Transaxle Case Setting)
[07.2001 - 12.2002] ACV20..ATM *8-1.25PX50-30,NO.3,(L) |
90080-10182 |
— | ||
| replacement | |||||
|
35111F
|
35111F
90080-10193
Bolt (For Transaxle Housing & Transaxle Case Setting)
[07.2001 - 12.2002] ACV20..ATM *8-1.25PX50-30,NO.3,(L) |
90080-10193 |
— | ||
|
35111F
|
35111F
90080-10187
Bolt (For Transaxle Housing & Transaxle Case Setting)
[07.2001 - 12.2002] ACV20..ATM *8-1.25PX42-30,NO.1 |
90080-10187 |
— | ||
|
35111F
|
35111F
90080-10193
Bolt (For Transaxle Housing & Transaxle Case Setting)
[07.2001 - 12.2002] ACV20..ATM *8-1.25PX50-30,NO.2,(L) |
90080-10193 |
— | ||
|
35111F
|
35111F
90105-08353 Bolt(For Head To Camshaft Bearing Cap)[07.2001 - 12.2002] ACV20..ATM *8-1.25PX50-30,NO.2,3,(J) |
90105-08353 |
from US $0.89 |
||
|
35148
|
35148
35145-06010
Gasket, Governor Apply, No.1
[07.2001 - 12.2002] ACV20..ATM |
35145-06010 |
— | ||
|
35149B
|
35149B
35149-06010
Gasket, Transaxle Case 2Nd Brake
[07.2001 - 12.2002] ACV20..ATM |
35149-06010 |
— | ||
|
35159
|
35159
35159-06010
Gasket, Brake Drum
[07.2001 - 12.2002] ACV20..ATM |
35159-06010 |
— | ||
|
35163A
|
35163A
35163-06010
Plate, Transaxle Rear Cover
[07.2001 - 12.2002] ACV20..ATM (L) |
35163-06010 |
— | ||
|
35163A
|
35163A
35163-28010 Plate, Transaxle Rear Cover[07.2001 - 12.2002] ACV20..ATM (J) |
35163-28010 |
US $2.97 |
||
|
35163B
|
35163B
90080-14046
Screw, Hex Lobular(For Transaxle Rear Cover Plate)
[07.2001 - 12.2002] ACV20..ATM (L) |
90080-14046 |
— | ||
|
35163B
|
35163B
90148-60055 Screw, Hex Lobular(For Transaxle Rear Cover Plate)[07.2001 - 12.2002] ACV20..ATM (J) |
90148-60055 |
US $0.73 |
||
|
35168A
|
35168A
35168-21010
Gasket, Automatic Transaxle Oil Pan
[07.2001 - 05.2002] ACV20..ATM |
35168-21010 |
— | ||
| replacement | |||||
|
35168A
|
35168A
35168-21011 Gasket, Automatic Transaxle Oil Pan[07.2001 - 05.2002] ACV20..ATM |
35168-21011 |
from US $8.85 |
||
|
35168A
|
35168A
35168-21011 Gasket, Automatic Transaxle Oil Pan[05.2002 - 12.2002] ACV20..ATM |
35168-21011 |
from US $8.85 |
||
|
35179
|
35179
35179-06010
Gasket, Overdrive Brake
[07.2001 - 12.2002] ACV20..ATM |
35179-06010 |
— | ||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
90301-09173 |
from US $1.96 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[06.1998 - 12.2002] ACV20,SXV20..ATM |
35394-30011 |
from US $5.43 |
||
|
35519D
|
35519D
35519-20030 Label, Automatic Transmission Information[07.2001 - 12.2002] ACV20..ATM |
35519-20030 |
US $4.08 |
||
|
9008011196
|
9008011196
90080-11196
New Genuine Part
|
90080-11196 |
— | ||
|
9008036119
|
9008036119
90080-36119
New Genuine Part
|
90080-36119 |
— | ||
| replacement | |||||
|
9008036119
|
9008036119
90364-25017 New Genuine Part |
90364-25017 |
US $40.77 |
||
