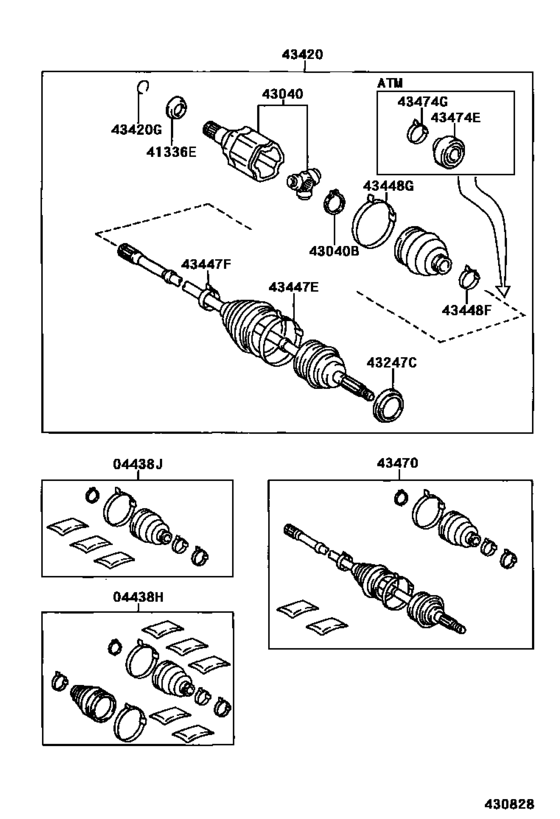

Front Drive Shaft ([07.2001 - ] LH (0107- )ACV20) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CP
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04438-06160
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[07.2001 - 12.2002] ACV20..ATM |
04438-06160 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04438-06410 Boot Kit, Front Drive Shaft, In & Outboard, LhFRONT DRIVE SHAFT, IN & OUTBOARD, LH [07.2001 - 12.2002] ACV20..ATM |
04438-06410 |
US $88.94 |
||
|
04438J
|
04438J
04438-06150
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[07.2001 - 12.2002] ACV20..ATM |
04438-06150 |
— | ||
| replacement | |||||
|
04438J
|
04438J
04438-06400 Boot Kit, Front Drive Shaft Inboard Joint, RhFRONT DRIVE SHAFT INBOARD JOINT, LH [07.2001 - 12.2002] ACV20..ATM |
04438-06400 |
US $87.36 |
||
|
41336E
|
41336E
41336-06060
Cover, Front Drive Shaft Dust, Lh
[07.2001 - 12.2002] ACV20 |
41336-06060 |
— | ||
|
43040
|
43040
43040-06080
Joint Assy, Front Drive Inboard, Lh
[07.2001 - 12.2002] ACV20 |
43040-06080 |
— | ||
|
43040B
|
43040B
90080-52118 Ring, Hole Snap (For Front Drive Inboard Joint Rh)[07.2001 - 12.2002] ACV20;MCV20..ATM |
90080-52118 |
US $1.60 |
||
|
43247C
|
43247C
43247-06010 Deflector, Front Wheel Bearing Dust, Rh No.2[11.1998 - 12.2002] ACV20;SXV20..USA W(ABS) |
43247-06010 |
US $39.31 |
||
|
43420
|
43420
43420-06261
Shaft Assy, Front Drive, Lh
[07.2001 - 03.2002] ACV20..CND; ACV20..ATM..USA W(ABS) |
43420-06261 |
— | ||
| replacement | |||||
|
43420
|
43420
43420-06262
Shaft Assy, Front Drive, Lh
[07.2001 - 03.2002] ACV20..CND; ACV20..ATM..USA W(ABS) |
43420-06262 |
— | ||
|
43420
|
43420
43420-06262
Shaft Assy, Front Drive, Lh
[03.2002 - 12.2002] ACV20..CND; ACV20..ATM..USA W(ABS) |
43420-06262 |
— | ||
|
43420G
|
43420G
90080-52017
Ring, Hole Snap (For Front Drive Shaft Lh)
[06.1998 - 07.2002] ACV20,MCV20 |
90080-52017 |
— | ||
|
43447E
|
43447E
42345-06040 Clamp (For Front Axle Outboard Joint Boot Rh)[06.1998 - 12.2002] SXV20;ACV20..ATM ID=86.4 |
42345-06040 |
US $6.41 |
||
|
43447F
|
43447F
42345-06090 Clamp (For Front Axle Outboard Joint Boot Rh)[07.2001 - 12.2002] ACV20..ATM ID=28.3 |
42345-06090 |
US $3.20 |
||
|
43448F
|
43448F
42345-07020 Clamp (For Front Axle Inboard Joint Boot Rh)[07.2001 - 12.2002] ACV20;MCV20..ATM |
42345-07020 |
US $3.49 |
||
|
43448G
|
43448G
42345-07010 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)[07.2001 - 12.2002] ACV20;MCV20..ATM |
42345-07010 |
US $5.24 |
||
|
43470
|
43470
43470-09860
Shaft Assy, Front Drive Outboard Joint, Lh
[07.2001 - 01.2002] ACV20..CND; ACV20..ATM..USA W(ABS) |
43470-09860 |
— | ||
| replacement | |||||
|
43470
|
43470
43470-09A18
Shaft Assy, Front Drive Outboard Joint, Lh
[07.2001 - 01.2002] ACV20..CND; ACV20..ATM..USA W(ABS) |
43470-09A18 |
— | ||
|
43470
|
43470
43470-09A18
Shaft Assy, Front Drive Outboard Joint, Lh
[01.2002 - 12.2002] ACV20..ATM W(ABS) |
43470-09A18 |
— | ||
|
43474E
|
43474E
43474-06011 Damper, Front Drive Shaft, RhFRONT DRIVE SHAFT, RH [07.2001 - 12.2002] ACV20..ATM |
43474-06011 |
US $44.12 |
||
|
43474G
|
43474G
42345-06100 Clamp (For Front Drive Shaft Damper Rh)[07.2001 - 12.2002] ACV20..ATM |
42345-06100 |
US $1.60 |
||
