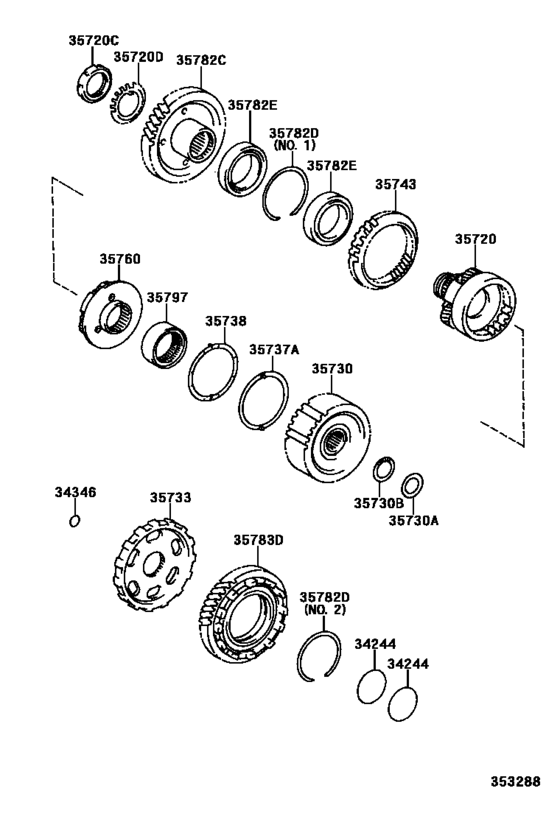

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2001 - ] U241E (0107- )ACV20..ATM) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CP
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34244
|
34244
34244-21010 Ring, Underdrive Clutch Drum Oil Seal[07.2001 - 12.2002] ACV20..ATM |
34244-21010 |
US $4.95 |
||
|
34346
|
34346
34346-21011 Ring, Underdrive Output Shaft Oil Seal[07.2001 - 12.2002] ACV20..ATM |
34346-21011 |
from US $0.87 |
||
|
35720
|
35720
35720-33030 Gear Assy, Front Planetary[07.2001 - 08.2002] ACV20..ATM |
35720-33030 |
US $646.46 |
||
| replacement | |||||
|
35720
|
35720
35720-28080 Gear Assy, Front Planetary[07.2001 - 08.2002] ACV20..ATM |
35720-28080 |
US $471.74 |
||
|
35720
|
35720
35720-44010 Gear Assy, Front Planetary[08.2002 - 12.2002] ACV20..ATM |
35720-44010 |
US $449.90 |
||
| replacement | |||||
|
35720
|
35720
35720-28080 Gear Assy, Front Planetary[08.2002 - 12.2002] ACV20..ATM |
35720-28080 |
US $471.74 |
||
|
35720C
|
35720C
90179-46001 Nut (For Front Planetary Gear)[07.2001 - 12.2002] ACV20..ATM |
90179-46001 |
US $2.91 |
||
|
35720D
|
35720D
90209-46001 Washer (For Front Planetary Gear)[07.2001 - 12.2002] ACV20..ATM |
90209-46001 |
US $1.60 |
||
|
35730
|
35730
35730-21010 Gear Assy, Rear Planetary Sun[07.2001 - 12.2002] ACV20..ATM |
35730-21010 |
US $144.14 |
||
| replacement | |||||
|
35730
|
35730
35730-28020 Gear Assy, Rear Planetary Sun[07.2001 - 12.2002] ACV20..ATM |
35730-28020 |
from US $150.26 |
||
|
35730A
|
35730A
35789-06010
Race, Thrust Bearing (For Rear Planetary Sun Gear)
[07.2001 - 12.2002] ACV20..ATM (L) |
35789-06010 |
— | ||
|
35730A
|
35730A
35789-21010 Race, Thrust Bearing (For Rear Planetary Sun Gear)[07.2001 - 12.2002] ACV20..ATM (J) |
35789-21010 |
US $15.72 |
||
|
35730B
|
35730B
90080-37003
Bearing, Thrust Needle Roller (For Rear Planerary Sun Gear)
[07.2001 - 12.2002] ACV20..ATM (L) |
90080-37003 |
— | ||
| replacement | |||||
|
35730B
|
35730B
90374-33003 Bearing, Thrust Needle Roller (For Rear Planerary Sun Gear)[07.2001 - 12.2002] ACV20..ATM (L) |
90374-33003 |
US $7.86 |
||
|
35730B
|
35730B
90374-33003 Bearing, Thrust Needle Roller (For Rear Planerary Sun Gear)[07.2001 - 12.2002] ACV20..ATM (J) |
90374-33003 |
US $7.86 |
||
|
35733
|
35733
35733-32030 Gear, Parking Lock[07.2001 - 12.2002] ACV20..ATM |
35733-32030 |
US $47.03 |
||
|
35737A
|
35737A
35737-21010 Washer, Planetary Carrier Thrust, No.1[07.2001 - 12.2002] ACV20..ATM |
35737-21010 |
US $15.43 |
||
|
35738
|
35738
35737-21010 Washer, Planetary Carrier Thrust, No.1[07.2001 - 12.2002] ACV20..ATM |
35737-21010 |
US $15.43 |
||
|
35743
|
35743
35743-21010 Gear, Front Planetary Ring[07.2001 - 12.2002] ACV20..ATM |
35743-21010 |
US $125.22 |
||
| replacement | |||||
|
35743
|
35743
35743-28010 Gear, Front Planetary Ring[07.2001 - 12.2002] ACV20..ATM |
35743-28010 |
from US $78.26 |
||
|
35760
|
35760
35760-33030 Gear Assy, Rear Planetary[07.2001 - 12.2002] ACV20..ATM |
35760-33030 |
US $211.12 |
||
| replacement | |||||
|
35760
|
35760
35760-28010 Gear Assy, Rear Planetary[07.2001 - 12.2002] ACV20..ATM |
35760-28010 |
US $177.49 |
||
|
35782C
|
35782C
35782-32031 Gear, Counter Drive[07.2001 - 12.2002] ACV20..ATM |
35782-32031 |
US $264.99 |
||
| replacement | |||||
|
35782C
|
35782C
35782-28020 Gear, Counter Drive[07.2001 - 12.2002] ACV20..ATM |
35782-28020 |
from US $240.24 |
||
|
35782D
|
35782D
90080-52128
Ring, Hole Snap(For Counter Drive Gear)
[07.2001 - 12.2002] ACV20..ATM (L),NO.1 |
90080-52128 |
— | ||
|
35782D
|
35782D
90080-52134
Ring, Hole Snap(For Counter Drive Gear)
[07.2001 - 12.2002] ACV20..ATM (L),NO.2 |
90080-52134 |
— | ||
|
35782D
|
35782D
90520-84001 Ring, Hole Snap(For Counter Drive Gear)[07.2001 - 12.2002] ACV20..ATM (J),NO.1 |
90520-84001 |
from US $3.91 |
||
|
35782D
|
35782D
90520-89002 Ring, Hole Snap(For Counter Drive Gear)[07.2001 - 06.2002] ACV20..ATM (J),NO.2 |
90520-89002 |
US $3.64 |
||
| replacement | |||||
|
35782D
|
35782D
90520-89004 Ring, Hole Snap(For Counter Drive Gear)[07.2001 - 06.2002] ACV20..ATM (J),NO.2 |
90520-89004 |
US $1.89 |
||
|
35782D
|
35782D
90520-89004 Ring, Hole Snap(For Counter Drive Gear)[06.2002 - 12.2002] ACV20..ATM (J),NO.2 |
90520-89004 |
US $1.89 |
||
|
35782E
|
35782E
90080-36121
Bearing(For Counter Drive Gear)
[07.2001 - 12.2002] ACV20..ATM |
90080-36121 |
— | ||
|
35783D
|
35783D
35783-32031 Gear, Counter Driven[07.2001 - 12.2002] ACV20..ATM |
35783-32031 |
US $139.78 |
||
| replacement | |||||
|
35783D
|
35783D
35783-28020 Gear, Counter Driven[07.2001 - 12.2002] ACV20..ATM |
35783-28020 |
from US $85.90 |
||
|
35797
|
35797
35797-21010 Race, 1 Way Clutch Inner[07.2001 - 12.2002] ACV20..ATM |
35797-21010 |
US $72.81 |
||
