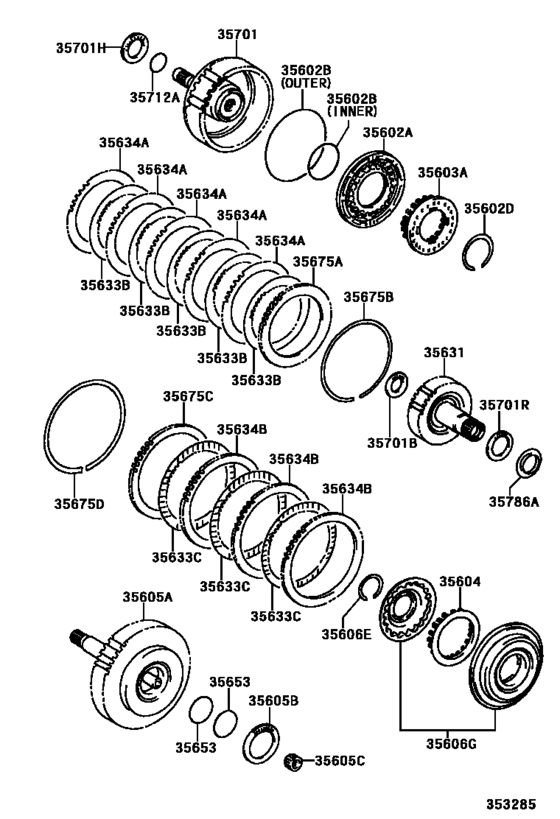

Brake Band & Multiple Disc Clutch (Atm) ([07.2001 - ] U241E (0107- )ACV20..ATM) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35602A
|
35602A
35602-06010
Piston Sub-Assy, Forward Clutch
[07.2001 - 12.2002] ACV20..ATM |
35602-06010 |
— | ||
|
35602B
|
35602B
90080-30062
Ring, O (For Forward Clutch Piston)
[07.2001 - 12.2002] ACV20..ATM OUTER |
90080-30062 |
— | ||
|
35602B
|
35602B
90080-30063
Ring, O (For Forward Clutch Piston)
[07.2001 - 12.2002] ACV20..ATM INNER |
90080-30063 |
— | ||
|
35602D
|
35602D
90080-52121
Ring, Shaft Snap(For Forward Clutch Piston Return Spring)
[07.2001 - 12.2002] ACV20..ATM |
90080-52121 |
— | ||
|
35603A
|
35603A
35603-06010
Spring Sub-Assy, Forward Clutch Return
[07.2001 - 12.2002] ACV20..ATM |
35603-06010 |
— | ||
|
35604
|
35604
35604-06010
Spring Sub-Assy, Direct Clutch Return
[07.2001 - 12.2002] ACV20..ATM |
35604-06010 |
— | ||
|
35605A
|
35605A
35605-06020
Drum Sub-Assy, Direct Clutch
[07.2001 - 12.2002] ACV20..ATM |
35605-06020 |
— | ||
|
35605B
|
35605B
90080-37002
Bearing, Thrust Needle Roller
[07.2001 - 12.2002] ACV20..ATM (L),T=3.71 |
90080-37002 |
— | ||
| replacement | |||||
|
35605B
|
35605B
90374-53002
Bearing, Thrust Needle Roller
[07.2001 - 12.2002] ACV20..ATM (L),T=3.71 |
90374-53002 |
— | ||
|
35605B
|
35605B
90080-37010
Bearing, Thrust Needle Roller
[07.2001 - 12.2002] ACV20..ATM (L),T=3.45 |
90080-37010 |
— | ||
|
35605B
|
35605B
90374-53001
Bearing, Thrust Needle Roller
[07.2001 - 12.2002] ACV20..ATM (J),T=3.40,OD=69.6 |
90374-53001 |
— | ||
| replacement | |||||
|
35605B
|
35605B
90374-53006 Bearing, Thrust Needle Roller[07.2001 - 12.2002] ACV20..ATM (J),T=3.40,OD=69.6 |
90374-53006 |
from US $13.45 |
||
|
35605B
|
35605B
90374-53002
Bearing, Thrust Needle Roller
[07.2001 - 12.2002] ACV20..ATM (J),T=3.40,OD=70.18 |
90374-53002 |
— | ||
|
35605C
|
35605C
90080-36120
Bearing, Needle Roller(For Transaxle Rear Cover)
[07.2001 - 12.2002] ACV20..ATM (L) |
90080-36120 |
— | ||
|
35605C
|
35605C
90364-18010 Bearing, Needle Roller(For Transaxle Rear Cover)[07.2001 - 12.2002] ACV20..ATM (J) |
90364-18010 |
from US $12.54 |
||
|
35606E
|
35606E
90080-52126
Ring, Shaft Snap (For Direct Clutch Piston Return Spring)
[07.2001 - 12.2002] ACV20..ATM |
90080-52126 |
— | ||
|
35606G
|
35606G
35606-06010
Piston Set, Direct Clutch
[07.2001 - 12.2002] ACV20..ATM |
35606-06010 |
— | ||
| replacement | |||||
|
35606G
|
35606G
35606-06020
Piston Set, Direct Clutch
[07.2001 - 12.2002] ACV20..ATM |
35606-06020 |
— | ||
|
35631
|
35631
35061-33010 Hub, Clutch(For Multiple Disc Clutch)[07.2001 - 12.2002] ACV20..ATM |
35061-33010 |
US $103.38 |
||
| replacement | |||||
|
35631
|
35631
35061-28010 Hub, Clutch(For Multiple Disc Clutch)[07.2001 - 12.2002] ACV20..ATM |
35061-28010 |
US $101.34 |
||
|
35633B
|
35633B
35633-06010
Disc, Clutch (For Forward Multiple Disc Clutch)
[07.2001 - 12.2002] ACV20..ATM |
35633-06010 |
— | ||
|
35633C
|
35633C
35667-06010
Disc, Clutch (For Direct Multiple Disc Clutch)
[07.2001 - 12.2002] ACV20..ATM |
35667-06010 |
— | ||
|
35634A
|
35634A
35634-06010
Plate, Clutch (For Forward Multiple Disc Clutch)
[07.2001 - 12.2002] ACV20..ATM T=1.8 |
35634-06010 |
— | ||
|
35634B
|
35634B
35647-06010
Plate, Clutch (For Direct Multiple Disc Clutch)
[07.2001 - 12.2002] ACV20..ATM T=3.0 |
35647-06010 |
— | ||
|
35653
|
35653
35653-21010 Ring, Rear Clutch Oil Seal, Outer[07.2001 - 12.2002] ACV20..ATM |
35653-21010 |
US $2.04 |
||
| replacement | |||||
|
35653
|
35653
35653-33010 Ring, Rear Clutch Oil Seal, Outer[07.2001 - 12.2002] ACV20..ATM |
35653-33010 |
from US $1.24 |
||
|
35675A
|
35675A
35635-06010
Flange, Forward Clutch
[07.2001 - 06.2002] ACV20..ATM T=3.00 |
35635-06010 |
— | ||
| replacement | |||||
|
35675A
|
35675A
35635-08010
Flange, Forward Clutch
[07.2001 - 06.2002] ACV20..ATM T=3.00 |
35635-08010 |
— | ||
|
35675A
|
35675A
35635-06020
Flange, Forward Clutch
[07.2001 - 06.2002] ACV20..ATM T=3.15 |
35635-06020 |
— | ||
| replacement | |||||
|
35675A
|
35675A
35635-08020
Flange, Forward Clutch
[07.2001 - 06.2002] ACV20..ATM T=3.15 |
35635-08020 |
— | ||
|
35675A
|
35675A
35635-06030
Flange, Forward Clutch
[07.2001 - 06.2002] ACV20..ATM T=3.30 |
35635-06030 |
— | ||
| replacement | |||||
|
35675A
|
35675A
35635-08030
Flange, Forward Clutch
[07.2001 - 06.2002] ACV20..ATM T=3.30 |
35635-08030 |
— | ||
|
35675A
|
35675A
35635-06040
Flange, Forward Clutch
[07.2001 - 06.2002] ACV20..ATM T=3.45 |
35635-06040 |
— | ||
| replacement | |||||
|
35675A
|
35675A
35635-08040
Flange, Forward Clutch
[07.2001 - 06.2002] ACV20..ATM T=3.45 |
35635-08040 |
— | ||
|
35675A
|
35675A
35635-06050
Flange, Forward Clutch
[07.2001 - 06.2002] ACV20..ATM T=3.60 |
35635-06050 |
— | ||
| replacement | |||||
|
35675A
|
35675A
35635-08050
Flange, Forward Clutch
[07.2001 - 06.2002] ACV20..ATM T=3.60 |
35635-08050 |
— | ||
|
35675A
|
35675A
35635-08010
Flange, Forward Clutch
[06.2002 - 12.2002] ACV20..ATM T=3.00 |
35635-08010 |
— | ||
|
35675A
|
35675A
35635-08020
Flange, Forward Clutch
[06.2002 - 12.2002] ACV20..ATM T=3.15 |
35635-08020 |
— | ||
|
35675A
|
35675A
35635-08030
Flange, Forward Clutch
[06.2002 - 12.2002] ACV20..ATM T=3.30 |
35635-08030 |
— | ||
|
35675A
|
35675A
35635-08040
Flange, Forward Clutch
[06.2002 - 12.2002] ACV20..ATM T=3.45 |
35635-08040 |
— | ||
|
35675A
|
35675A
35635-08050
Flange, Forward Clutch
[06.2002 - 12.2002] ACV20..ATM T=3.60 |
35635-08050 |
— | ||
|
35675B
|
35675B
90080-52122
Ring, Hole Snap (For Forward Clutch Flange)
[07.2001 - 12.2002] ACV20..ATM |
90080-52122 |
— | ||
|
35675C
|
35675C
35675-06010
Flange, Direct Clutch
[07.2001 - 12.2002] ACV20..ATM T=3.0 |
35675-06010 |
— | ||
| replacement | |||||
|
35675C
|
35675C
35675-08010
Flange, Direct Clutch
[07.2001 - 12.2002] ACV20..ATM T=3.0 |
35675-08010 |
— | ||
|
35675C
|
35675C
35675-06020
Flange, Direct Clutch
[07.2001 - 12.2002] ACV20..ATM T=3.1 |
35675-06020 |
— | ||
| replacement | |||||
|
35675C
|
35675C
35675-08020
Flange, Direct Clutch
[07.2001 - 12.2002] ACV20..ATM T=3.1 |
35675-08020 |
— | ||
|
35675C
|
35675C
35675-06030
Flange, Direct Clutch
[07.2001 - 12.2002] ACV20..ATM T=3.2 |
35675-06030 |
— | ||
| replacement | |||||
|
35675C
|
35675C
35675-08030
Flange, Direct Clutch
[07.2001 - 12.2002] ACV20..ATM T=3.2 |
35675-08030 |
— | ||
|
35675C
|
35675C
35675-06040
Flange, Direct Clutch
[07.2001 - 12.2002] ACV20..ATM T=3.3 |
35675-06040 |
— | ||
| replacement | |||||
|
35675C
|
35675C
35675-08040
Flange, Direct Clutch
[07.2001 - 12.2002] ACV20..ATM T=3.3 |
35675-08040 |
— | ||
|
35675C
|
35675C
35675-06050
Flange, Direct Clutch
[07.2001 - 12.2002] ACV20..ATM T=3.4 |
35675-06050 |
— | ||
| replacement | |||||
|
35675C
|
35675C
35675-08050
Flange, Direct Clutch
[07.2001 - 12.2002] ACV20..ATM T=3.4 |
35675-08050 |
— | ||
|
35675C
|
35675C
35675-06060
Flange, Direct Clutch
[07.2001 - 12.2002] ACV20..ATM T=3.5 |
35675-06060 |
— | ||
| replacement | |||||
|
35675C
|
35675C
35675-08060
Flange, Direct Clutch
[07.2001 - 12.2002] ACV20..ATM T=3.5 |
35675-08060 |
— | ||
|
35675D
|
35675D
90080-52125
Ring, Hole Snap (For Direct Clutch Flange)
[07.2001 - 12.2002] ACV20..ATM |
90080-52125 |
— | ||
|
35701
|
35701
35701-06020
Shaft Sub-Assy, Input
[07.2001 - 12.2002] ACV20..ATM |
35701-06020 |
— | ||
|
35701B
|
35701B
90080-37006
Bearing, Thrust Needle Roller (For Input Shaft Rear)
[07.2001 - 12.2002] ACV20..ATM (L) |
90080-37006 |
— | ||
|
35701B
|
35701B
90374-23002 Bearing, Thrust Needle Roller (For Input Shaft Rear)[07.2001 - 12.2002] ACV20..ATM (J) |
90374-23002 |
US $17.18 |
||
|
35701H
|
35701H
90080-37005
Bearing, Thrust Needle Roller (For Input Shaft)
[07.2001 - 12.2002] ACV20..ATM OD=52.05,(L),OD=52.05 |
90080-37005 |
— | ||
|
35701H
|
35701H
90374-34005
Bearing, Thrust Needle Roller (For Input Shaft)
[07.2001 - 12.2002] ACV20..ATM OD=52.2,(J),OD=52.2 |
90374-34005 |
— | ||
|
35701R
|
35701R
90080-37008
Bearing, Thrust Needle Roller
[07.2001 - 12.2002] ACV20..ATM (L) |
90080-37008 |
— | ||
|
35701R
|
35701R
90374-37005 Bearing, Thrust Needle Roller[07.2001 - 12.2002] ACV20..ATM (J) |
90374-37005 |
US $8.04 |
||
|
35712A
|
35712A
35712-21010 Ring, Input Shaft Oil Seal[07.2001 - 12.2002] ACV20..ATM |
35712-21010 |
US $8.21 |
||
|
35786A
|
35786A
35786-06010
Race, Thrust Bearing, No.1
[07.2001 - 12.2002] ACV20..ATM (L) |
35786-06010 |
— | ||
|
35786A
|
35786A
35786-21010 Race, Thrust Bearing, No.1[07.2001 - 12.2002] ACV20..ATM (J) |
35786-21010 |
US $6.55 |
||
