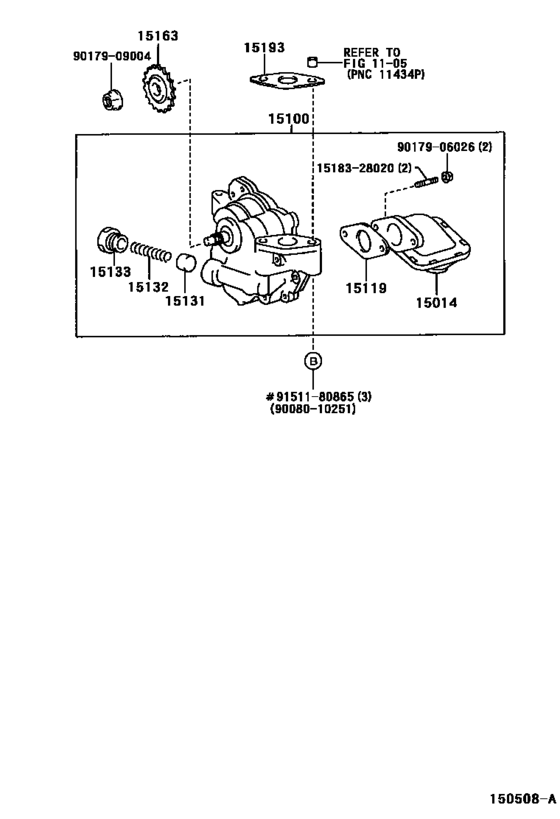

Engine Oil Pump ([07.2001 - ] (0107- )2AZFE) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15014
|
15014
15014-0H010
Strainer Set, Oil Pump
[07.2001 - 12.2002] 2AZFE..ACV20 ENGINE NO.=7XXXXXX-9XXXXXX |
15014-0H010 |
— | ||
|
15014
|
15014
15014-28020 Strainer Set, Oil Pump[07.2001 - 12.2002] 2AZFE..ACV20 ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX |
15014-28020 |
from US $14.90 |
||
|
15100
|
15100
15100-0H010
Pump Assy, Oil
[07.2001 - 12.2002] 2AZFE..ACV20 ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX |
15100-0H010 |
— | ||
|
15100
|
15100
15100-28020 Pump Assy, Oil[07.2001 - 12.2002] 2AZFE..ACV20 ENGINE NO.=7XXXXXX-9XXXXXX |
15100-28020 |
from US $78.13 |
||
|
15119
|
15119
15119-0H010
Gasket, Oil Pump Cover
[07.2001 - 12.2002] 2AZFE..ACV20 ENGINE NO.=7XXXXXX-9XXXXXX |
15119-0H010 |
— | ||
|
15119
|
15119
15119-28020 Gasket, Oil Pump Cover[07.2001 - 12.2002] 2AZFE..ACV20 ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX |
15119-28020 |
from US $4.09 |
||
|
15131
|
15131
15131-46040 Valve, Oil Pump Relief[07.2001 - 12.2002] 2AZFE..ACV20 |
15131-46040 |
from US $2.87 |
||
|
15132
|
15132
15132-0H010
Spring, Oil Pump Relief Valve
[07.2001 - 12.2002] 2AZFE..ACV20 ENGINE NO.=7XXXXXX-9XXXXXX |
15132-0H010 |
— | ||
|
15132
|
15132
15132-28020 Spring, Oil Pump Relief Valve[07.2001 - 12.2002] 2AZFE..ACV20 ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX |
15132-28020 |
US $3.93 |
||
|
15133
|
15133
15133-0H010
Plug, Oil Pump Relief Valve
[07.2001 - 12.2002] 2AZFE..ACV20 ENGINE NO.=7XXXXXX-9XXXXXX |
15133-0H010 |
— | ||
|
15133
|
15133
15133-28020 Plug, Oil Pump Relief Valve[07.2001 - 12.2002] 2AZFE..ACV20 ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX |
15133-28020 |
from US $2.19 |
||
|
15163
|
15163
15163-0H010
Gear, Oil Pump Drive Shaft
[07.2001 - 12.2002] 2AZFE..ACV20 (L) |
15163-0H010 |
— | ||
|
15163
|
15163
15163-28010 Gear, Oil Pump Drive Shaft[07.2001 - 12.2002] 2AZFE..ACV20 (J) |
15163-28010 |
from US $3.59 |
||
|
15193
|
15193
15193-0H010
Gasket, Oil Pump
[07.2001 - 12.2002] 2AZFE..ACV20 (L) |
15193-0H010 |
— | ||
|
15193
|
15193
15193-28010 Gasket, Oil Pump[07.2001 - 12.2002] 2AZFE..ACV20 (J) |
15193-28010 |
from US $4.88 |
||
|
1518328020
|
1518328020
15183-28020 Bolt,stud(For Oil Pump) |
15183-28020 |
US $5.02 |
||
|
9008010251
|
9008010251
90080-10251
New Genuine Part
|
90080-10251 |
— | ||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017909004
|
9017909004
90179-09004 NUT |
90179-09004 |
from US $1.01 |
||
|
9151180865
|
9151180865
91511-80865 Bolt(For Cylinder Head Set Sub) |
91511-80865 |
US $0.87 |
||
