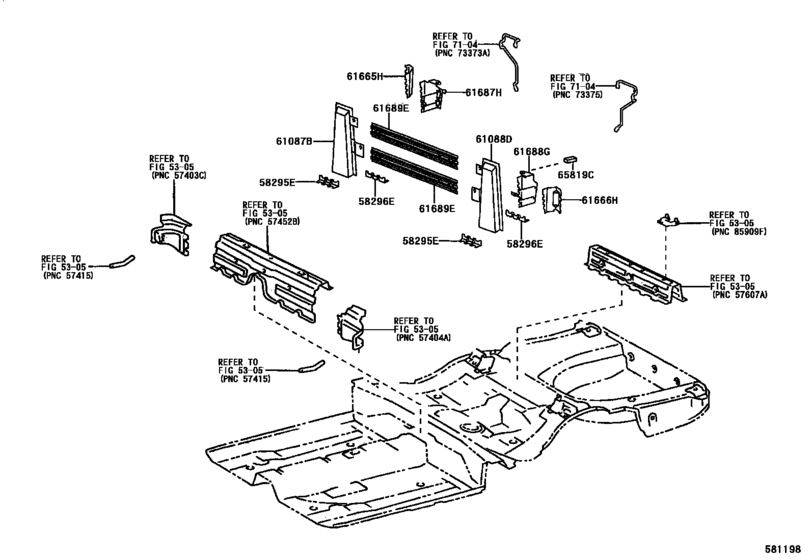

Floor Pan & Lower Back Panel ([02.2000 - ] (0002- )CVT) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58295E
|
58295E
58295-AA010
Base, Belt Anchor To Floor Pan, No.4 Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
58295-AA010 |
— | ||
|
58296E
|
58296E
58296-AA010
Base, Belt Anchor To Floor Pan, No.4 Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
58296-AA010 |
— | ||
|
61087B
|
61087B
61087-AA010
Brace Sub-Assy, Rear Seat Back Side Mounting, Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
61087-AA010 |
— | ||
|
61088D
|
61088D
61088-AA010
Brace Sub-Assy, Rear Seat Back Side Mounting, Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
61088-AA010 |
— | ||
|
61665H
|
61665H
61665-AA010
Plate, Seat Belt Anchorage, Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
61665-AA010 |
— | ||
|
61666H
|
61666H
61666-AA010
Plate, Seat Belt Anchorage, Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
61666-AA010 |
— | ||
|
61687H
|
61687H
61687-AA010
Bracket, Rear Seat Back Side Mounting, No.1 Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
61687-AA010 |
— | ||
|
61688G
|
61688G
61688-AA010
Bracket, Rear Seat Back Side Mounting, No.1 Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
61688-AA010 |
— | ||
|
61689E
|
61689E
61689-AA010
Reinforcement, Rear Seat Back Side Mounting Brace
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
61689-AA010 |
— | ||
|
65819C
|
65819C
65819-AA010
Stopper, Top Cover Tarpaulin Bow
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
65819-AA010 |
— |
