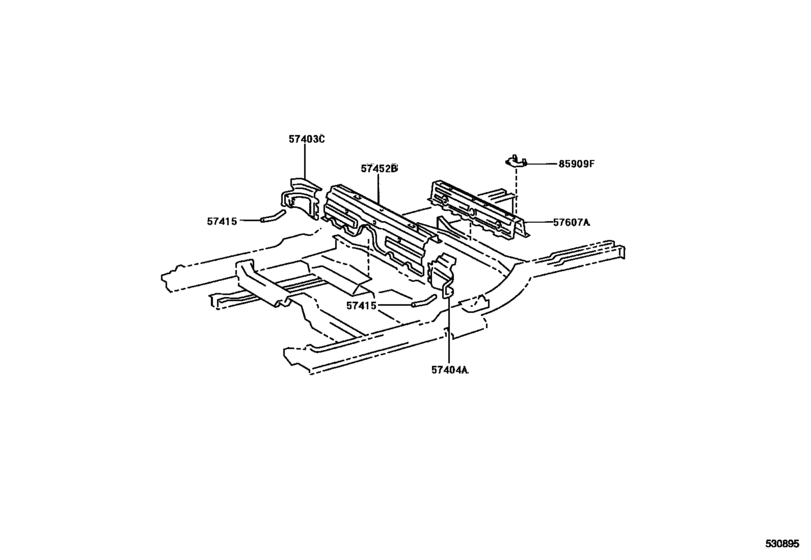

Floor Side Member ([02.2000 - ] (0002- )CVT) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57403C
|
57403C
57403-33020 Reinforce Sub-Assy, Floor Side, Inner RhFLOOR SIDE, INNER RH [02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
57403-33020 |
US $70.91 |
||
|
57404A
|
57404A
57404-33020 Reinforce Sub-Assy, Floor Side, Inner LhFLOOR SIDE, INNER LH [02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
57404-33020 |
US $70.91 |
||
|
57415
|
57415
57415-33020 Rail, Floor Side, Rear RhFLOOR SIDE, REAR RH [02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
57415-33020 |
US $9.61 |
||
|
57452B
|
57452B
57452-33010 Member, Front Floor Cross, No.2FRONT FLOOR CROSS, NO.2 [02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
57452-33010 |
US $144.14 |
||
|
57607A
|
57607A
57607-33010 Member Sub-Assy, Rear Floor Cross, No.3REAR FLOOR CROSS, NO.3 [02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
57607-33010 |
US $285.38 |
||
|
85909F
|
85909F
85909-AA010
Bracket Sub-Assy, Relay
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
85909-AA010 |
— |
