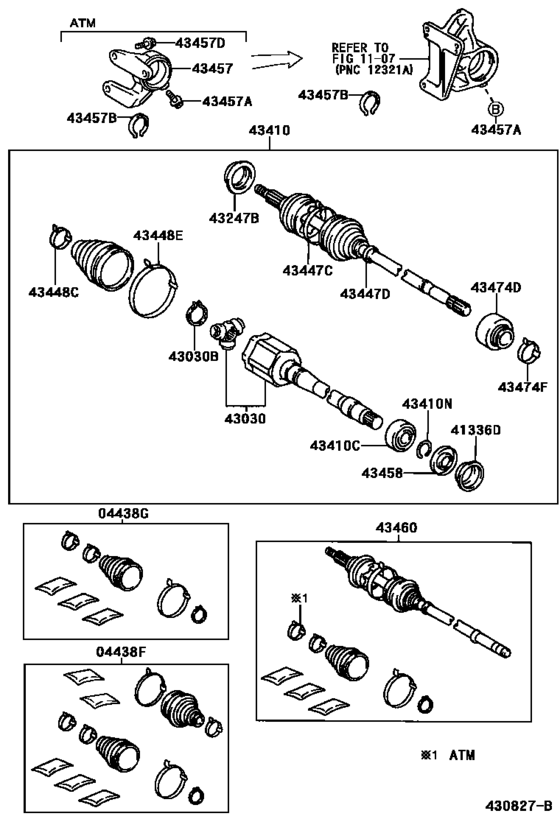

Front Drive Shaft ([07.2001 - ] RH (0107- )ACV20) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-06160
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[07.2001 - 12.2002] ACV20..ATM |
04438-06160 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04438-06410 Boot Kit, Front Drive Shaft, In & Outboard, LhFRONT DRIVE SHAFT, IN & OUTBOARD, LH [07.2001 - 12.2002] ACV20..ATM |
04438-06410 |
US $88.94 |
||
|
04438G
|
04438G
04438-06150
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[07.2001 - 12.2002] ACV20..ATM |
04438-06150 |
— | ||
| replacement | |||||
|
04438G
|
04438G
04438-06400 Boot Kit, Front Drive Shaft Inboard Joint, RhFRONT DRIVE SHAFT INBOARD JOINT, LH [07.2001 - 12.2002] ACV20..ATM |
04438-06400 |
US $87.36 |
||
|
41336D
|
41336D
41336-06020 Cover, Front Drive Shaft Dust, Rh[06.1998 - 07.2002] ACV20,MCV20 |
41336-06020 |
from US $11.53 |
||
|
43030
|
43030
43030-06070
Joint Assy, Front Drive Inboard, Rh
[07.2001 - 12.2002] ACV20 |
43030-06070 |
— | ||
|
43030B
|
43030B
90080-52118 Ring, Hole Snap (For Front Drive Inboard Joint Rh)[07.2001 - 12.2002] ACV20;MCV20..ATM |
90080-52118 |
US $1.60 |
||
|
43247B
|
43247B
43247-06010 Deflector, Front Wheel Bearing Dust, Rh No.2[11.1998 - 12.2002] ACV20;SXV20..USA W(ABS) |
43247-06010 |
US $39.31 |
||
|
43247B
|
43247B
43247-06020
Deflector, Front Wheel Bearing Dust, Rh No.2
[11.1998 - 12.2002] ACV20,SXV20..USA |
43247-06020 |
— | ||
|
43410
|
43410
43410-06251
Shaft Assy, Front Drive, Rh
[07.2001 - 03.2002] ACV20..ATM..USA |
43410-06251 |
— | ||
| replacement | |||||
|
43410
|
43410
43410-06252
Shaft Assy, Front Drive, Rh
[07.2001 - 03.2002] ACV20..ATM..USA |
43410-06252 |
— | ||
|
43410
|
43410
43410-06252
Shaft Assy, Front Drive, Rh
[03.2002 - 12.2002] ACV20..ATM..USA |
43410-06252 |
— | ||
|
43410
|
43410
43410-06261
Shaft Assy, Front Drive, Rh
[07.2001 - 03.2002] ACV20..CND; ACV20..ATM..USA W(ABS) |
43410-06261 |
— | ||
| replacement | |||||
|
43410
|
43410
43410-06262
Shaft Assy, Front Drive, Rh
[07.2001 - 03.2002] ACV20..CND; ACV20..ATM..USA W(ABS) |
43410-06262 |
— | ||
|
43410
|
43410
43410-06262
Shaft Assy, Front Drive, Rh
[03.2002 - 12.2002] ACV20..CND; ACV20..ATM..USA W(ABS) |
43410-06262 |
— | ||
|
43410C
|
43410C
90080-36133 Bearing (For Front Drive Shaft)[07.2001 - 12.2002] ACV20;MCV20..ATM |
90080-36133 |
from US $25.78 |
||
|
43410N
|
43410N
90080-52013
Ring, Hole Snap (For Front Drive Shaft Rh)
[06.1998 - 07.2002] ACV20,MCV20 |
90080-52013 |
— | ||
|
43447C
|
43447C
42345-06040 Clamp (For Front Axle Outboard Joint Boot Rh)[06.1998 - 12.2002] SXV20;ACV20..ATM ID=86.4 |
42345-06040 |
US $6.41 |
||
|
43447D
|
43447D
42345-06090 Clamp (For Front Axle Outboard Joint Boot Rh)[07.2001 - 12.2002] ACV20..ATM ID=28.3 |
42345-06090 |
US $3.20 |
||
|
43448C
|
43448C
42345-07020 Clamp (For Front Axle Inboard Joint Boot Rh)[07.2001 - 12.2002] ACV20;MCV20..ATM |
42345-07020 |
US $3.49 |
||
|
43448E
|
43448E
42345-07010 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)[07.2001 - 12.2002] ACV20;MCV20..ATM |
42345-07010 |
US $5.24 |
||
|
43457
|
43457
43457-33020 Bracket, Drive Shaft Bearing[07.2001 - 12.2002] ACV20..ATM |
43457-33020 |
from US $57.51 |
||
|
43457A
|
43457A
90119-10461 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[06.1998 - 07.2002] ACV20,MCV20,SXV20 *10-1.25PX19.8-8.3 |
90119-10461 |
from US $1.08 |
||
|
43457B
|
43457B
90521-78002 Ring, Hole Snap(For Rear Drive Shaft)[06.1998 - 07.2002] ACV20,MCV20 |
90521-78002 |
from US $2.26 |
||
|
43457D
|
43457D
90080-10087
Bolt(For Drive Shaft Bearring Bracket Setting No.2)
[07.2001 - 12.2002] ACV20..ATM |
90080-10087 |
— | ||
|
43458
|
43458
43458-06020 Cover, Front Drive Shaft Dust[06.1998 - 07.2002] ACV20,MCV20 |
43458-06020 |
US $11.65 |
||
|
43460
|
43460
43460-09630
Shaft Assy, Front Drive Outboard Joint, Rh
[07.2001 - 03.2002] ACV20..CND; ACV20..ATM..USA W(ABS) |
43460-09630 |
— | ||
| replacement | |||||
|
43460
|
43460
43460-09860
Shaft Assy, Front Drive Outboard Joint, Rh
[07.2001 - 03.2002] ACV20..CND; ACV20..ATM..USA W(ABS) |
43460-09860 |
— | ||
|
43460
|
43460
43460-09640
Shaft Assy, Front Drive Outboard Joint, Rh
[07.2001 - 03.2002] ACV20..ATM..USA |
43460-09640 |
— | ||
| replacement | |||||
|
43460
|
43460
43460-09850
Shaft Assy, Front Drive Outboard Joint, Rh
[07.2001 - 03.2002] ACV20..ATM..USA |
43460-09850 |
— | ||
|
43460
|
43460
43460-09850
Shaft Assy, Front Drive Outboard Joint, Rh
[03.2002 - 12.2002] ACV20..ATM..USA |
43460-09850 |
— | ||
|
43460
|
43460
43460-09860
Shaft Assy, Front Drive Outboard Joint, Rh
[03.2002 - 12.2002] ACV20..ATM W(ABS) |
43460-09860 |
— | ||
|
43474D
|
43474D
43474-06011 Damper, Front Drive Shaft, RhFRONT DRIVE SHAFT, RH [07.2001 - 12.2002] ACV20 |
43474-06011 |
US $44.12 |
||
|
43474F
|
43474F
42345-06100 Clamp (For Front Drive Shaft Damper Rh)[07.2001 - 12.2002] ACV20 |
42345-06100 |
US $1.60 |
||
