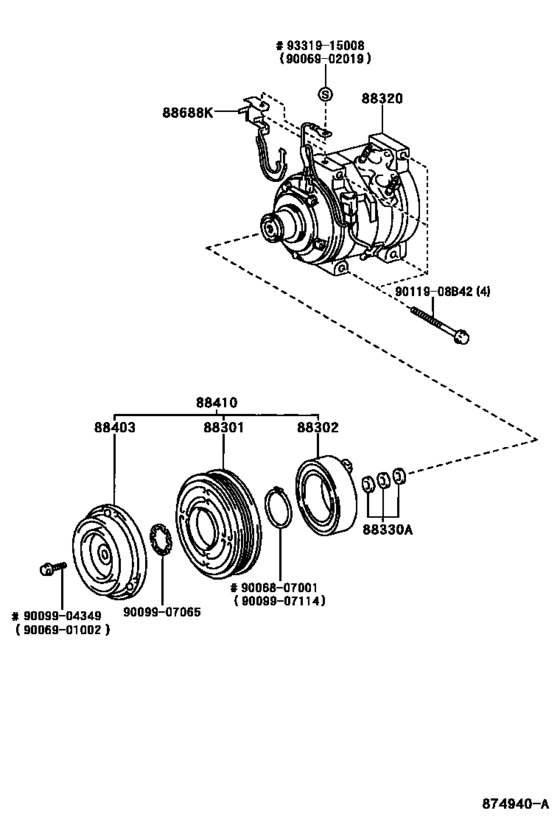

Heating & Air Conditioning - Compressor ([07.2001 - ] (0107- )ACV20) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-42010
Rotor Sub-Assy, Magnet Clutch
[07.2001 - 12.2002] ACV20 |
88412-42010 |
— | ||
|
88302
|
88302
88411-06050
Stator Sub-Assy, Magnet Clutch
[07.2001 - 12.2002] ACV20 |
88411-06050 |
— | ||
|
88320
|
88320
88320-06080
Compressor Assy, Cooler
[07.2001 - 12.2002] ACV20 |
88320-06080 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
88335-14020 |
from US $1.24 |
||
|
88403
|
88403
88403-32010
Hub Sub-Assy, Magnet Clutch
[07.2001 - 12.2002] ACV20 |
88403-32010 |
— | ||
|
88410
|
88410
88410-06080
Clutch Assy, Magnet
[07.2001 - 12.2002] ACV20 |
88410-06080 |
— | ||
|
88688K
|
88688K
88688-48070
Bracket, Cooler Compressor
[07.2001 - 12.2002] ACV20 |
88688-48070 |
— | ||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.12 |
||
|
9006807001
|
9006807001
90068-07001 New Genuine Part |
90068-07001 |
US $3.93 |
||
|
9006901002
|
9006901002
90069-01002 New Genuine Part |
90069-01002 |
US $1.31 |
||
|
9006902019
|
9006902019
90069-02019 New Genuine Part |
90069-02019 |
US $1.60 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.10 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.03 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
