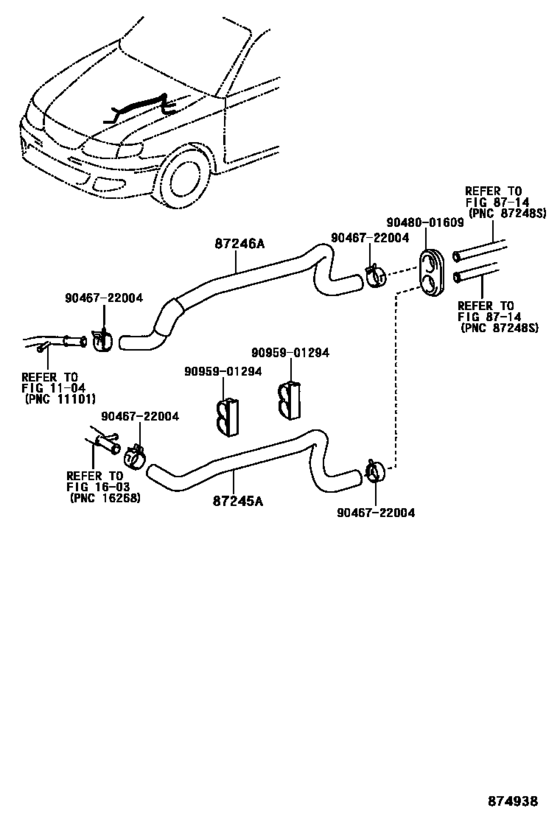

Heating & Air Conditioning - Water Piping ([07.2001 - ] (0107- )ACV20) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245A
|
87245A
87245-06180
Hose, Heater Water, Inlet A
[07.2001 - 12.2002] ACV20 |
87245-06180 |
— | ||
|
87246A
|
87246A
87245-06190
Hose, Heater Water, Outlet A
[07.2001 - 12.2002] ACV20 |
87245-06190 |
— | ||
|
9046722004
|
9046722004
90467-22004
Clip(For Ventilation Hose No.2)
|
90467-22004 |
— | ||
| replacement | |||||
|
9046722004
|
9046722004
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.43 |
||
|
9048001609
|
9048001609
90480-01609 New Genuine Part |
90480-01609 |
US $3.93 |
||
|
9095901294
|
9095901294
90959-01294
New Genuine Part
|
90959-01294 |
— | ||
